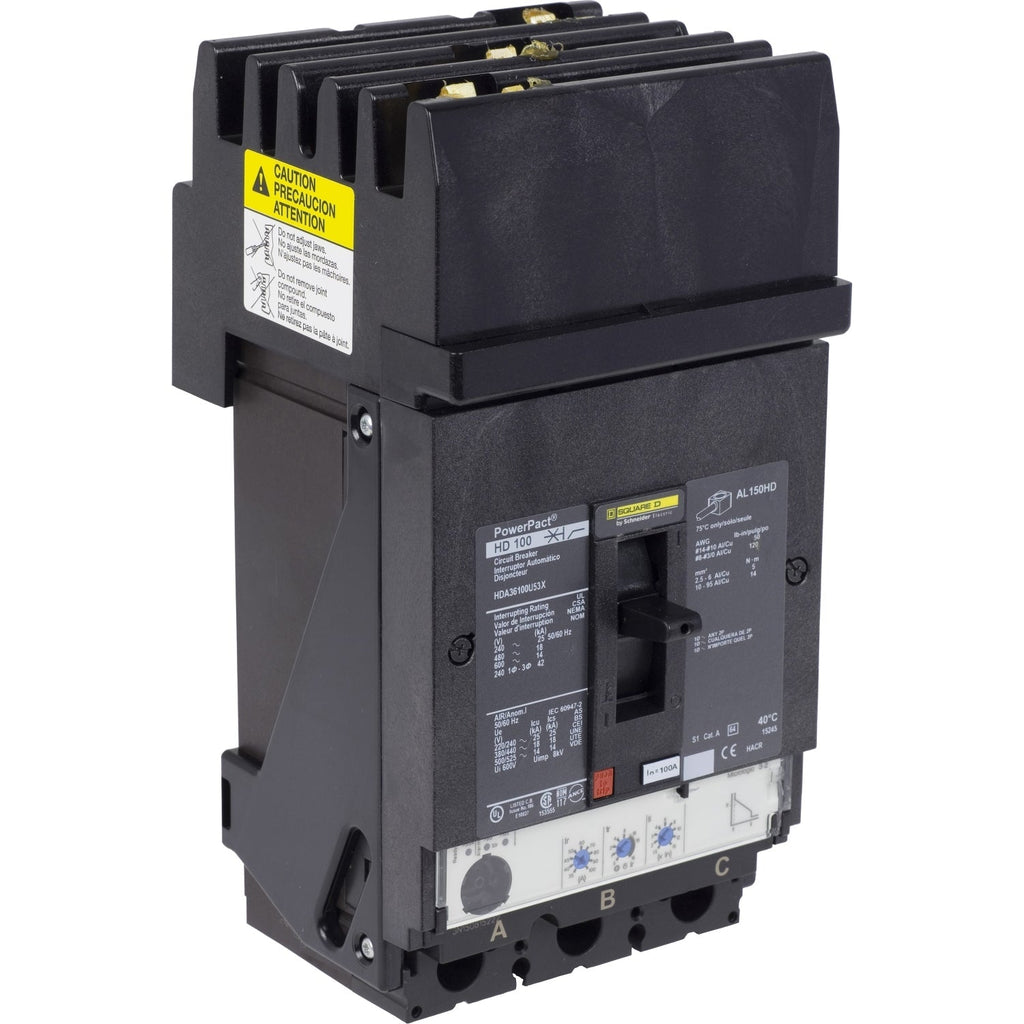

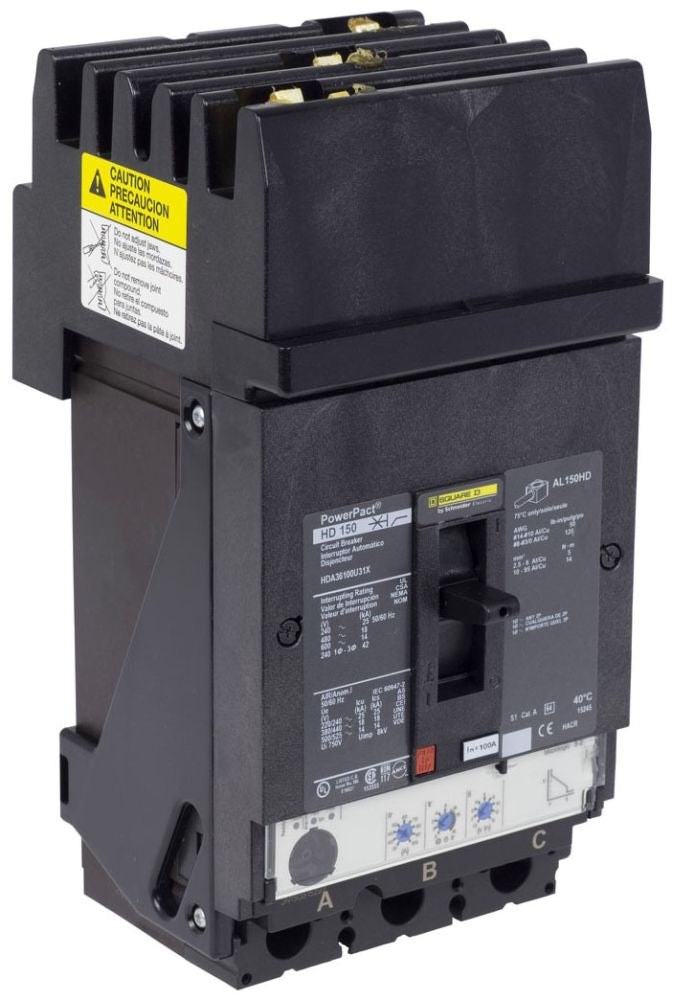

HDA36100U53X - Schneider Electric 100A 600V 3-Pole I-Line Style Plug-In Circuit Breaker

HDA36100U53X

HDA36100U53X is a Schneider Electric 3-pole circuit breaker rated for 100 amps and 600 volts with I-Line style plug-in mounting.This circuit breaker features an 18kA interrupting rating at 480V, designed for reliable protection in commercial and industrial power distribution systems. It includes thermal-magnetic trip units with long-time, short-time, and instantaneous protection functions, suitable for PowerPact H series applications.

• Amperage: 100A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 18kA at 480V
• Series/Frame: PowerPact H / HDA Type
• Trip Unit: Thermal-Magnetic (LSI - Long-Time, Short-Time, Instantaneous)
• Certifications: UL Listed, CSA Certified
• Connection: Plug-In
• Application: Molded Case Circuit Breaker for Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36100U53X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 60648628237
• GTIN : 03606486282373
• Country of Origin : United States

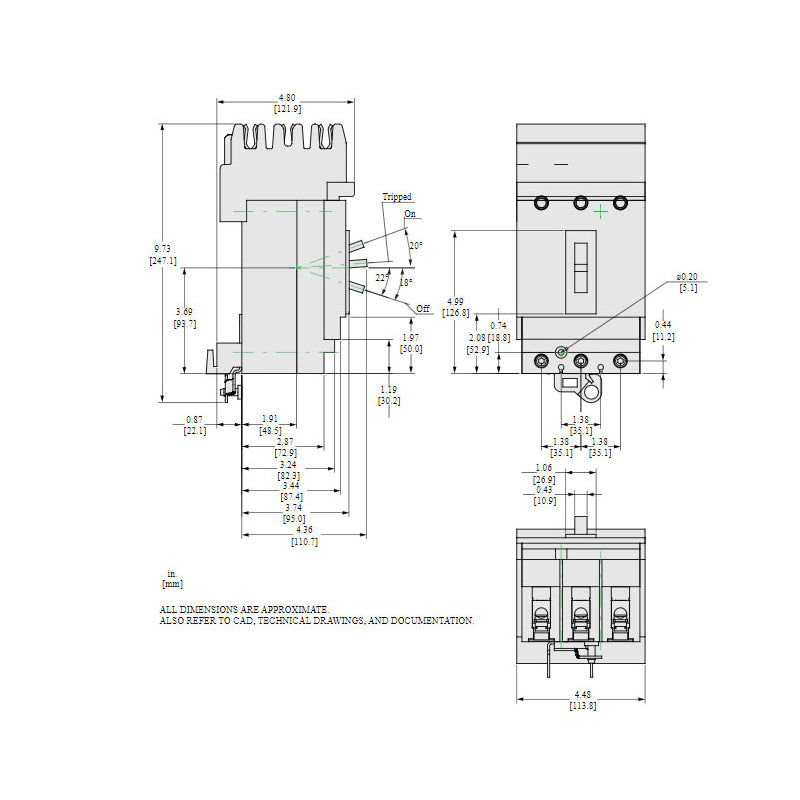

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
