HDA36090SR - Square D PowerPact H 90A 3-Pole 600VAC I-Line Circuit Breaker

HDA36090SR

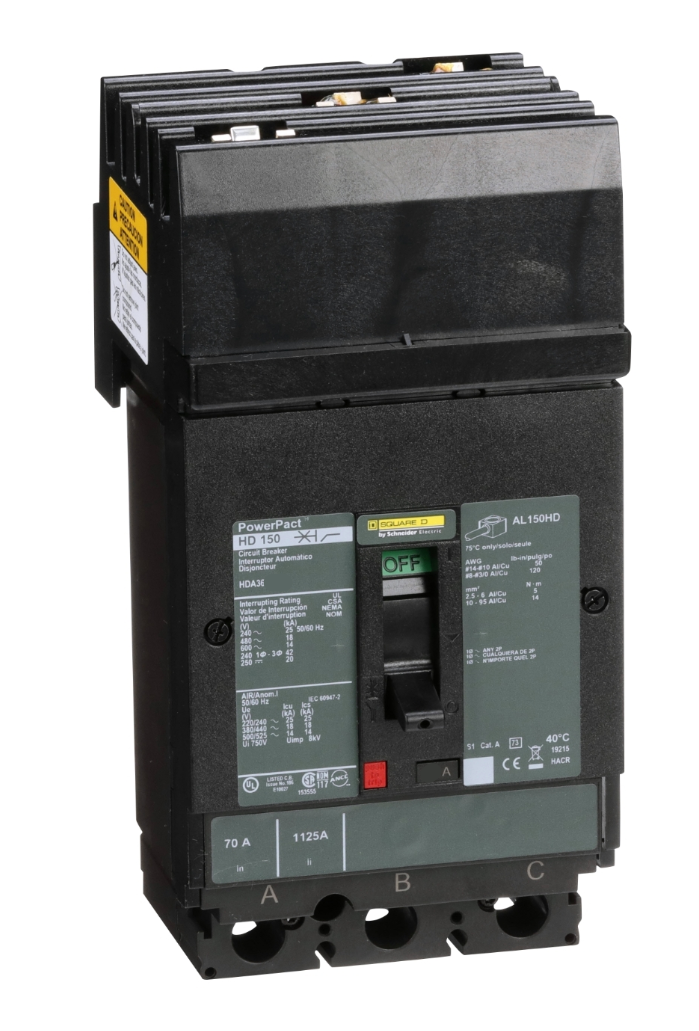

HDA36090SR is a Square D PowerPact H-frame molded case circuit breaker designed for industrial and commercial electrical distribution systems. This 90-ampere, 3-pole breaker operates at 600VAC and features I-Line plug-on mounting for compatibility with Class 612 I-Line panelboards and switchboards. The breaker provides thermal-magnetic trip protection with long-time and instantaneous functions, delivering an interrupt rating of 18kA at 480VAC and 14kA at 600VAC. It accommodates wire sizes from 14 AWG to 3/0 AWG (aluminum or copper) and is rated for 80% continuous current operation with an adjustable magnetic hold current range of 800-1450A.

• Manufacturer: Square D (Schneider Electric)
• Amperage Rating: 90A
• Voltage Rating: 600VAC
• Number of Poles: 3
• Frame Type: HDA (H-Frame)
• Mounting: I-Line Plug-On
• Trip Unit: Thermal-Magnetic with LI (Long-Time and Instantaneous) functions
• Interrupt Rating: 18kA @ 480VAC, 14kA @ 600VAC
• Wire Size: 14 AWG to 3/0 AWG (Aluminum/Copper)
• Certifications: UL 489 Listed, CSA, NEMA, VDE, BS, CCC, IEC, CE marked
• Continuous Current Rating: 80%
• Magnetic Adjustment Range: 800-1450A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 125Vdc shunt trip

Specifications

• Part Number: HDA36090SR
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Weight : 6
