HDA36090SJ - Square D PowerPact H 90A 3-Pole 600V I-Line Thermal Magnetic

HDA36090SJ

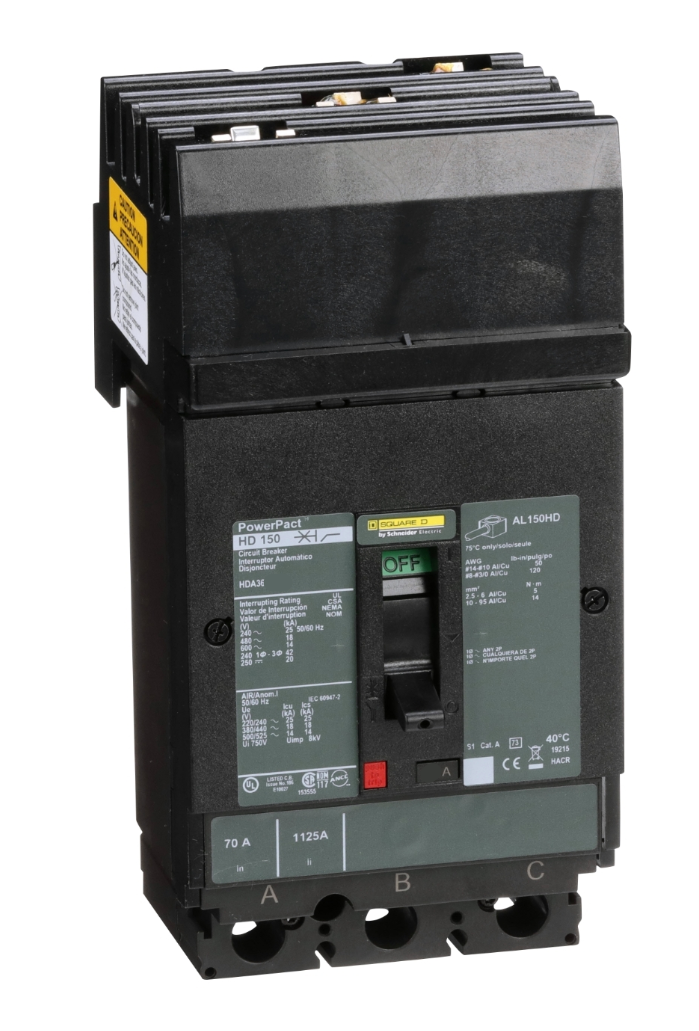

HDA36090SJ is a 90-ampere, 3-pole, 600-volt molded case circuit breaker from Square D's PowerPact family, designed for I-Line style plug-in mounting in power distribution applications. This thermal magnetic circuit breaker features an 18kA interrupting capacity at 480V, long-time and instantaneous trip functions, and an 80% continuous current rating suitable for Class 611/612 I-Line panelboards and switchboards. The breaker incorporates H-frame construction with toggle control and field-installable accessories for flexible deployment in industrial and commercial electrical systems.

• Amperage Rating: 90A
• Voltage Rating: 600VAC, 50/60 Hertz
• Poles: 3
• Frame Type: HDA (H-Frame)
• Mounting: I-Line Style Plug-In
• Interrupting Capacity: 18kA at 480V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Continuous Current Rating: 80%
• Trip Setting Range: 800 to 1450 Amperes
• Certifications: UL 489, CSA, NEMA, CE marked
• Connection: I-Line bracket with line/load lugs
• Control Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 525/600Vac shunt trip

Specifications

• Part Number: HDA36090SJ
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Weight : 6
