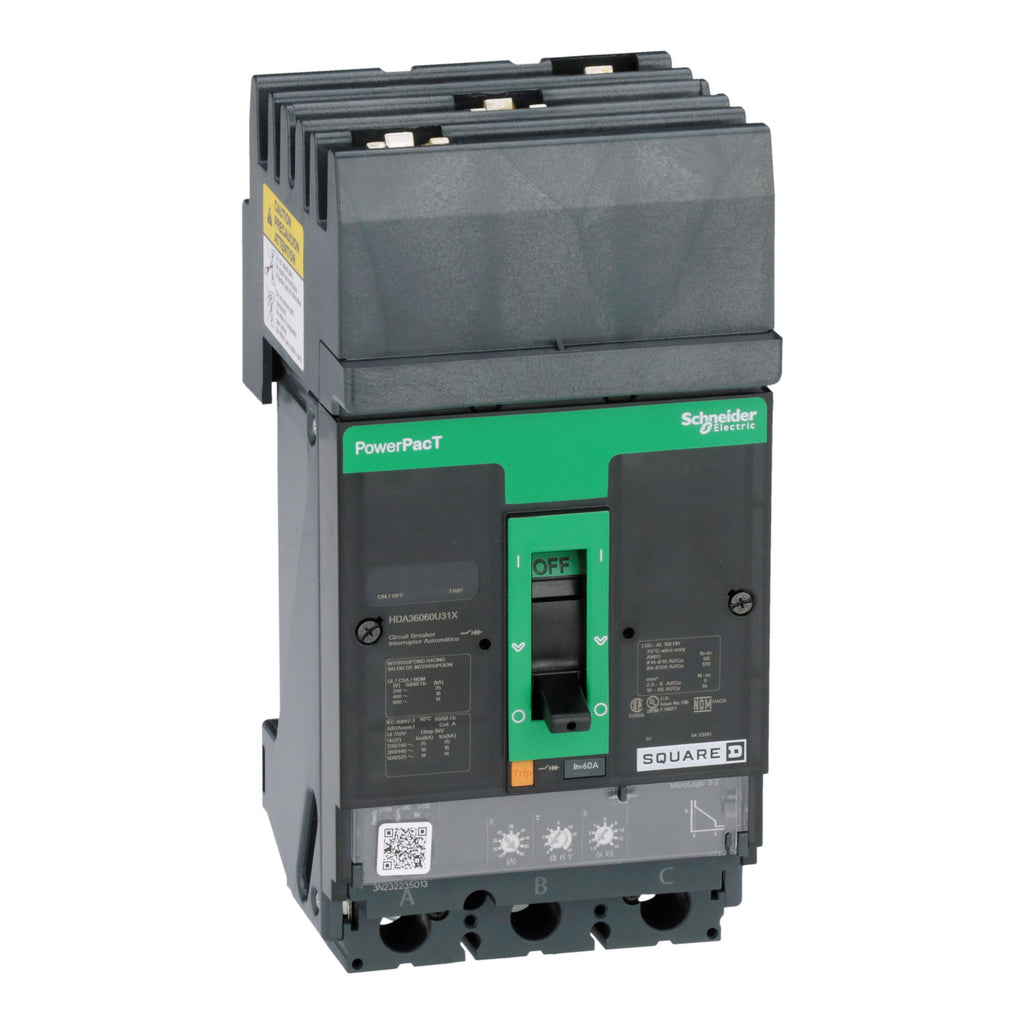

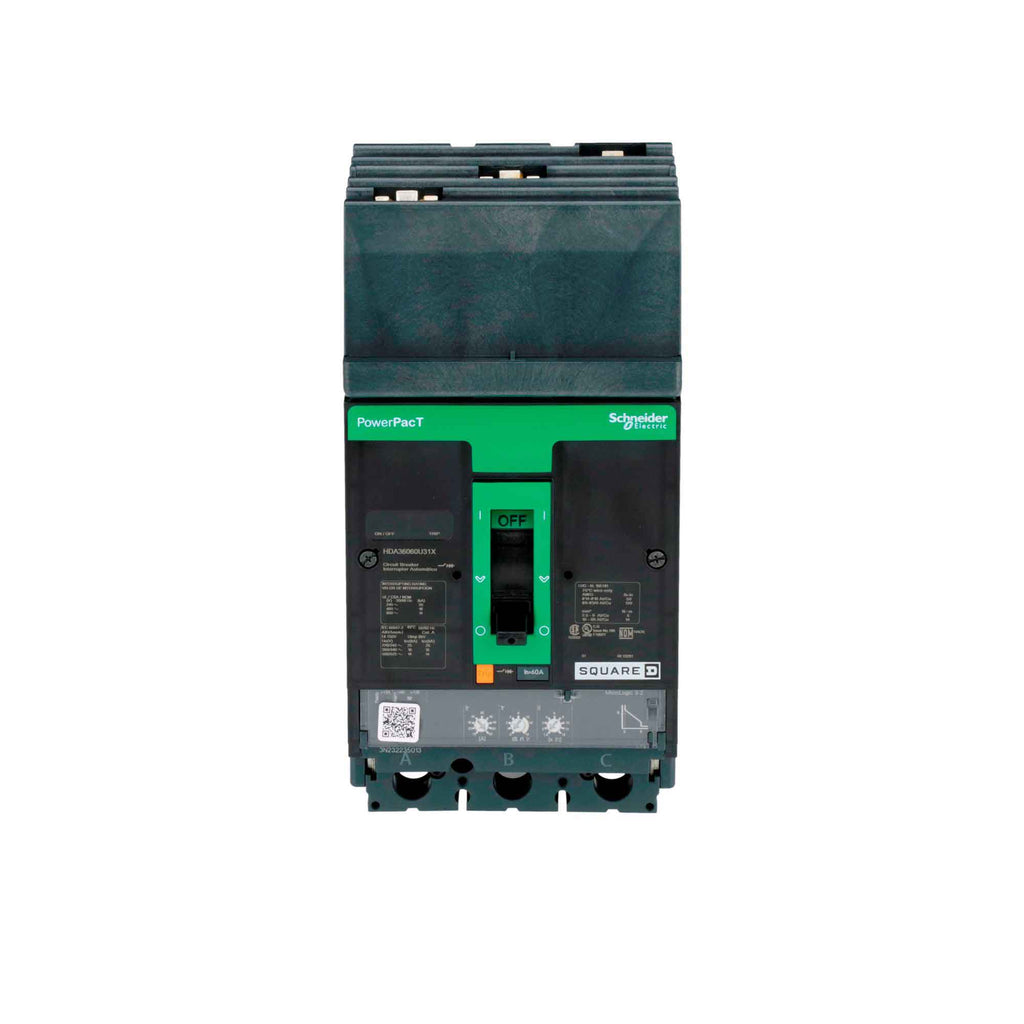

HDA36060U31X - Square D PowerPact H 60A 3 Pole Molded Case Circuit Breaker, 600V, I-Line, 14kA

HDA36060U31X

HDA36060U31X is a Square D PowerPact H series 3 pole molded case circuit breaker rated for 60A and 600V AC, designed for I-Line busway mounting. This breaker features a Micrologic 3.2 electronic trip unit and a 14kA interrupt rating at 600V, providing reliable protection for commercial and industrial power distribution systems. The breaker is UL, CSA, and CE listed for safety and compliance. Engineered for flexibility and ease of installation, the HDA36060U31X supports a wide range of terminal options and is suitable for applications requiring high interrupt capacity and solid-state trip technology. Its compact design and robust construction make it ideal for demanding environments.

• Part Number: HDA36060U31X
• Manufacturer: Square D
• Series/Frame: PowerPact H
• Amperage: 60A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 14kA @ 600V AC
• Frequency: 50/60 Hz
• Wire Size: 14-3/0 AWG
• Trip Unit: Micrologic 3.2 (Electronic)
• Certifications: UL, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36060U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901309680
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.404
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
