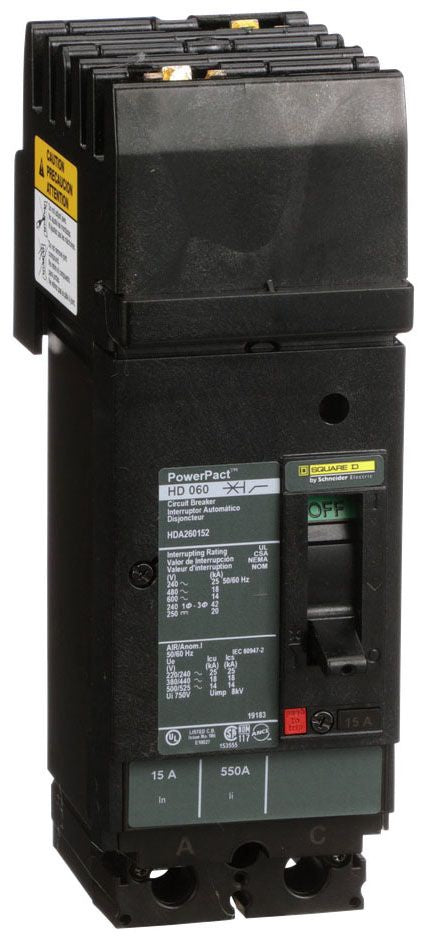

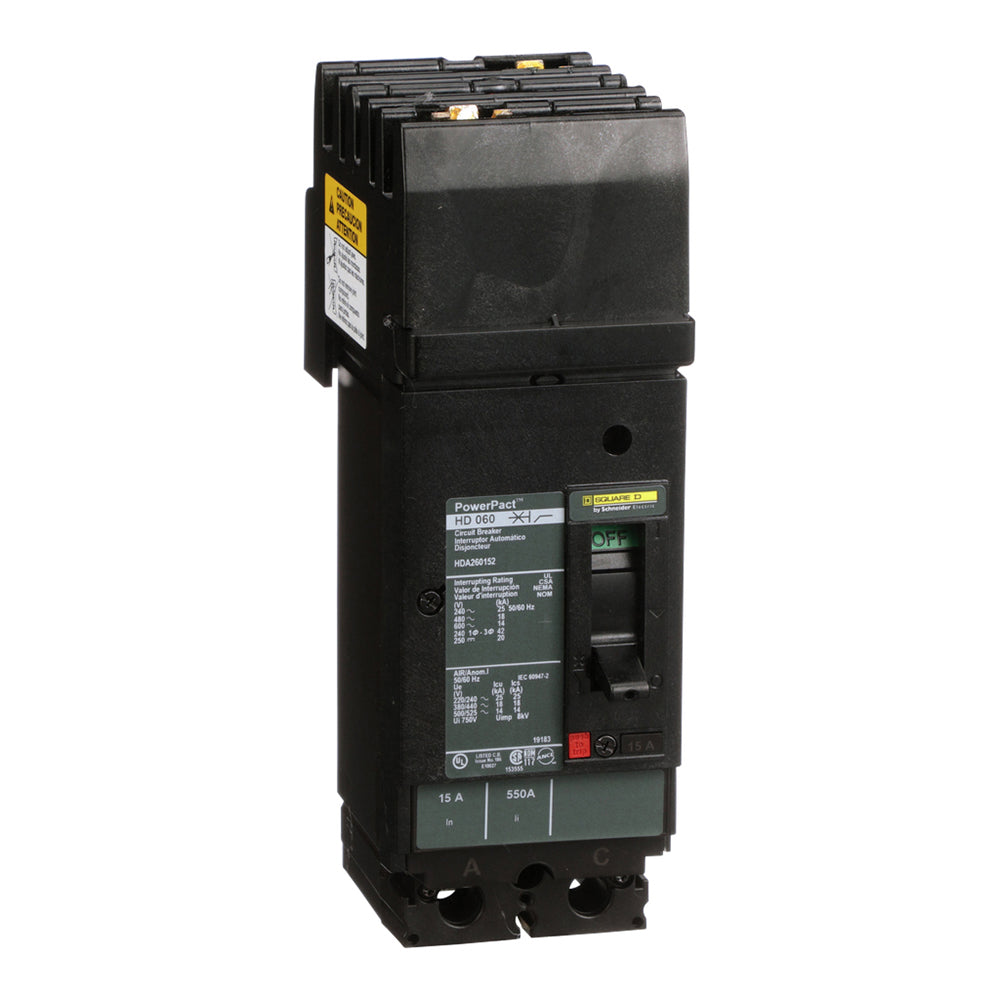

HDA260152 - Square D 15 Amp 2 Pole 600V Thermal Magnetic Circuit Breaker I-Line H Frame

HDA260152

HDA260152 is a Square D 15 Amp 2 Pole thermal magnetic molded case circuit breaker designed for I-Line mounting with an H frame.This circuit breaker provides reliable overload and short circuit protection with a 600V AC and 250V DC voltage rating. It features a 25kA interrupting rating at 240VAC, 18kA at 480VAC, and 14kA at 600VAC. The breaker includes long-time and instantaneous trip functions and is UL, CSA, and CE certified. It is suitable for use in PowerPact HDA series panelboards and switchboards.

Key Specifications
• Amperage: 15 Amp
• Poles: 2 Pole
• Voltage Rating: 600 VAC / 250 VDC
• Interrupting Rating: 25kA at 240VAC, 18kA at 480VAC, 14kA at 600VAC
• Mounting Type: I-Line Plug-In
• Frame Type: H Frame
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Certifications: UL Listed, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HDA260152
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : AC



Product Data

• UPC : 785901412939
• GTIN : 00785901412939
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.167
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
