Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Hubbell
- Sub-Category
- Locking Devices
- Voltage
- 125/250 125/250V
- UPC
- 783585014401
- GTIN
- 783585014401
- Dimensions
- 1.16 in D 3.28 x 1.39 x 0.97 in
- Weight
- 1
Product description & additional details
HBL6810

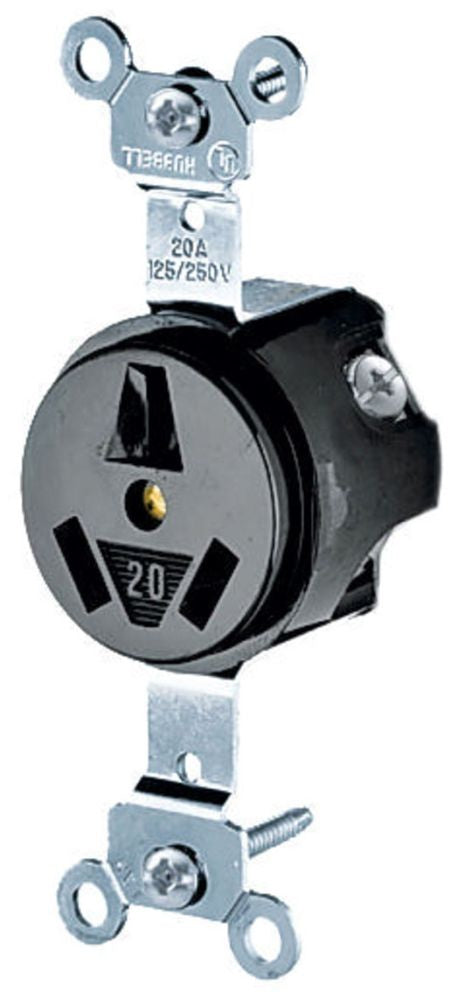

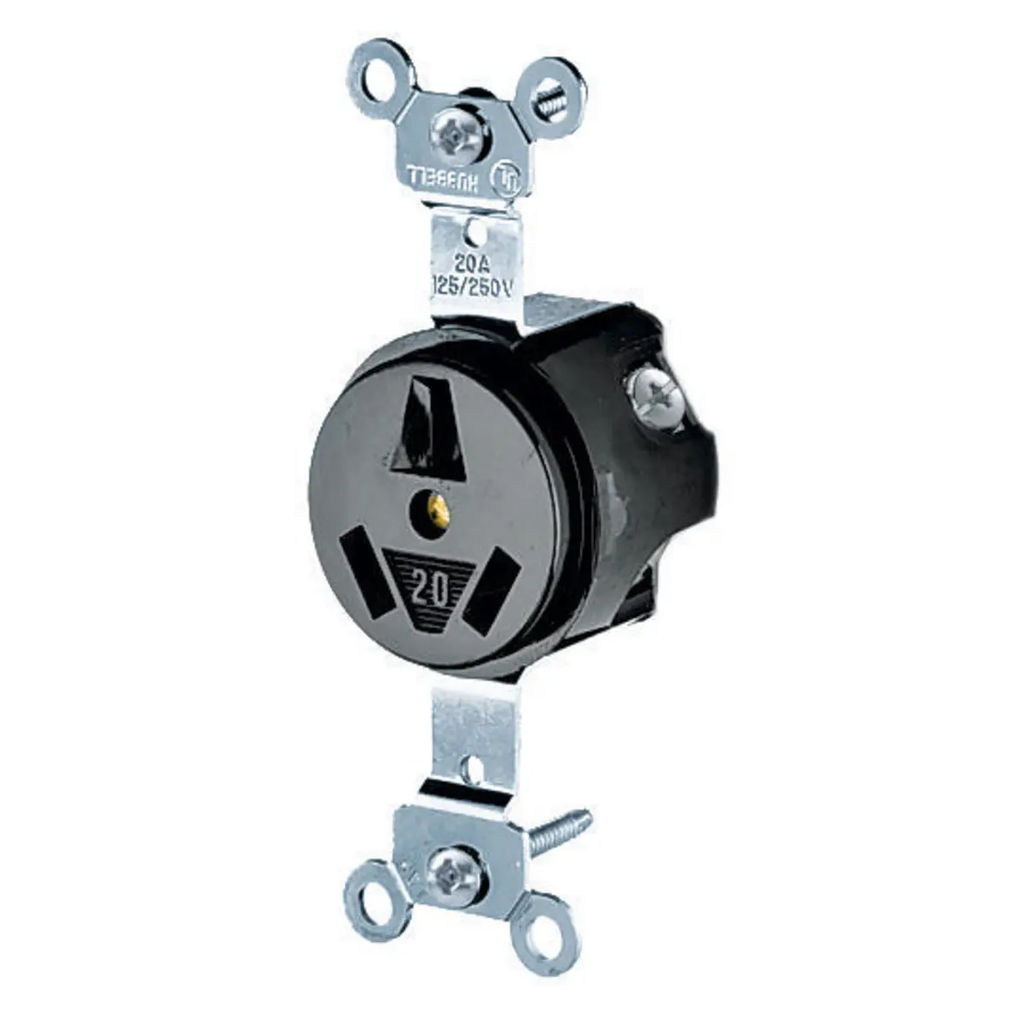

HBL6810 is a Hubbell 20 Amp, 125/250 Volt, 3-Pole, 3-Wire Non-Grounding Single Receptacle designed for heavy-duty industrial applications.This extra heavy duty single receptacle features a phenolic body with brass contacts and stainless steel grounding clip. It is rated for 20A and 125/250V, suitable for single-phase power. The device is back and side wired, accommodates #14 to #10 AWG copper conductors, and is UL and CSA certified. It withstands 2,000V dielectric strength and operates in temperatures from -40°C to 75°C. Mounting is screw type with included Robertson/slotted screws.
- Key Specifications
- Amperage Rating: 20 A
- Voltage Rating: 125/250 V
- Number of Poles: 3
- Number of Wires: 3
- Type: Single Receptacle
- Mounting: Screw Mounting
- Material: Phenolic Body, Brass Contacts
- Configuration: NEMA 10-20R
- Connectivity: Back and Side Wired
- Dielectric Strength: Withstands 2,000V minimum
- Operating Temperature: -40°C to 75°C
- Certifications: UL Listed, CSA Certified
- Part Number: HBL6810
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125/250 125/250
- UPC : 783585014401
- GTIN : 783585014401
- Dimensions : 1.16 in D 3.28 x 1.39 x 0.97 in
- Weight : 1
