Product Info
- Manufacturer:Hubbell
- Sub-Category:Locking Devices
Description
HBLDS3

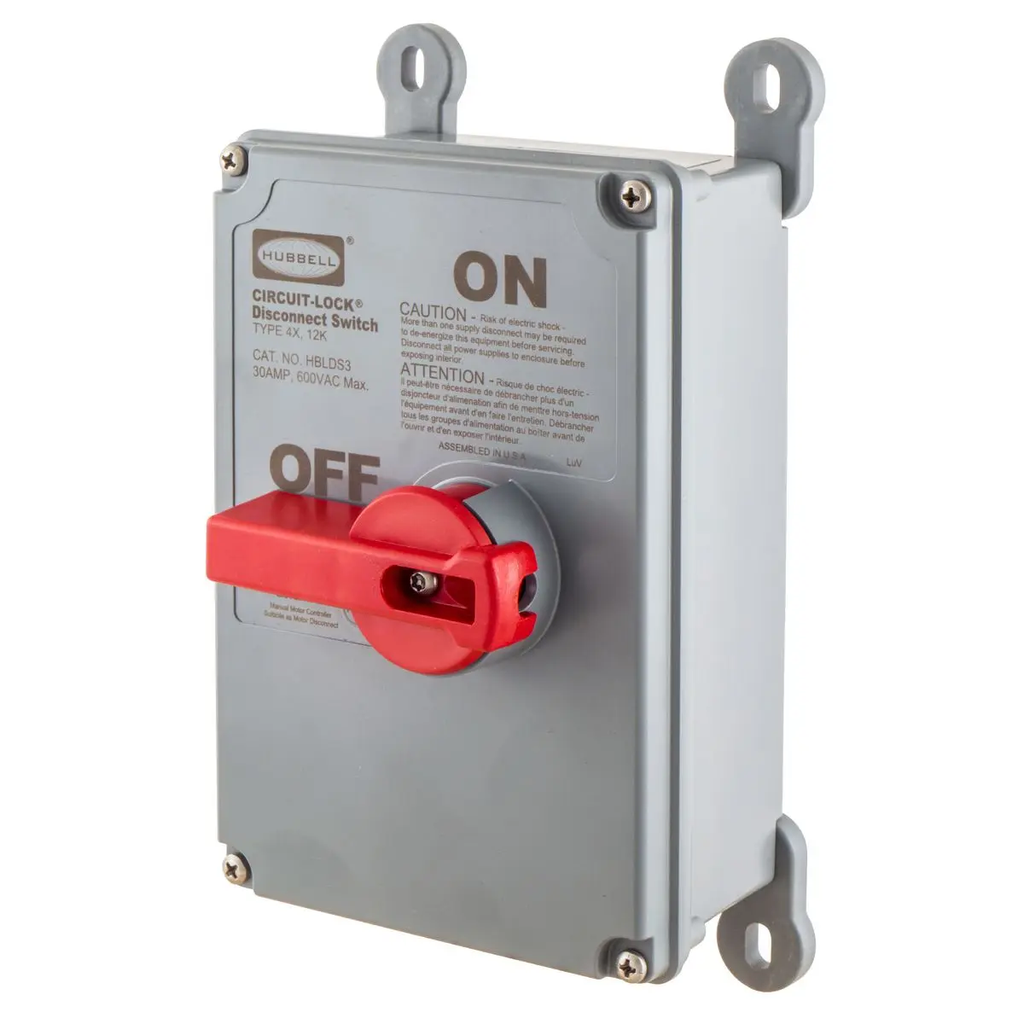

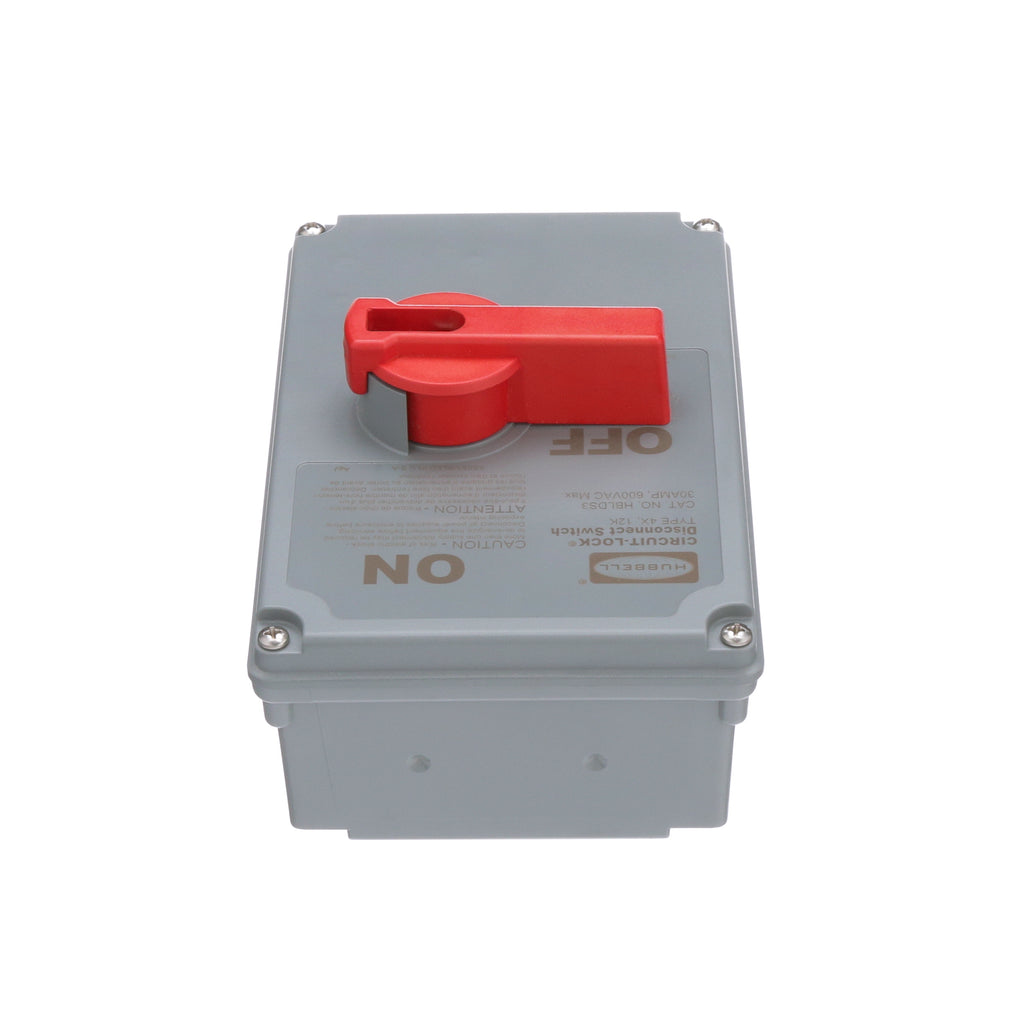

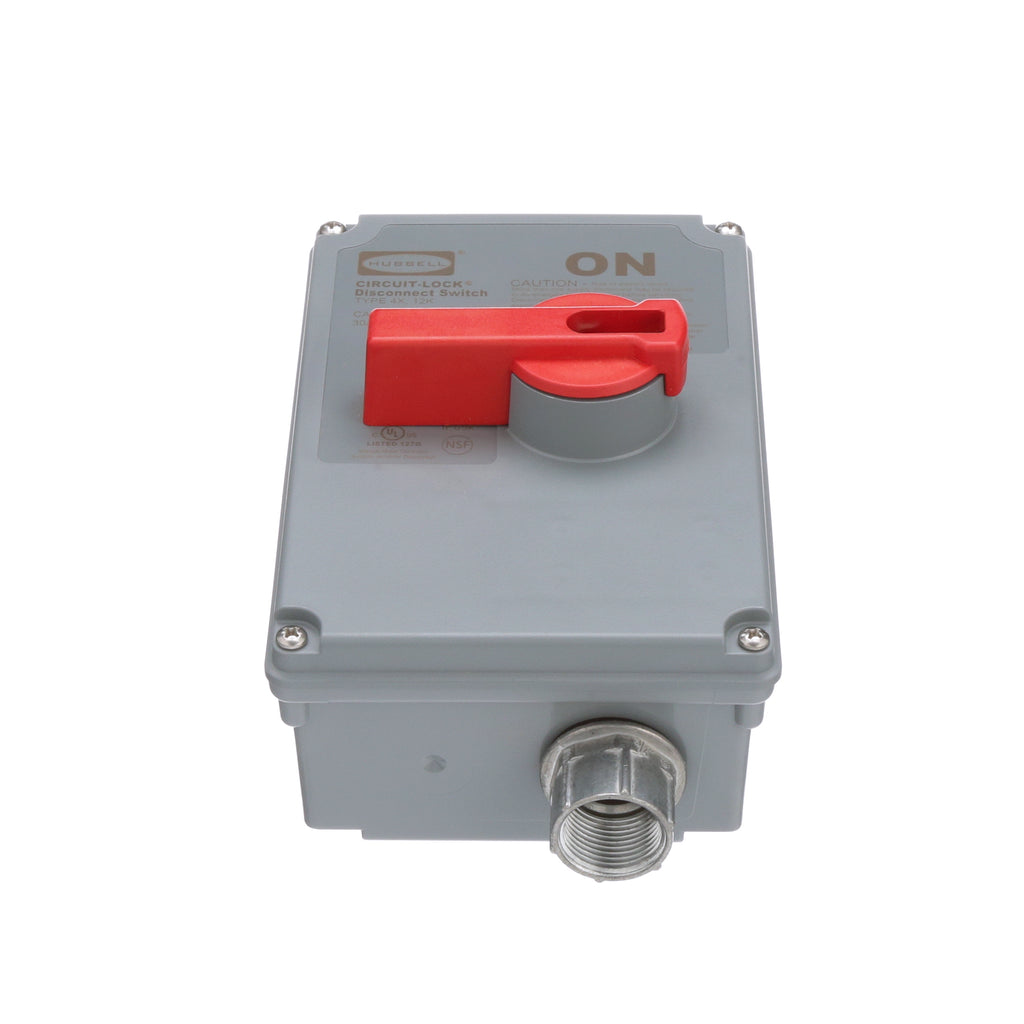

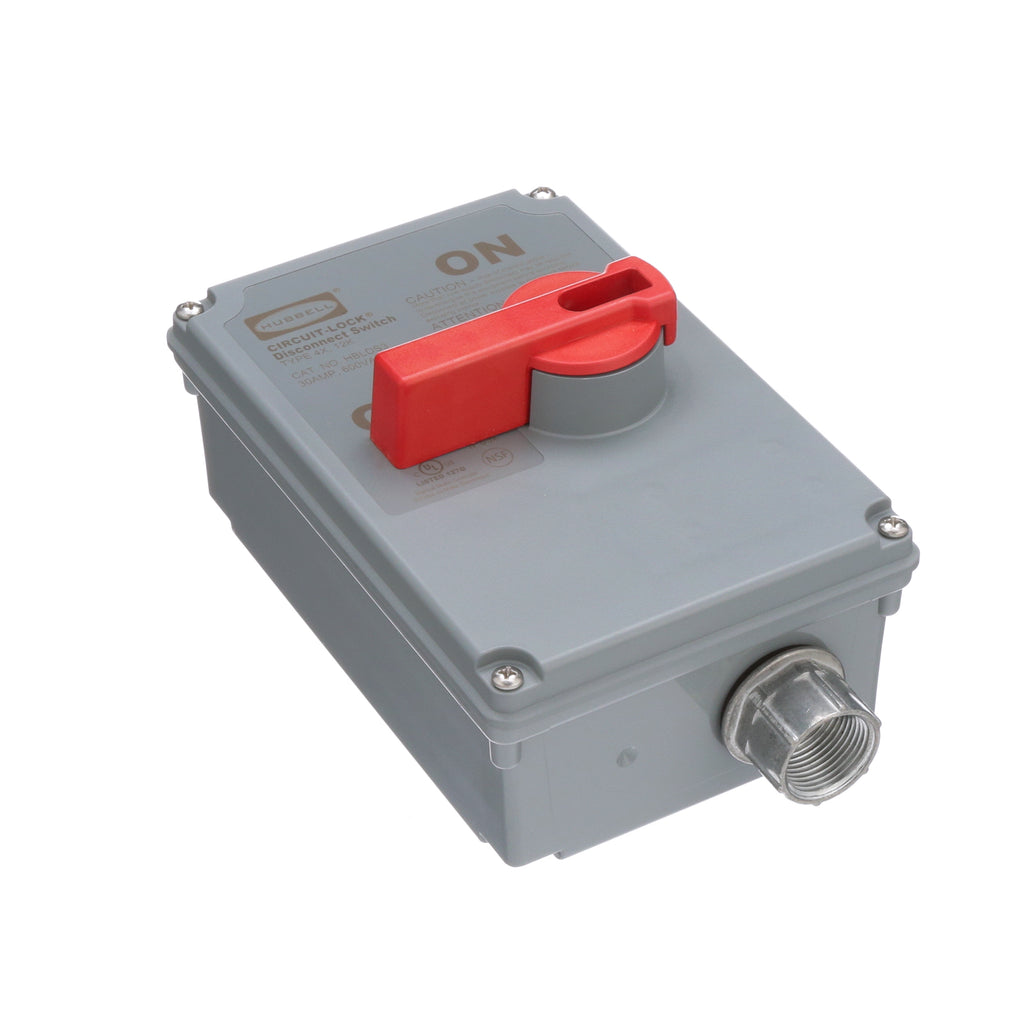

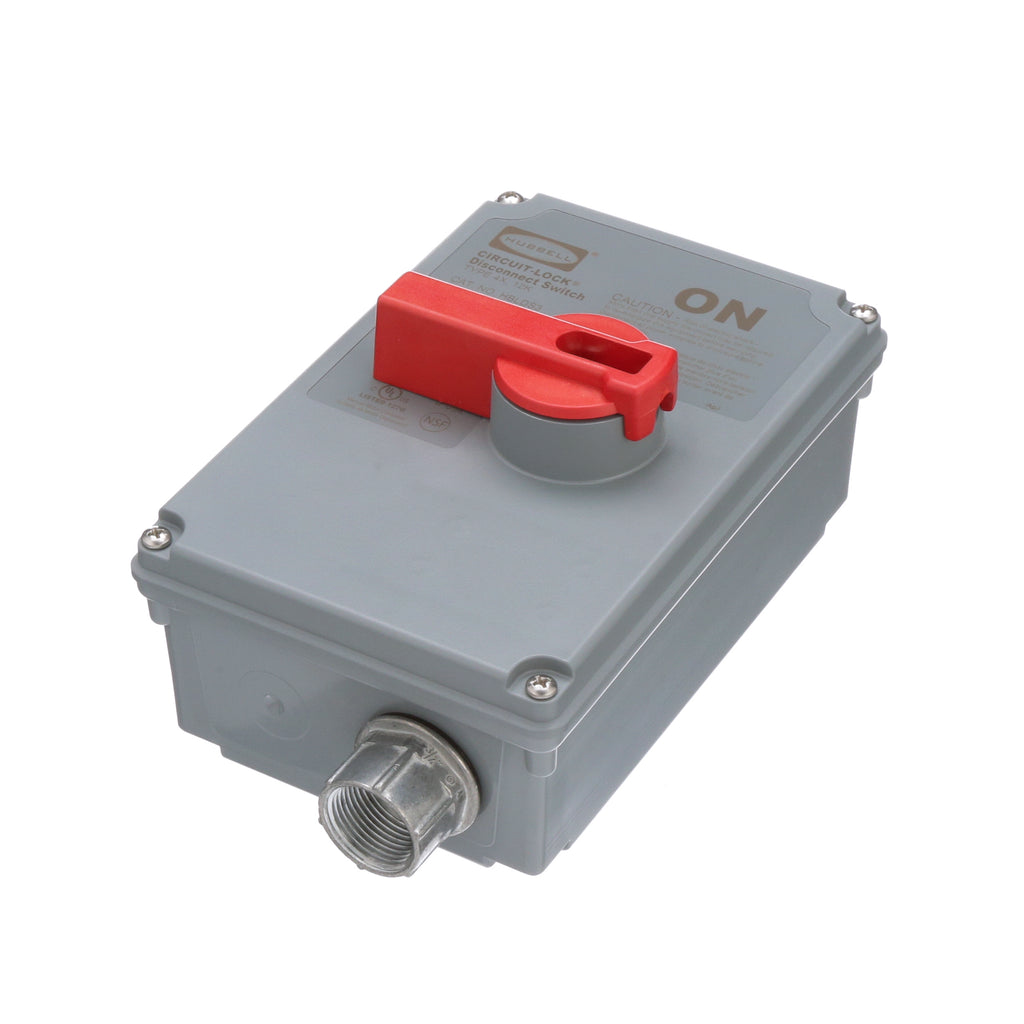

HBLDS3 is a 30 amp, 600V AC, three-pole non-fused disconnect switch from Hubbell designed for industrial applications.HBLDS3 features durable screw terminals and a corrosion-resistant NEMA 4X enclosure with IP69K rating, providing protection against dust, water, and harsh environments. It includes external fully adjustable mounting feet and withstands a dielectric voltage of 3000V AC minimum. This UL listed switch operates reliably between -40°C and 75°C continuous temperature and is suitable for motor disconnect applications with a short circuit current rating of up to 65kA when protected by Class J fuses.
- Amperage: 30A
- Voltage: 600V AC
- Poles: 3
- Mounting: External fully adjustable feet
- Enclosure: NEMA 4X, IP69K rated
- Interrupt Rating: 65kA SCCR with Class J fuses
- Dielectric Strength: 3000V AC minimum
- Operating Temperature: -40°C to 75°C continuous
- UL Listed
- Color: Gray
- Weight: 2.6 lbs
- Dimensions: 8.5 x 6 x 4.12 inches
Specifications
- Part Number: HBLDS3
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 600 600
Product Data
- UPC : 783585955001
- GTIN : 783585955001
- Dimensions : 8.5 in H x 6 in W x 4.12 in D 8.5 x 6 x 4.12 in
- Weight : 0.3
