Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Hubbell
- Sub-Category
- Locking Devices
- Rated current
- 50
- Voltage
- 125/250 125/250V
- Poles
- 3
- UPC
- 783585015316
- GTIN
- 00783585015316
- Dimensions
- 3.28 in H x 2.75 in W x 2.44 in D 3.28 x 2.75 x 2.44 in
- Weight
- 0.3
Product description & additional details

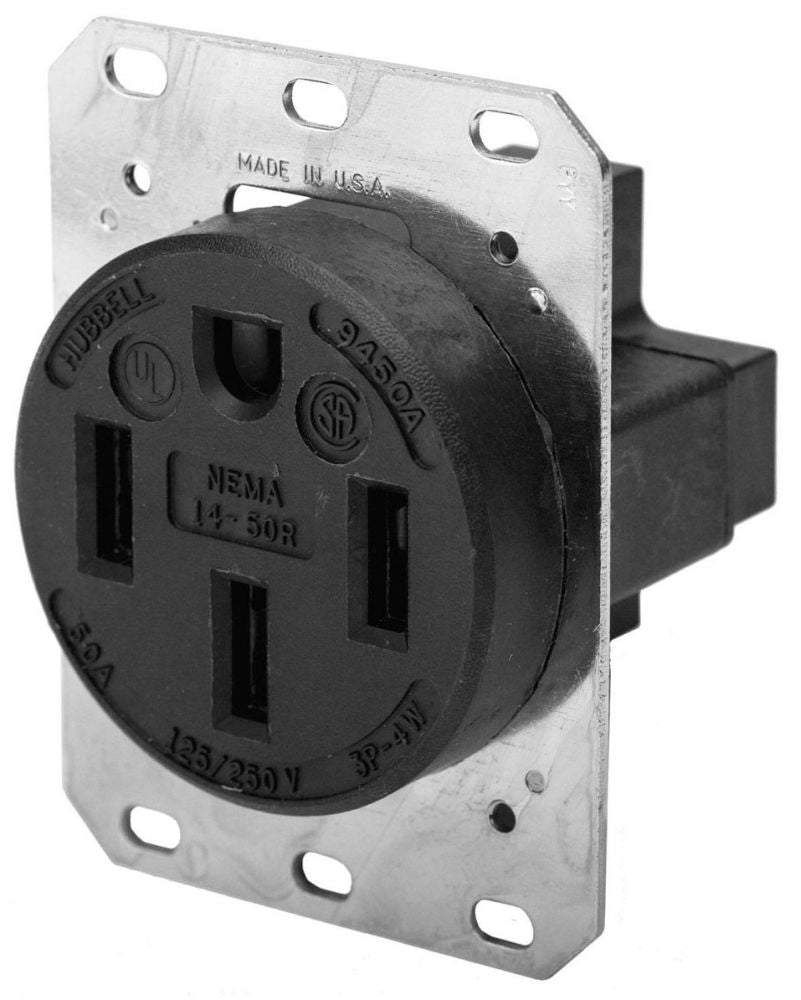

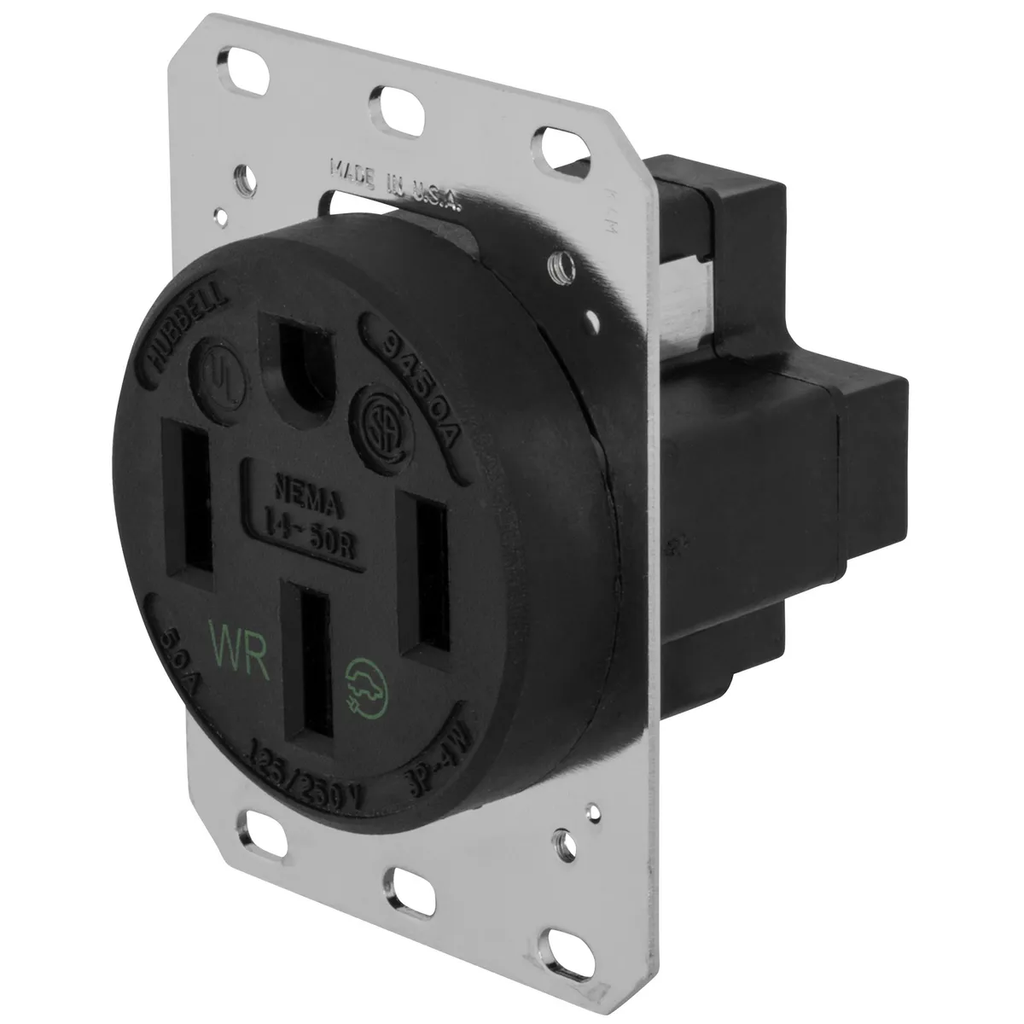

HBL9450A
HBL9450A is a Hubbell industrial-grade 50 Amp, 125/250 Volt, 3-pole, 4-wire grounding straight blade receptacle designed for heavy use and durability.This receptacle features a reinforced thermoplastic polyester housing, brass contacts, and copper box terminals. It is UL listed (File E2186), CSA certified, and NEMA WD-6 compliant, rated for 50 Amps and 125/250 Volts with a NEMA 14-50R configuration. It withstands 2,000V dielectric strength and accommodates #12 AWG to #4 AWG copper wire. The device is suitable for single-phase applications and designed for reliable performance in industrial and commercial environments.
- Key Specifications
- Amperage: 50 Amps
- Voltage: 125/250 Volts
- Poles: 3
- Wires: 4-wire grounding
- NEMA Rating: 14-50R
- Mounting Type: Straight blade receptacle
- Interrupt Rating: Certified for current interrupting at full rated current
- Certifications: UL Listed (File E2186), CSA Certified, NEMA WD-6 Compliant
- Housing Material: Reinforced Thermoplastic Polyester
- Contact Material: Brass
- Terminal Accommodation: #12 AWG to #4 AWG copper wire
- Dielectric Strength: Withstands 2,000V minimum
Specifications
- Part Number: HBL9450A
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 125/250 125/250
- Amperage : 50
- Poles : 3
Product Data
- UPC : 783585015316
- GTIN : 00783585015316
- Dimensions : 3.28 in H x 2.75 in W x 2.44 in D 3.28 x 2.75 x 2.44 in
- Weight : 0.3
