Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Hubbell
- Sub-Category
- Locking Devices
- Rated current
- 20
- Voltage
- 250 250V
- Poles
- 2
- Configuration
- 6-20R NEMA
- UPC
- 783585013954
- GTIN
- 00783585013954
- Dimensions
- 2.38 in H x 1.63 in W x 1.19 in D 3.28 x 1.63 x 1.19 3.28 x 1.63 x 1.19 in
- Weight
- 0.3
Product description & additional details

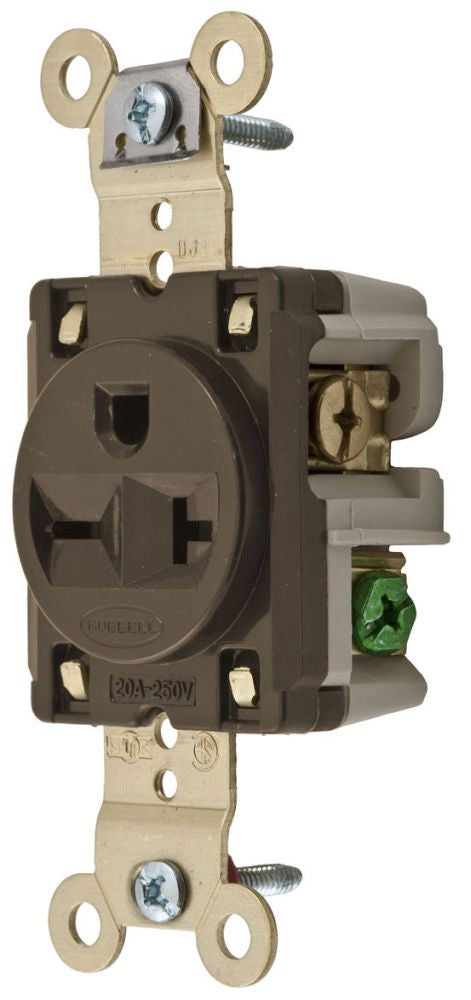

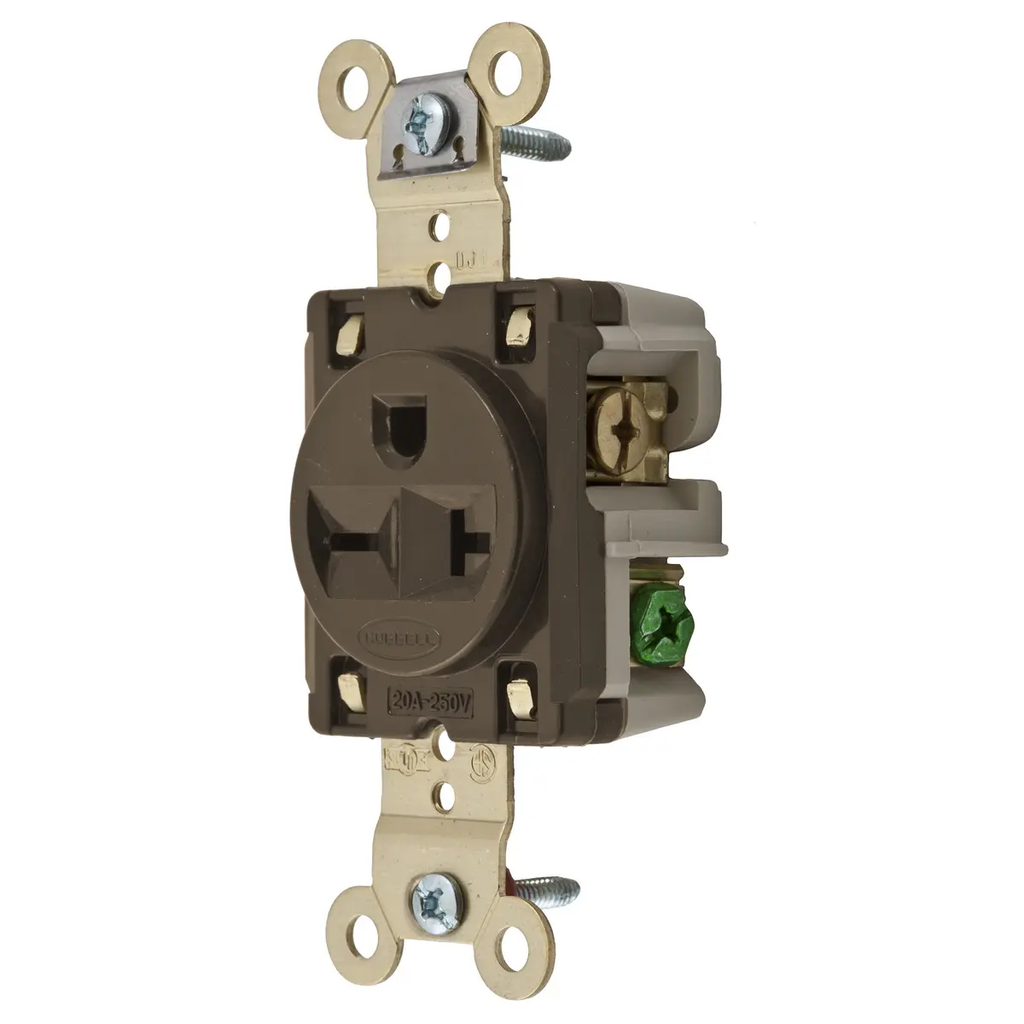

HBL5461
HBL5461 is a Hubbell 20 Amp, 250 Volt, 2-Pole, 3-Wire grounding single receptacle with a brown nylon face and PBT base, designed for extra heavy duty industrial use.This specification grade receptacle features a 6-20R NEMA configuration, back and side wired screw terminals, and a one-piece brass integral ground strap. It is rated for 20A continuous current, withstands 2,000V dielectric voltage, and operates reliably from -40°C to 75°C. The device is UL 498 and CSA C22.2 certified, suitable for indoor dry locations, and compliant with RoHS and Buy American Act standards.
- Key Specifications
- Amperage: 20 Amps
- Voltage: 250 Volts
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Configuration: 6-20R NEMA
- Material: Nylon Face, PBT Base
- Mounting: Screw Mounting
- Interrupt Rating: Certified for full rated current
- Operating Temperature: -40°C to 75°C
- Certifications: UL 498, CSA C22.2, RoHS Compliant
- Wire Size: #12 AWG to #10 AWG
Specifications
- Part Number: HBL5461
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Locking Devices
- Voltage : 250 250
- Amperage : 20
- Poles : 2
- Configuration : 6-20R NEMA
Product Data
- UPC : 783585013954
- GTIN : 00783585013954
- Dimensions : 2.38 in H x 1.63 in W x 1.19 in D 3.28 x 1.63 x 1.19 3.28 x 1.63 x 1.19 in
- Weight : 0.3
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
