Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Hubbell
- Sub-Category
- Control / signal device or switch
- Voltage
- 125 125V
- UPC
- 783585013039
- GTIN
- 00786788703028
- Dimensions
- 1.61 in Dia x 3 in L 3 x 1.61 x 3 3 x 1.61 x 3 in
- Weight
- 0.5
Product description & additional details
HBL1547

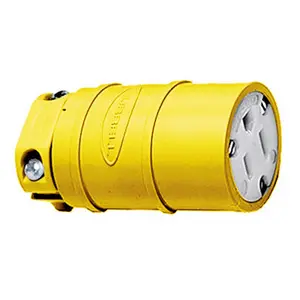

HBL1547 is a Hubbell 15 amp, 125 volt, 2-pole, 3-wire straight blade connector designed for industrial and commercial applications.HBL1547 features a thermoplastic elastomer housing with a dust-tight seal around the cord, providing protection in indoor dry environments. It supports cord ranges from 0.230" to 0.360" and is rated for continuous operation from -40°C to 75°C. The connector has screw terminal connectivity, a NEMA 5-15R rating, and withstands dielectric strength of 2,000 volts minimum. It is UL 498 and CSA C22.2 No. 42 certified and constructed with durable composite materials for reliable performance.
- Key Specifications
- Amperage Rating: 15 A
- Voltage Rating: 125 V
- Number of Poles: 2
- Number of Wires: 3
- Mounting Type: Cord Mounted
- Enclosure Rating: IP20
- Temperature Rating: -40°C to 75°C
- Connectivity: Screw Terminals
- NEMA Rating: 5-15R
- Dielectric Strength: 2,000 V minimum
- Color: Yellow
- Material: Thermoplastic Elastomer Housing
Additional Information
Panel or box mount; ratings per model
Specifications
- Part Number: HBL1547
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Control / signal device or switch
- Voltage : 125 125
Product Data
- UPC : 783585013039
- GTIN : 00786788703028
- Dimensions : 1.61 in Dia x 3 in L 3 x 1.61 x 3 3 x 1.61 x 3 in
- Weight : 0.5
