Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Hubbell
- Sub-Category
- Control / signal device or switch
- Rated current
- 15
- Voltage
- 125 125V
- Poles
- 2
- Terminals
- Screw
- UPC
- 783585013015
- GTIN
- 00783585013015
- Dimensions
- 2.19 in L x 1.55 in W 2.19 x 1.55 x 2.19 2.19 x 1.55 x 2.19 in
- Weight
- 0.5
Product description & additional details
HBL1447

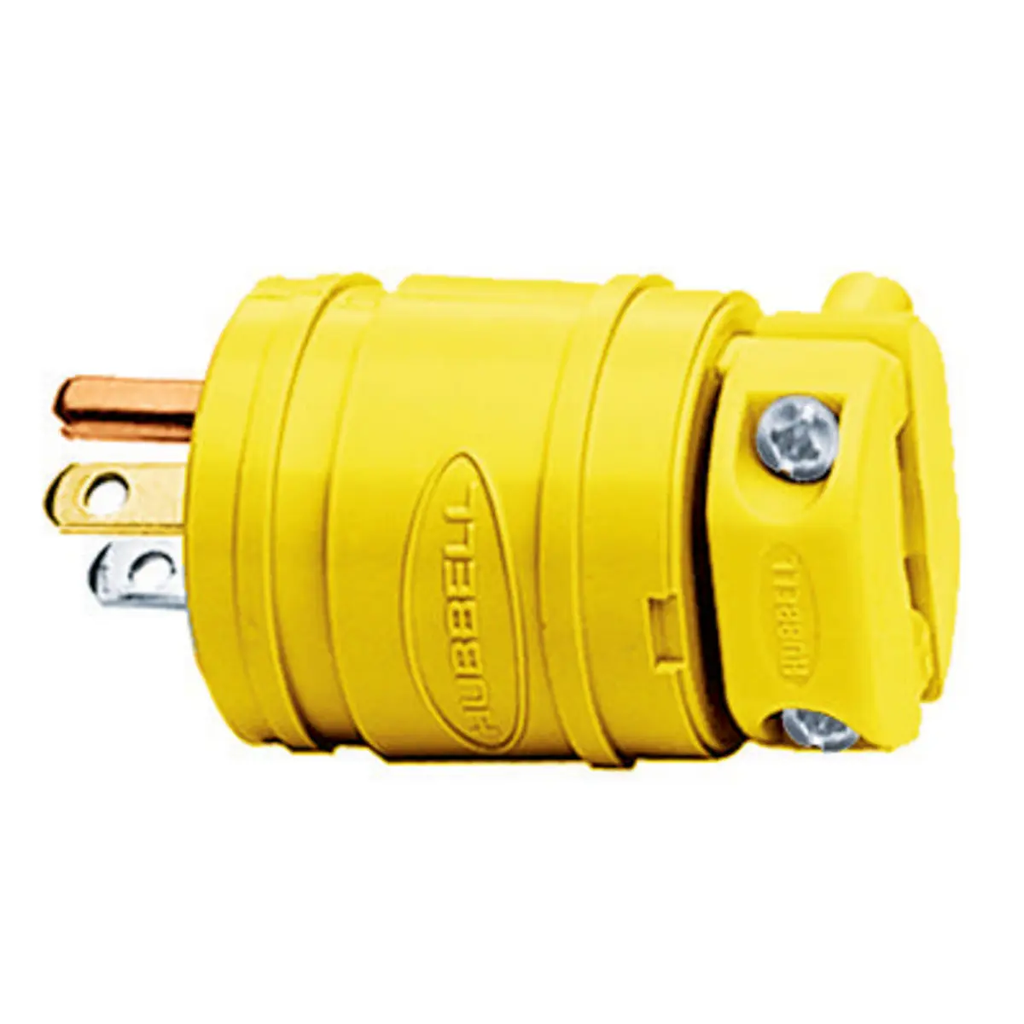

HBL1447 is a Hubbell industrial/commercial grade straight blade male plug rated for 15 amps and 125 volts with a yellow thermoplastic elastomer housing.
This Elasto-Grip dust-tight plug features a 2-pole, 3-wire grounding design with screw terminal connections accommodating #18 to #12 AWG stranded copper wire. It is certified for current interrupting at full rated current and withstands dielectric voltage of 2,000V minimum. The plug is rated NEMA 5-15P and suitable for indoor dry environments unless additional protection is provided. Operating temperature ranges from -40°C to 75°C continuous without impact damage.
- Key Specifications
- Amperage: 15 A
- Voltage: 125 VAC
- Poles: 2
- Wires: 3 (including ground)
- NEMA Rating: 5-15P
- Material: Thermoplastic elastomer housing with polycarbonate components
- Terminal Connection: Screw
- Wire Size: #18 to #12 AWG stranded copper
- Dielectric Strength: 2,000 V minimum
- Operating Temperature: -40°C to 75°C continuous
- Application: Industrial/Commercial Grade
- Color: Yellow
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
Panel or box mount; ratings per model
Specifications
- Part Number: HBL1447
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Conduit & Fittings
- Item Subcategory : Control / signal device or switch
- Voltage : 125 125
- Amperage : 15
- Poles : 2
- Terminal Connection : Screw
Product Data
- UPC : 783585013015
- GTIN : 00783585013015
- Dimensions : 2.19 in L x 1.55 in W 2.19 x 1.55 x 2.19 2.19 x 1.55 x 2.19 in
- Weight : 0.5
