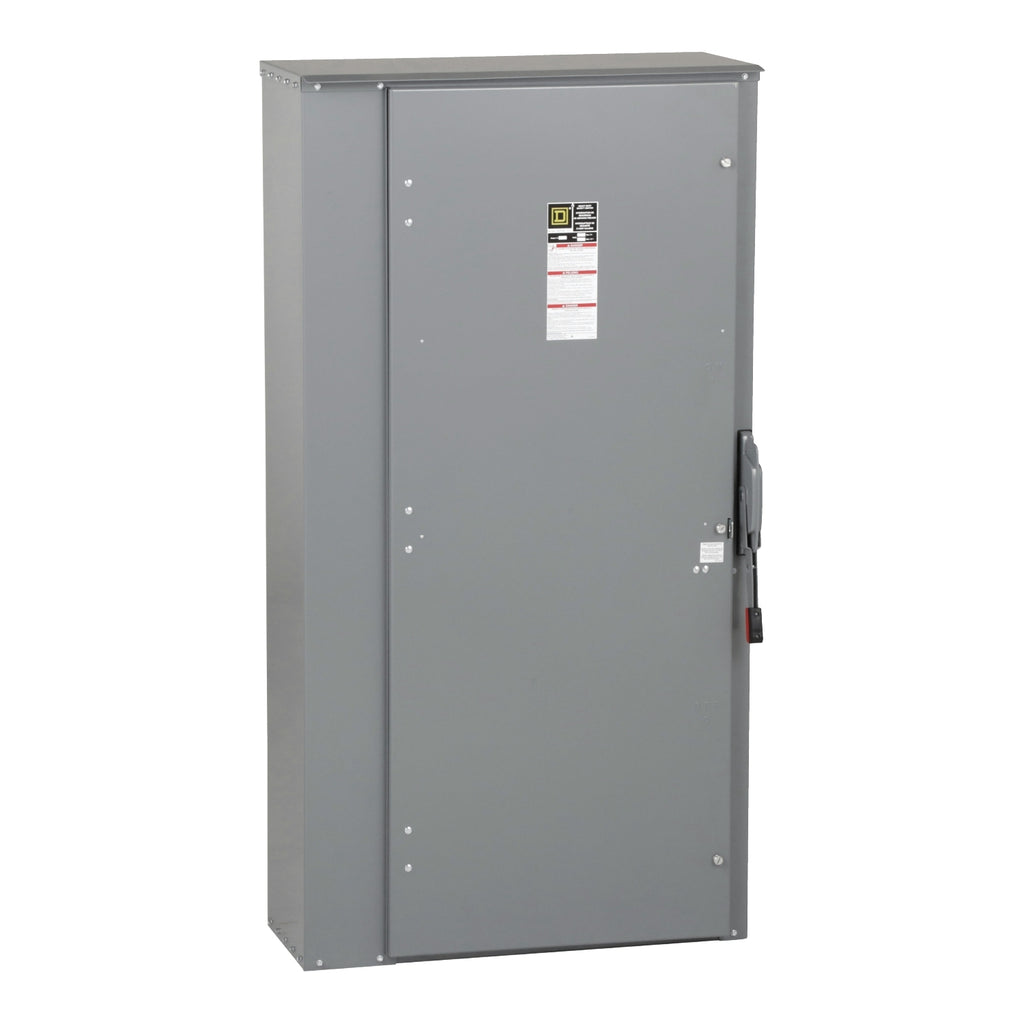

H327NR - Square D 800 Amp 240 VAC 3-Pole Fusible Heavy Duty Safety Switch NEMA 3R

H327NR

H327NR is a Square D heavy duty fusible safety switch rated for 800 amps and 240 VAC with 3 poles and NEMA 3R enclosure.H327NR features a fusible design for enhanced circuit protection, suitable for both AC and DC applications up to 250 VDC. It has a 3-pole, 4-wire configuration with a galvannealed steel enclosure providing durability and corrosion resistance. The switch supports up to 250 HP and is UL listed and RoHS compliant, making it ideal for industrial power distribution needs.

• Amperage: 800 Amp
• Voltage: 240 VAC / 250 VDC
• Poles: 3
• Mounting Type: Surface mount
• Interrupt Rating: Class L Fusible
• Enclosure: NEMA 3R Galvannealed Steel
• Horsepower Rating: 250 HP
• Standards: UL Listed, RoHS Compliant
• Contact Form: 3PST (3 Pole Single Throw)
• Wire: 4 Wire
• Series/Frame: Heavy Duty
• Trip Unit: Fusible

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H327NR
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Voltage : 240 AC/250 DC
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R,L
• Wire : 4
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R
• Compatible Frames : KP

Product Data

• UPC : 78590144240
• GTIN : 00785901442400
• Country of Origin : Mexico
• Dimensions : 69.13 in (1755.90 mm) x 36.62 in (930.15 mm) x 17.75 in (450.85 mm) (Height x Width x Depth)
• Weight : 370
• Certification : UL Listed
