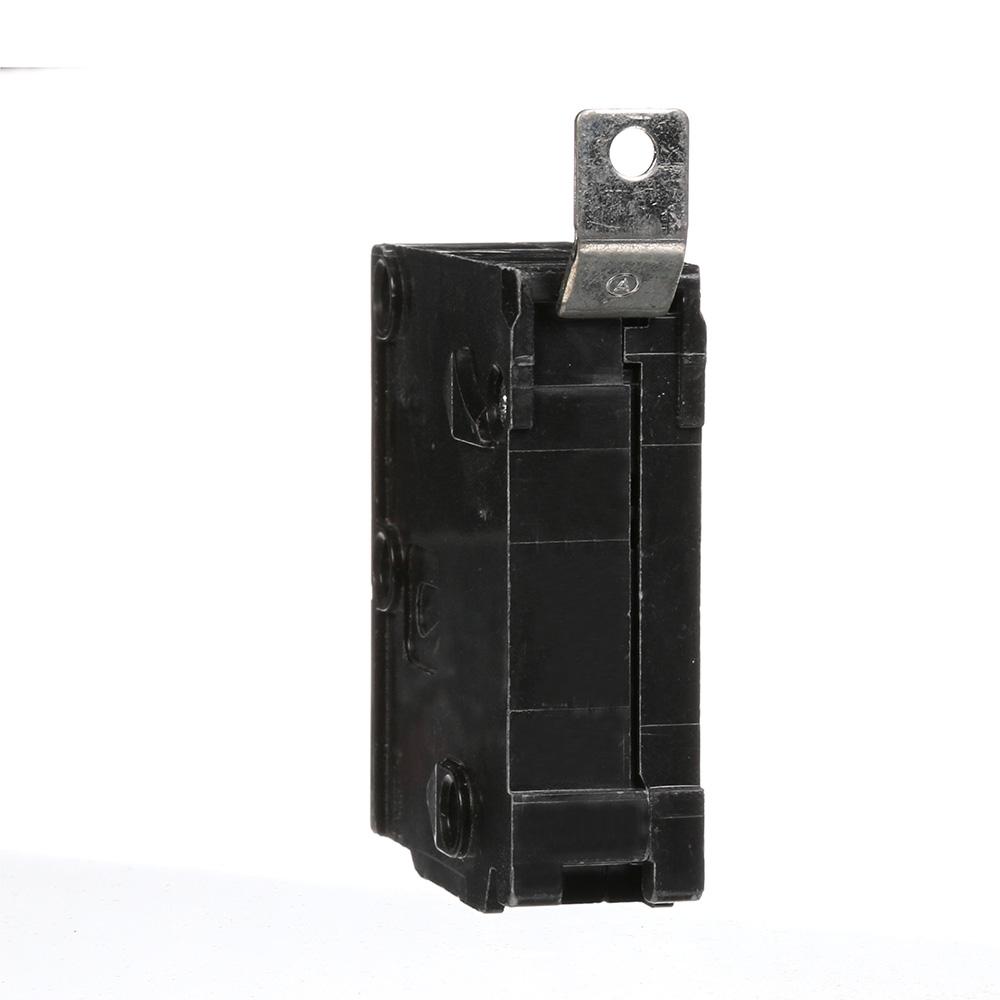

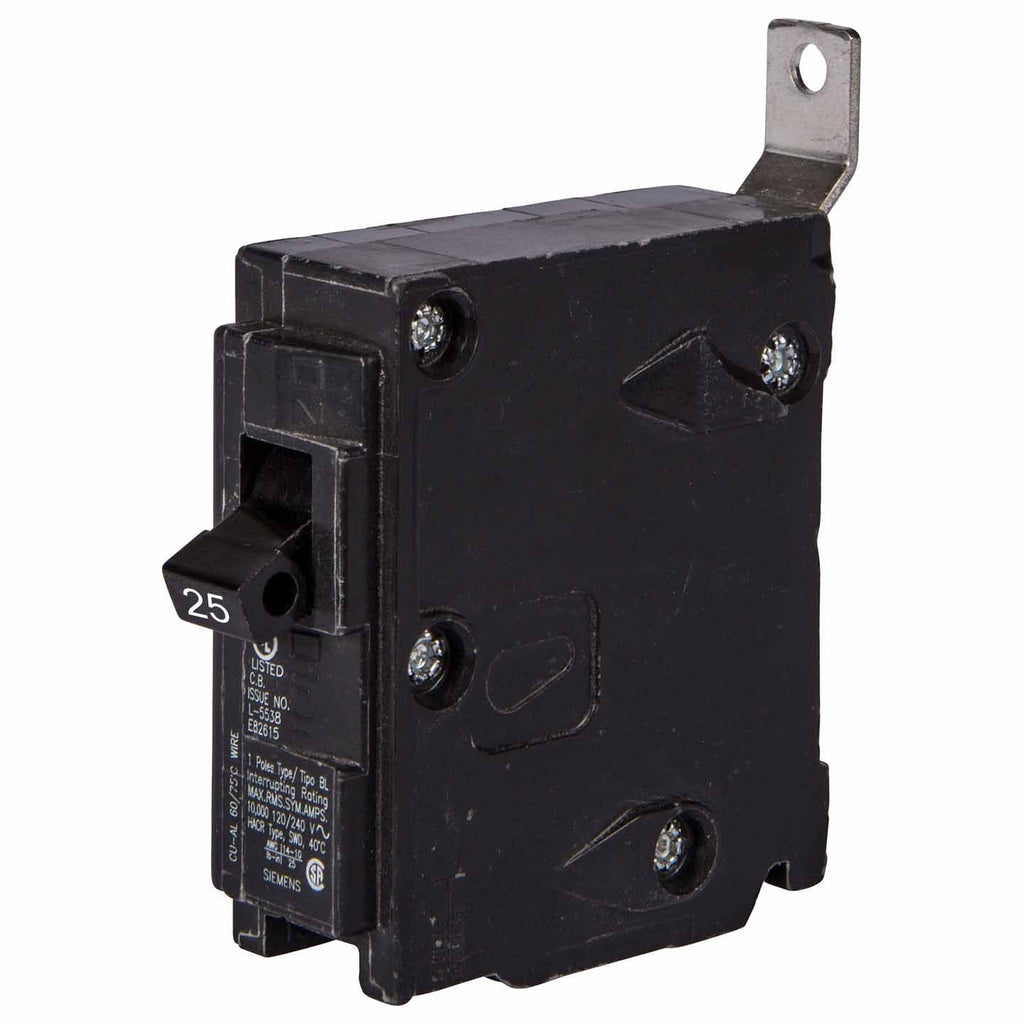

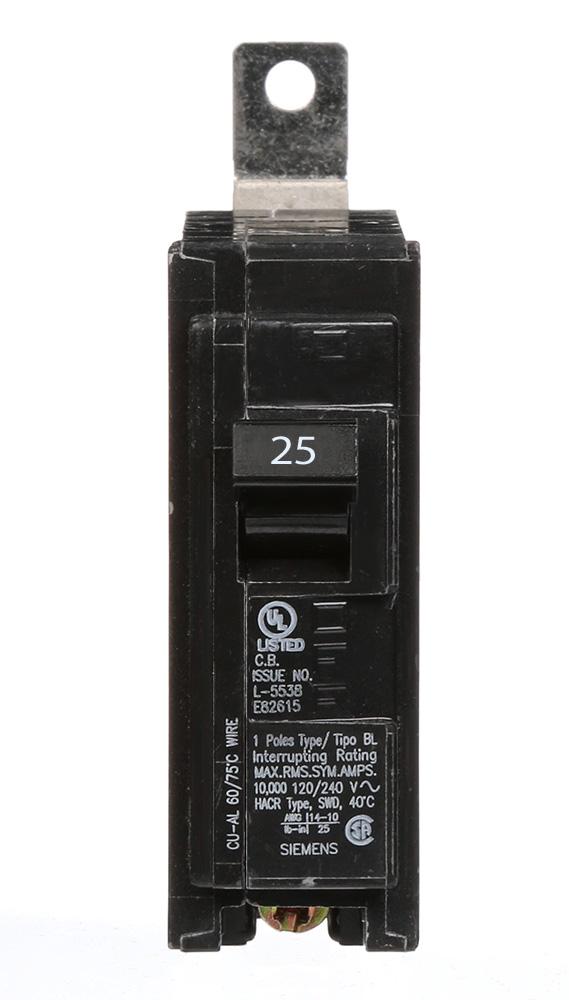

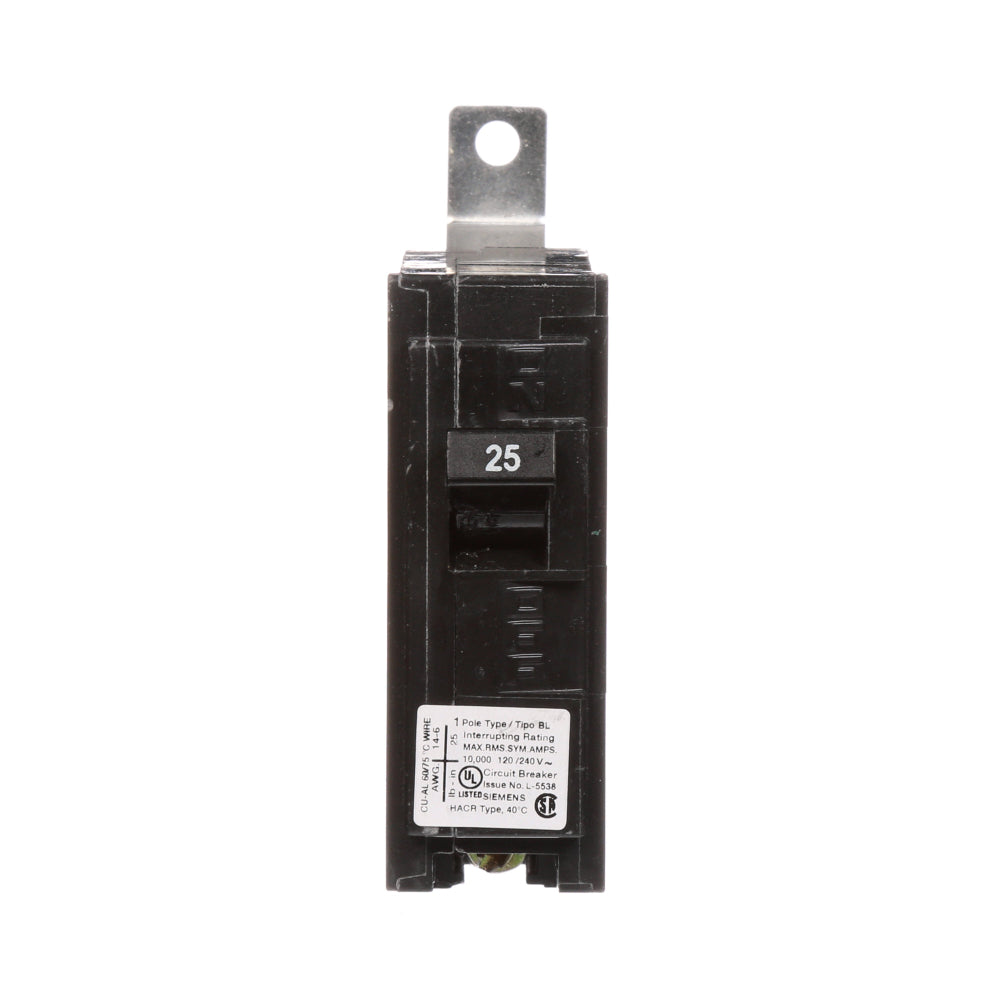

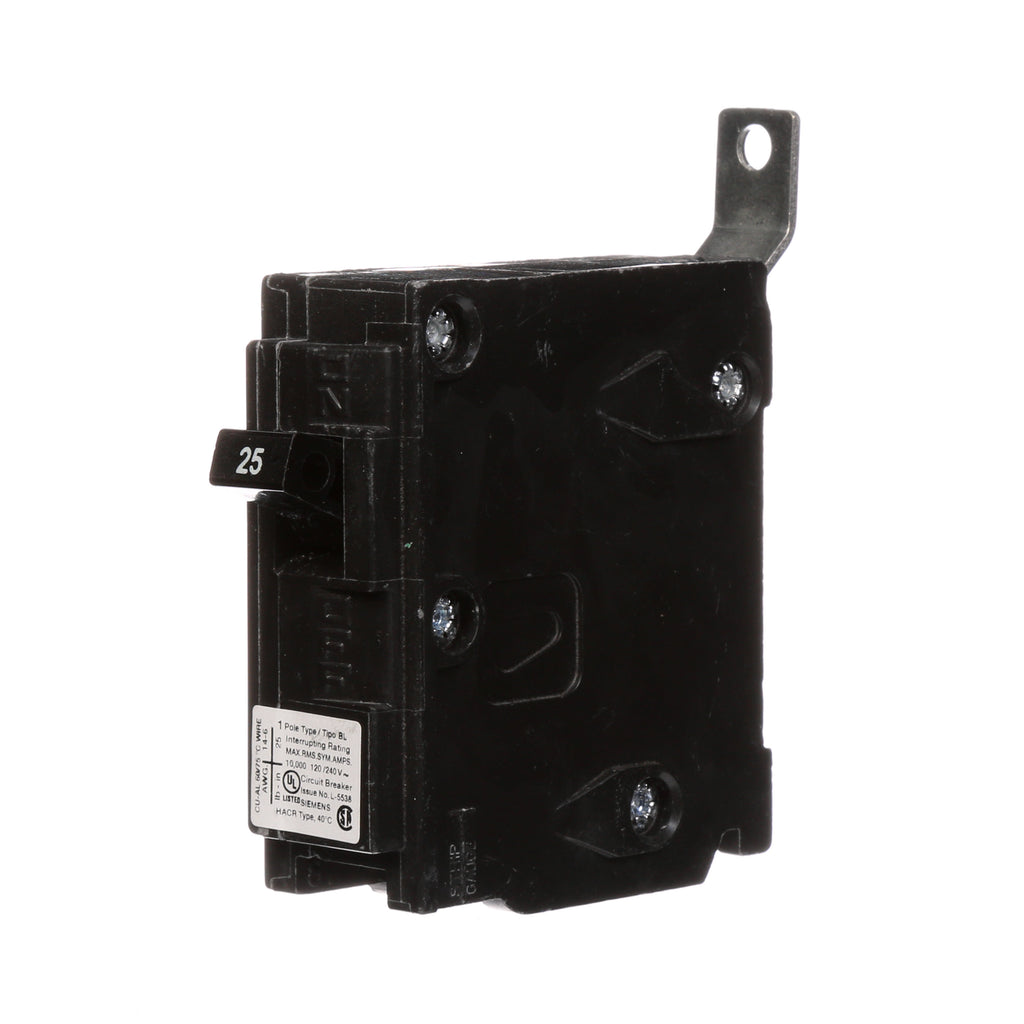

B125 - Siemens 25 Amp 120/240 Volt 1 Pole Bolt-On Circuit Breaker Type BL 10kA Interrupt Rating

B125

B125 is a Siemens 25 Amp, 1 Pole, 120/240 Volt bolt-on circuit breaker designed for reliable circuit protection.This Type BL molded case circuit breaker features a thermal magnetic trip unit, a 10,000 Amp interrupting rating (10 kA), and bolt-on mounting for secure installation. It is UL Listed and CSA Certified, suitable for use in residential and commercial panelboards requiring a 25 Amp single-pole breaker with a 120/240 VAC rating.

Key Specifications
• Amperage: 25 Amps
• Voltage Rating: 120/240 Volts AC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA (10,000 Amps)
• Series/Frame: BL Series
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified, HACR Rated
• Compatible with Siemens P1 Panelboards
• Terminal Connection: Lug

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B125
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263437
• GTIN : 00783643263437
• Country of Origin : Mexico
• Dimensions : 2.571 x 1.00 x 2.89 inch
• Weight : 0.309
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
