Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
GJL36075M06

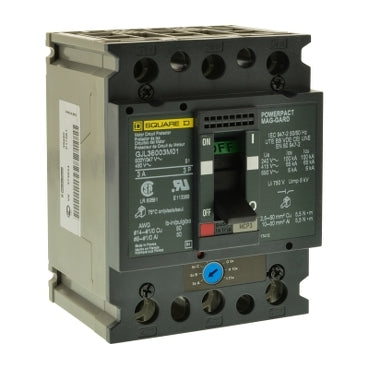

GJL36075M06 is a 3 pole, 75 amp motor circuit protector from Square D designed for 600Y/347V applications with Mag-Gard magnetic protection.This molded case circuit breaker features a 65kA interrupting rating at 480V, unit mount type, and provides instantaneous magnetic trip protection suitable for motor circuits. It is UL recognized and CSA certified, part of the G-Frame series, with line and load side lug terminals.
- Key Specifications
- Amperage: 75 Amps
- Voltage Rating: 600Y/347 Volts AC
- Number of Poles: 3
- Mounting Type: Unit Mount
- Interrupt Rating: 65kA at 480V
- Series/Frame: G-Frame
- Trip Unit: Magnetic (Mag-Gard MCP)
- Certifications: UL Recognized, CSA Certified
- Line & Load Side Lug Terminals
- Instantaneous Trip Only
Specifications
- Part Number: GJL36075M06
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : GJL Series
- Type : GJL
- Voltage : 600
- Amperage : 75
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Magnetic Only
Product Data
- UPC : 785901793632
- GTIN : 00785901793632
- Dimensions : Length 4 ft (1.22 m)
- Weight : 1.08
- Wire Size : AWG 8, AWG 1/0 aluminium, AWG 14, AWG 1/0 copper
