GJL36003M01 - Square D 3 Pole 3 Amp 600V Molded Case Circuit Breaker

GJL36003M01

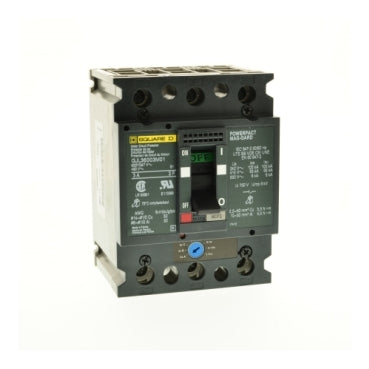

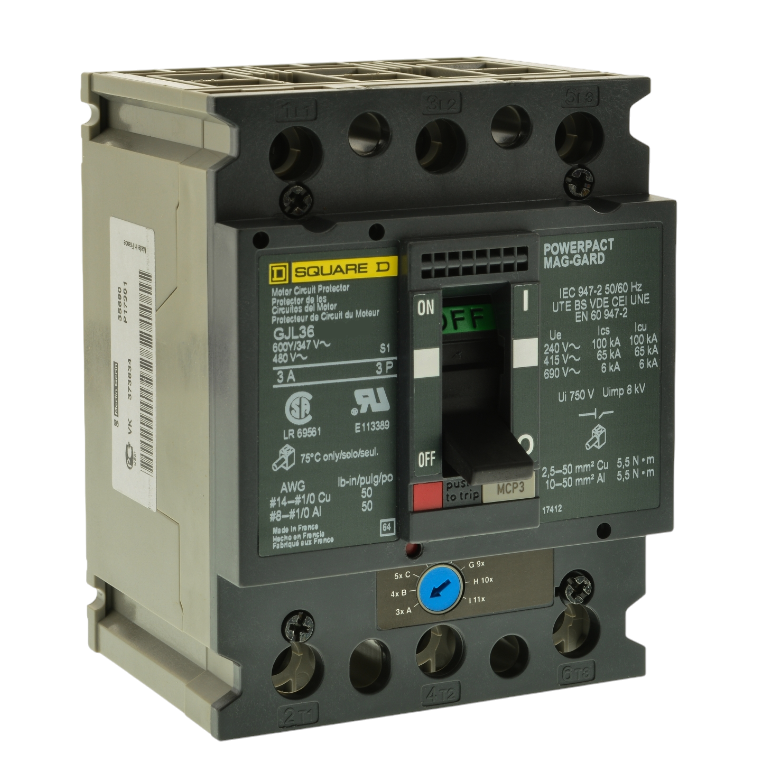

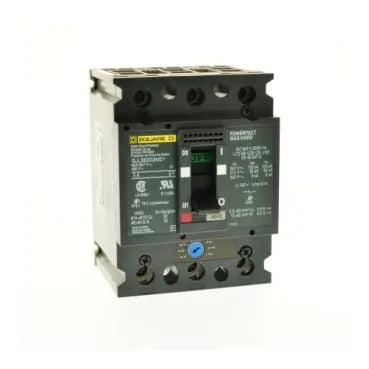

GJL36003M01 is a Square D 3 pole molded case circuit breaker rated for 3 amps and 600 volts, designed for motor circuit protection.

This Square D GJL series circuit breaker features a magnetic-only trip unit with instantaneous protection, suitable for motor control applications. It supports a maximum voltage rating of 600Y/347V and includes line and load side lug terminals for secure electrical connections. The breaker is designed for unit mounting and accommodates wire sizes from AWG 14 to 1/0 copper and AWG 8 to 1/0 aluminum. It provides reliable protection with a trip range of 9-33 amps magnetic only and is part of the Powerpact Industrial Electric MAG-GARD line.

Key Specifications
• Manufacturer: Square D
• Series: GJL
• Part Number: GJL36003M01
• Poles: 3 Pole
• Amperage: 3 Amps
• Voltage Rating: 600Y/347 Volts
• Trip Type: Magnetic Only (Instantaneous)
• Mounting Type: Unit Mount
• Electrical Connection: Lug Terminals (Line & Load)
• Wire Size Range: AWG 14-1/0 Copper, AWG 8-1/0 Aluminum
• Interrupt Rating: Standard for motor circuit protectors
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GJL36003M01
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : GJL Series
• Type : GJL
• Voltage : 600
• Amperage : 3
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Protection : Magnetic Only

Product Data

• UPC : 785901793588
• GTIN : 00785901793588
• Dimensions : Length 4 ft (1.22 m)
• Weight : 2.2
