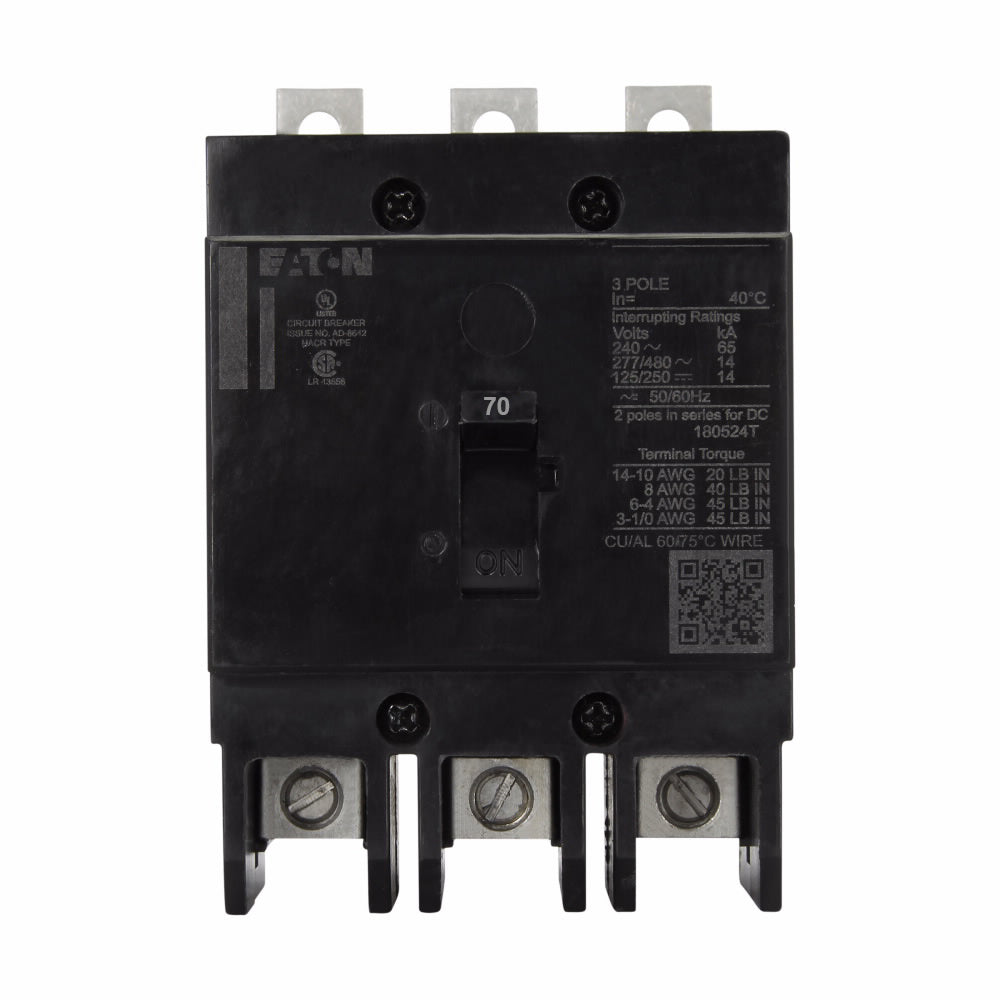

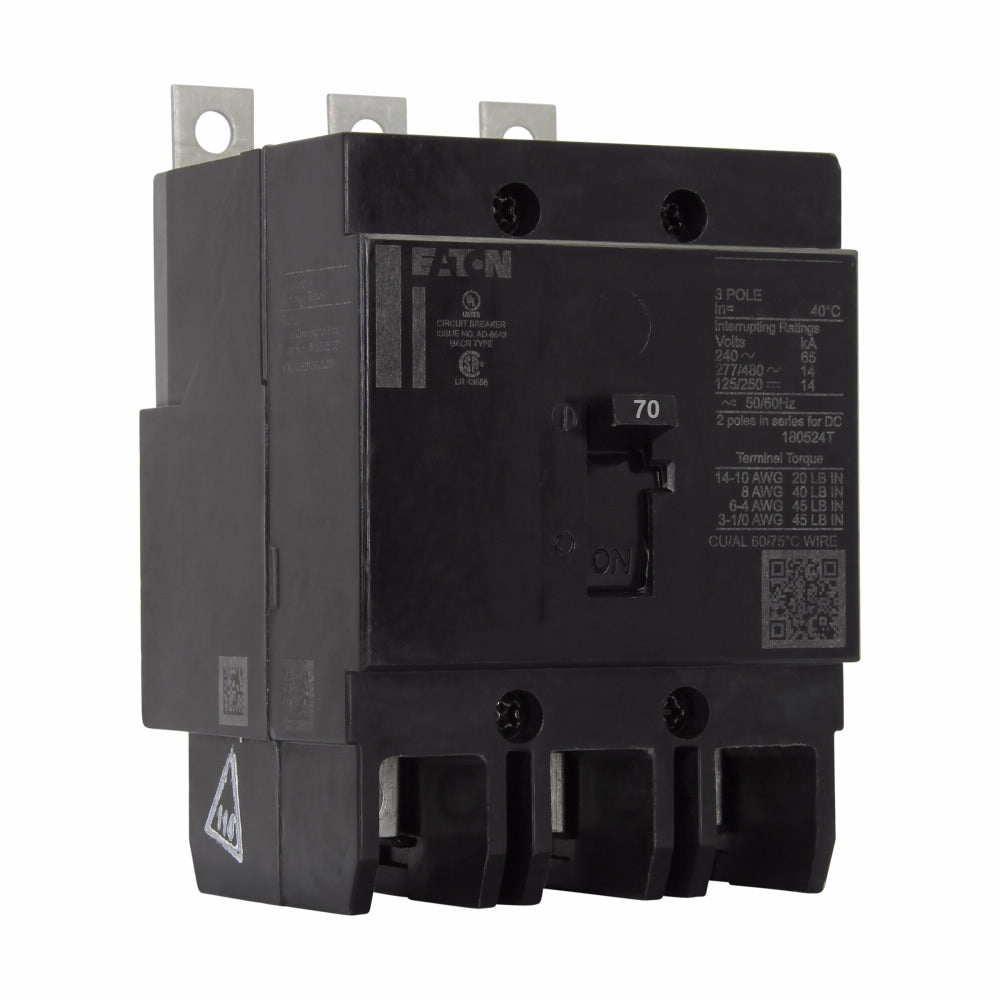

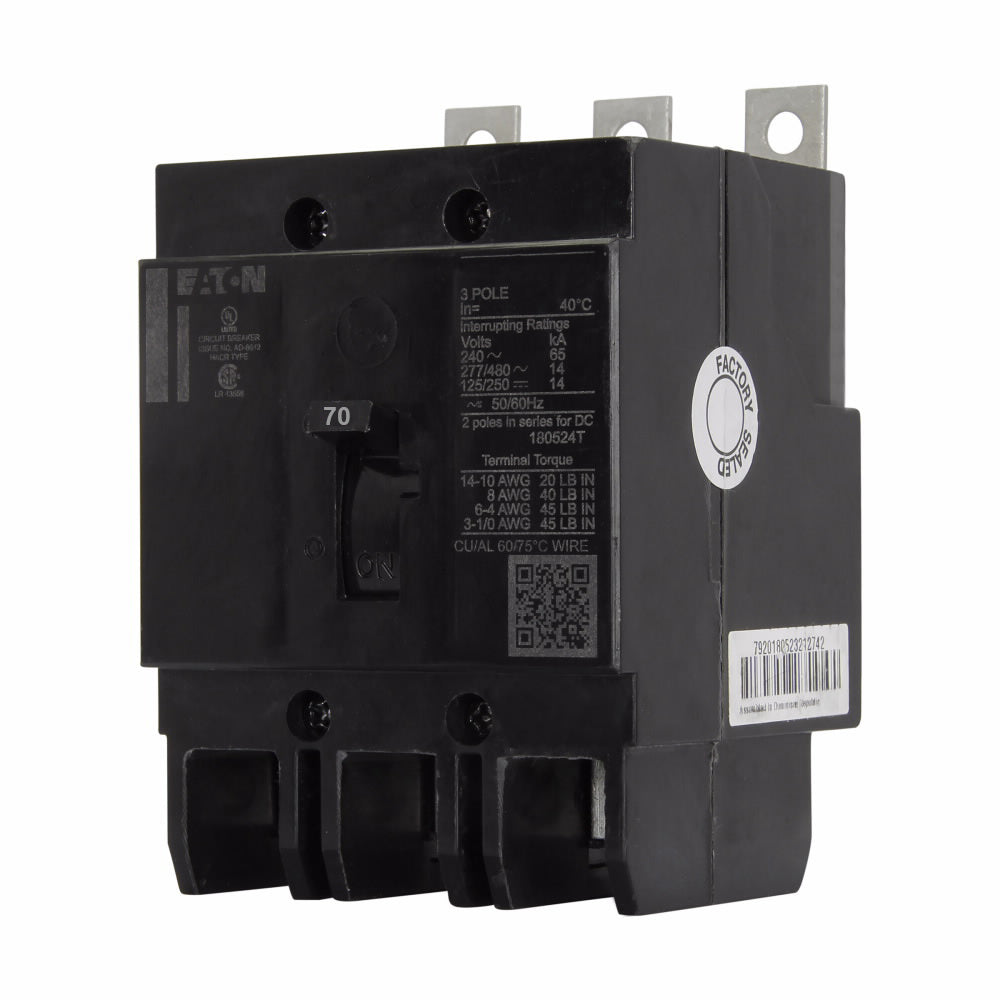

GHB3070S1 - Eaton 70 Amp 3 Pole 480V Bolt-On Molded Case Circuit Breaker Series C

GHB3070S1

GHB3070S1 is a 70 Amp, 3 Pole, 480 Volt bolt-on molded case circuit breaker from Eaton's Series C line.This Eaton GHB3070S1 circuit breaker features thermal magnetic trip protection with long-time and instantaneous trip functions. It has a high interrupting rating of 14kA at 480Y/277 VAC and 65kA at 240 VAC, suitable for 3-phase applications. The breaker is UL listed and CSA certified, designed for panel mounting with bolt-on connection, and supports reverse feed use. It includes a 120V shunt trip for enhanced control.

Key Specifications
• Amperage: 70 Amp
• Voltage: 480 VAC / 277 VAC
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 14kA at 480Y/277 VAC, 65kA at 240 VAC
• Series/Frame: Series C, Frame G
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Frequency Rating: 50/60 Hz
• Certifications: UL Listed, CSA Certified
• Includes 120V Shunt Trip
• Dimensions: Approx. 4.0" H x 1.18" W x 2.63" L
At Essential Parts, we offer fast shipping, lowest price(more...)


Specifications

• Part Number: GHB3070S1
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GHB
• Voltage : 480
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100/GHB
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 786679029824
• GTIN : 00786679029824
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4 in x 3 in (Length/Depth x Height x Width)
• Weight : 1.8
• Panel Type : Eaton Powerline Panelboards
• Standards : UL 556
• Certification : CSA Certified, UL Listed
