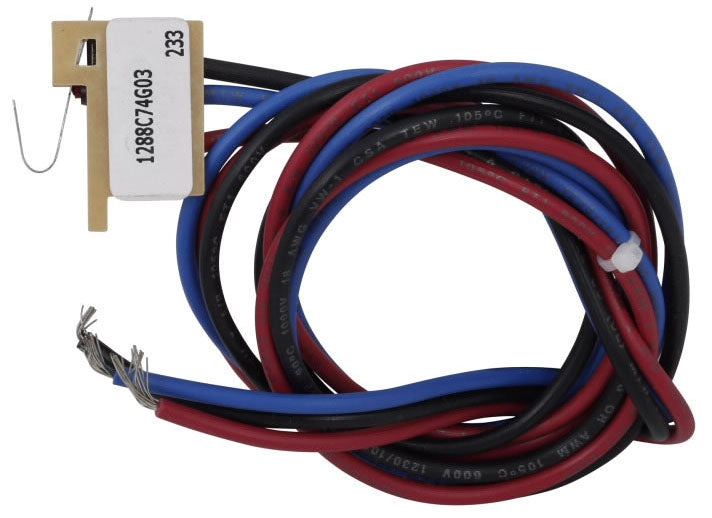

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Bell Alarm
- Series
- Series C
- Frame
- C
- Rated current
- 6
- Voltage
- 240VAC
- Connection
- Pigtail Lead
- Country of origin
- United States
- Control Voltage Minimum
- 240
- Compatible Frames
- G
- Control Voltate Maximum
- 240
- UPC
- 786679992449
- GTIN
- 00786679992449
Show all specifications (3 more)
- Dimensions
- 2.9 in x 3.1 in x 5.5 in (Length/Depth x Height x Width)
- Weight
- 0.2
- Certification
- UL
Product description & additional details
1288C74G03
1288C74G03 is an auxiliary switch designed for use with GMCP breakers in Frame J-K, Series C applications. This switch provides reliable signal indication for breaker status in power distribution systems. The 1288C74G03 features a 1A-1B contact configuration, rated for 6A at 240V, and is mounted on the right side of compatible breakers. It is ideal for monitoring breaker position and integrating with control circuits in industrial and commercial installations.
- Part Number: 1288C74G03
- Manufacturer: Cutler Hammer
- Amperage Rating: 6A
- Voltage Rating: 240V
- Contact Configuration: 1A-1B
- Mounting Type: Right
- Frame Size: Frame J-K
- Series: Series C
- Used With: GMCP Breakers
- Application: Auxiliary Switch
Specifications
- Part Number: 1288C74G03
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Bell Alarm
- Family : Series C
- Type : C
- Voltage : 240VAC
- Amperage : 6
- Connection : Pigtail Lead
- Control Voltage Minimum : 240
- Compatible Frames : G
- Control Voltate Maximum : 240
Product Data
- UPC : 786679992449
- GTIN : 00786679992449
- Country of Origin : United States
- Dimensions : 2.9 in x 3.1 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : UL
