Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
GF225NA

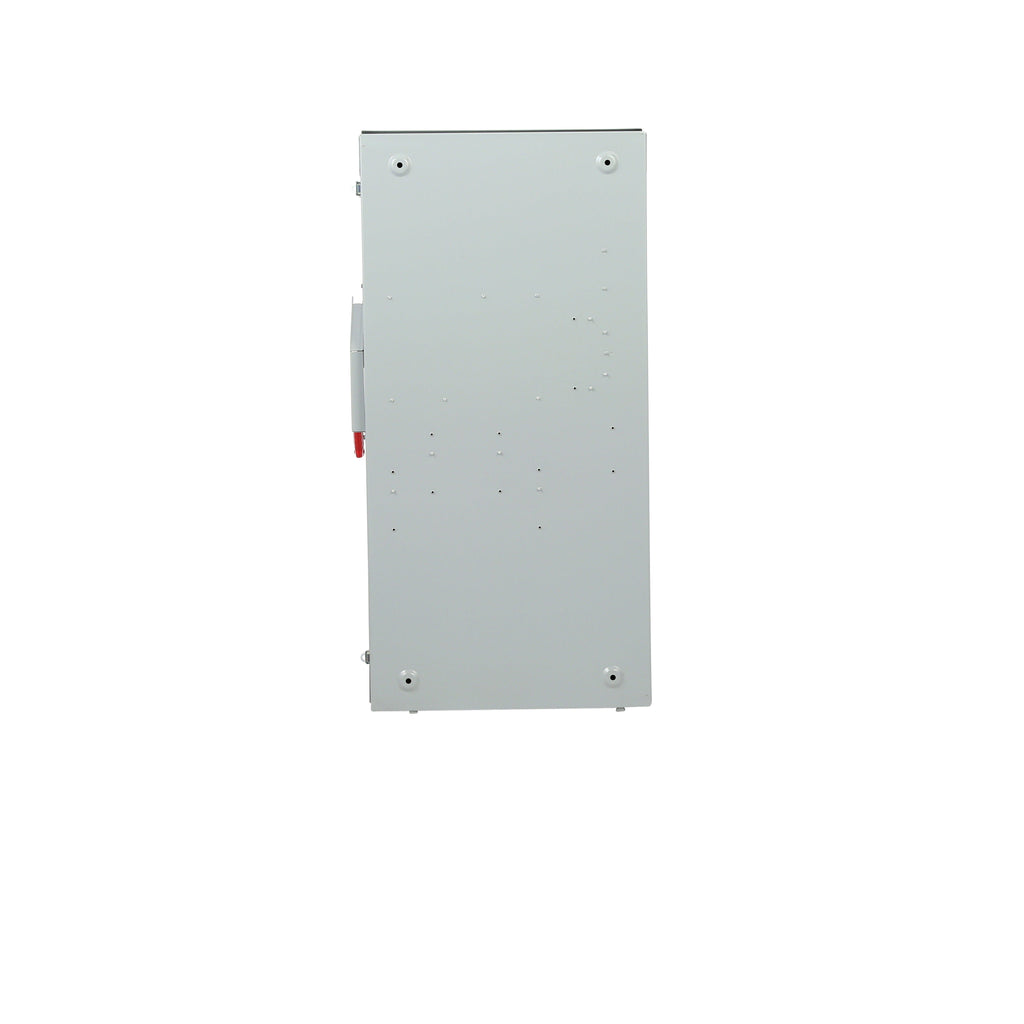

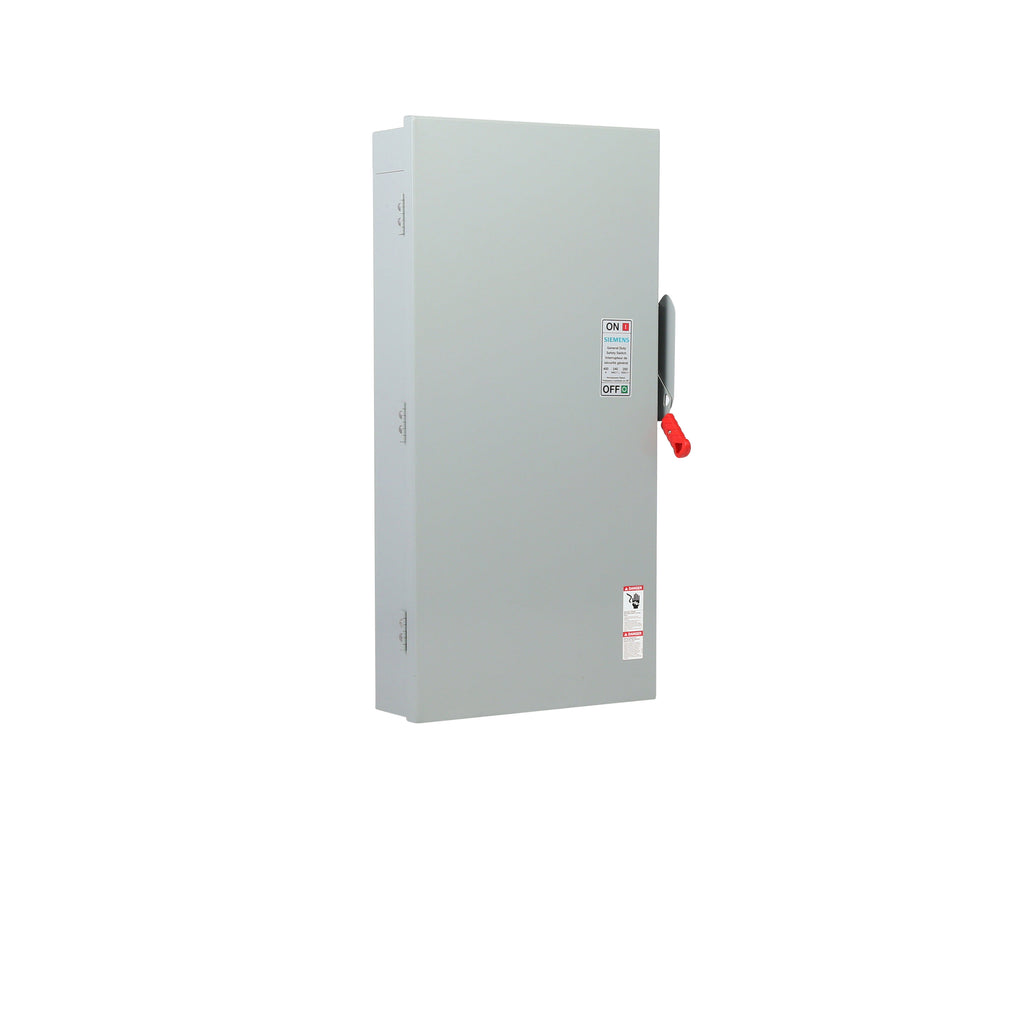

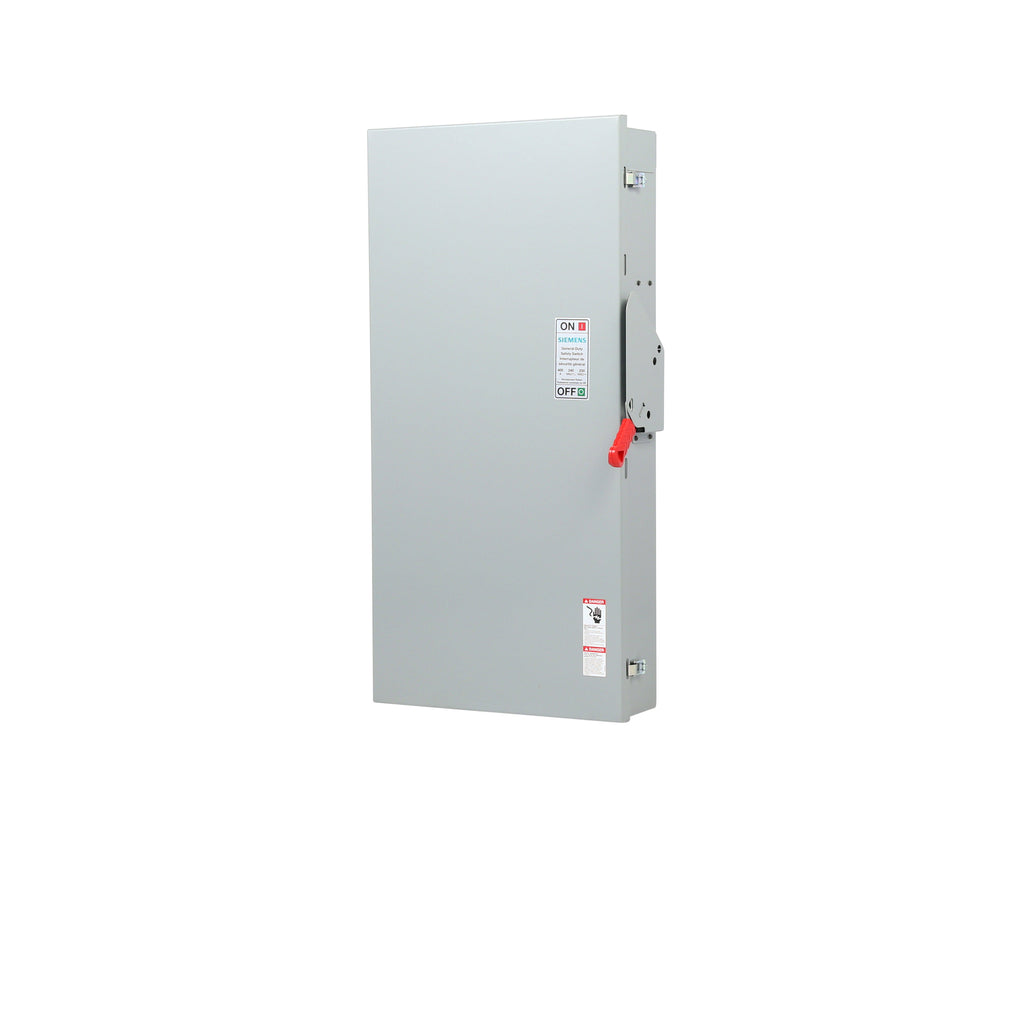

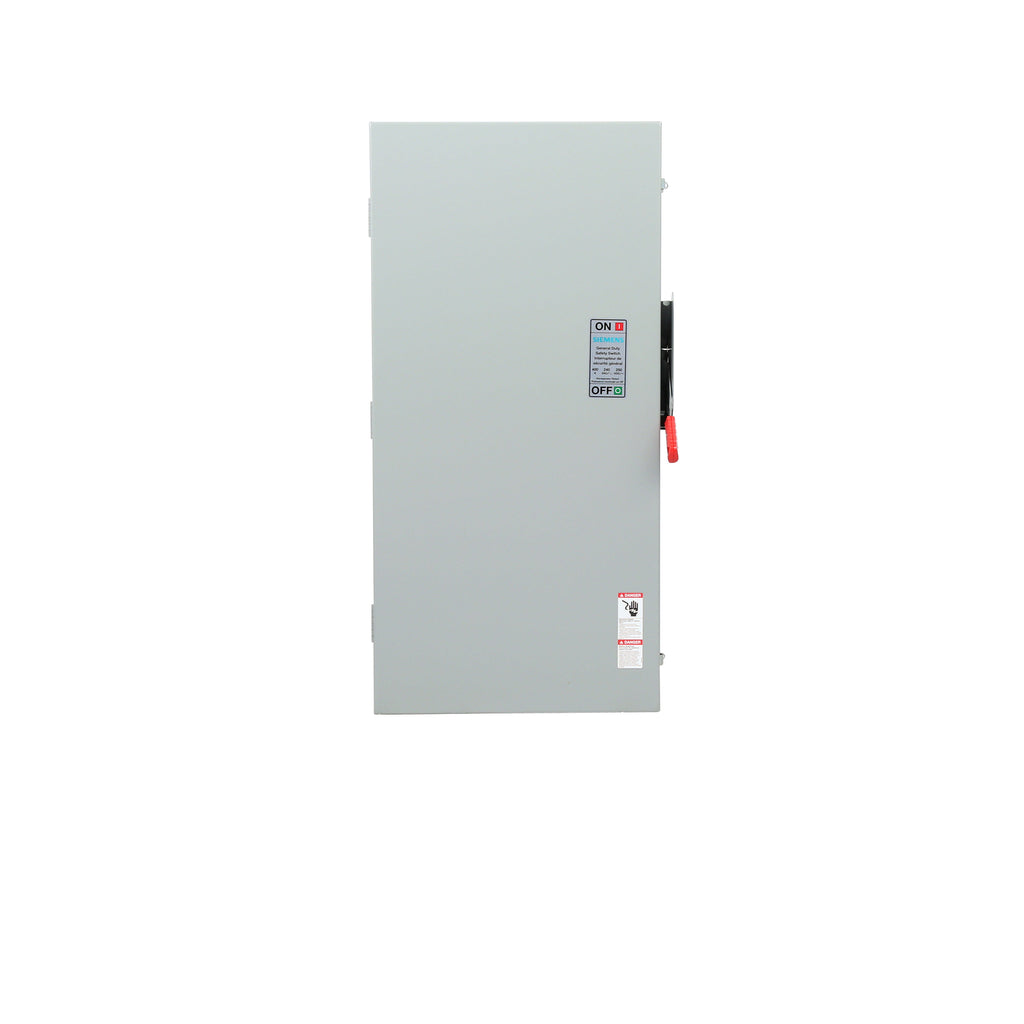

GF225NA is a Siemens 400 Amp, 240 Volt, 2-Pole fusible general duty safety switch designed for indoor use.GF225NA features a Type 1 enclosure with solid neutral and is rated for 100kA interrupting capacity at 480V. It is UL and CSA listed, meeting NEMA KS-1 standards, suitable for low voltage circuit protection applications requiring reliable disconnect and overcurrent protection.
- Key Specifications
- Amperage: 400A
- Voltage: 240VAC
- Poles: 2
- Mounting Type: Indoor, Type 1 enclosure
- Interrupt Rating: 100kA at 480V
- Switch Type: Fusible, General Duty
- Solid Neutral Included
- Certifications: UL Listed, CSA Listed
- Series/Frame: GF
- Phase: 3-wire
Specifications
- Part Number: GF225NA
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible
- Family : VBII Series
- Type : GF
- Voltage : 240 AC
- Amperage : 400
- Phase : 1
- Poles : 2
- AIC rating : 100kA@240V
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : Nema 1
- Compatible Frames : MEP
Product Data
- UPC : 887621872663
- GTIN : 00887621872663
- Country of Origin : Mexico
- Dimensions : 6.693 x 22.047 x 45.276 inch
- Weight : 91.084
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Certification : UL listed
