Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
GF223NR

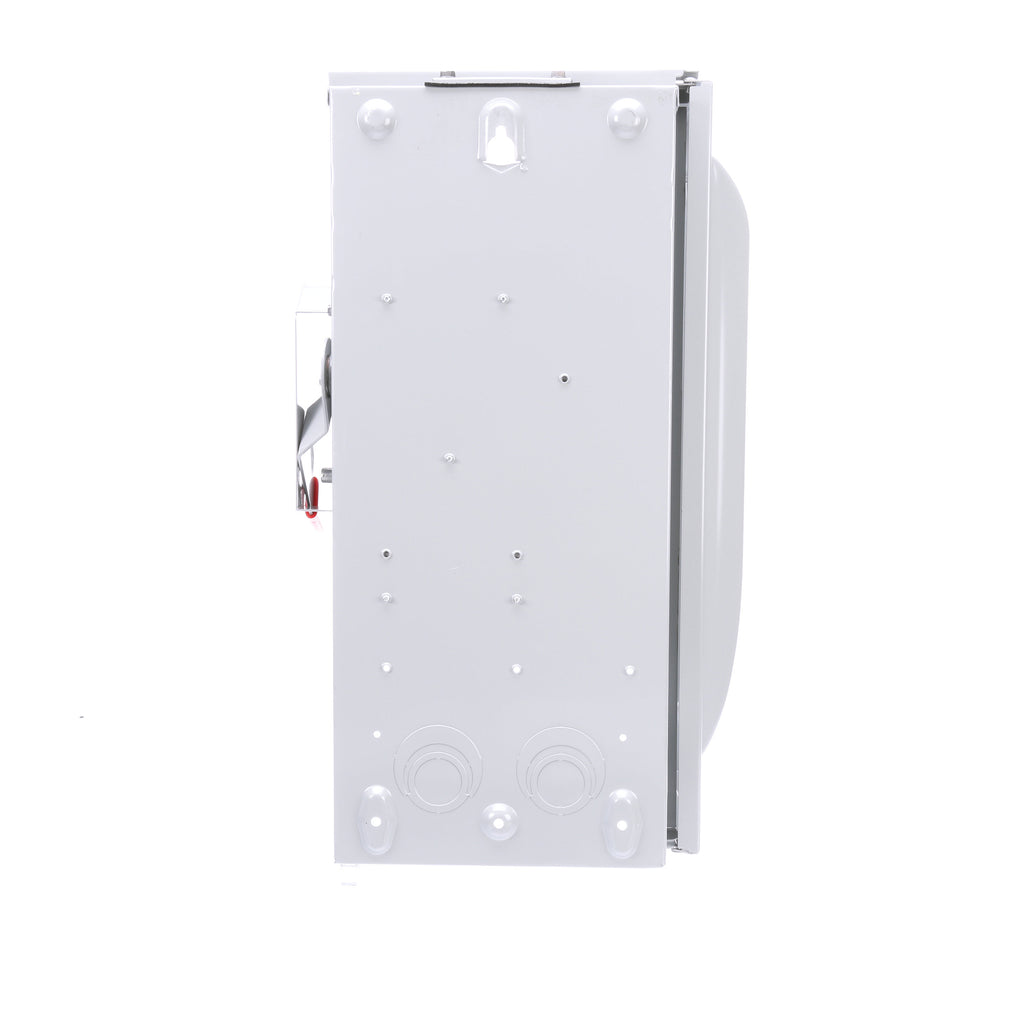

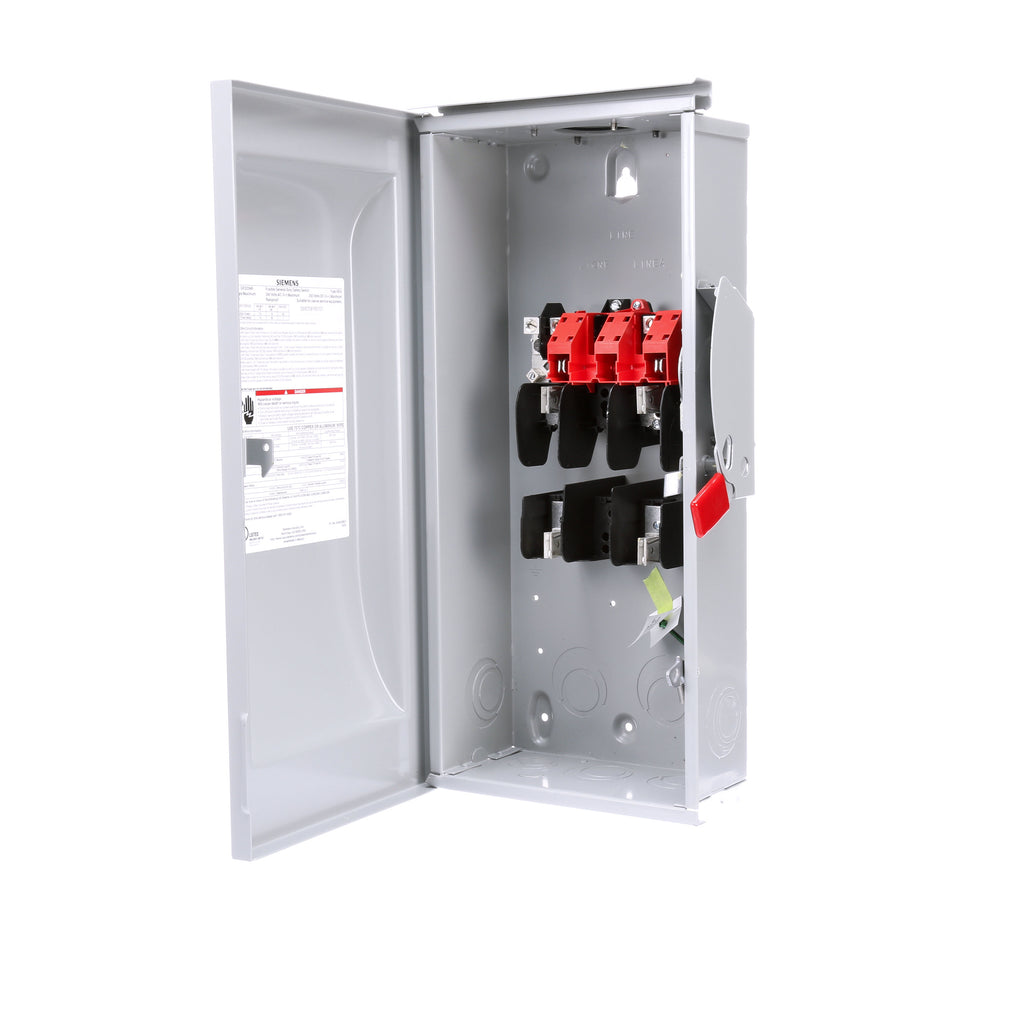

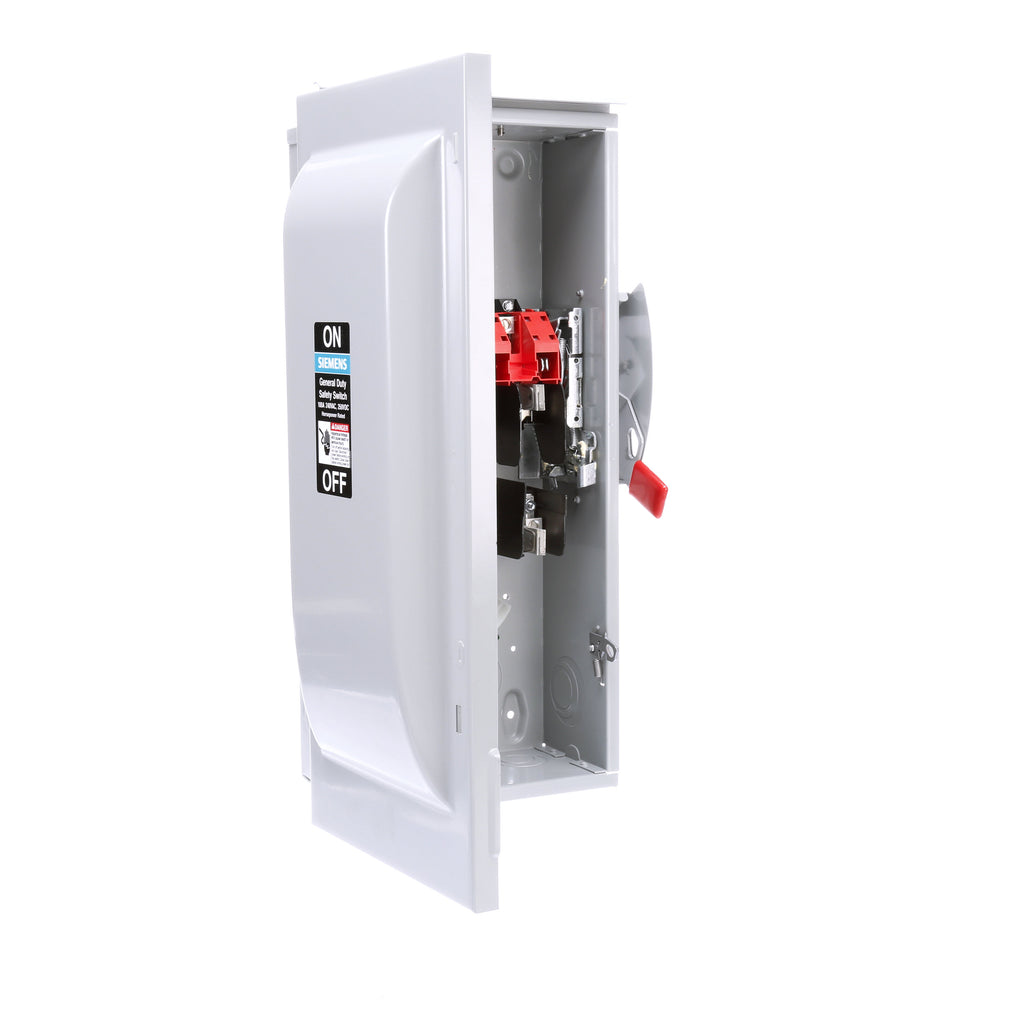

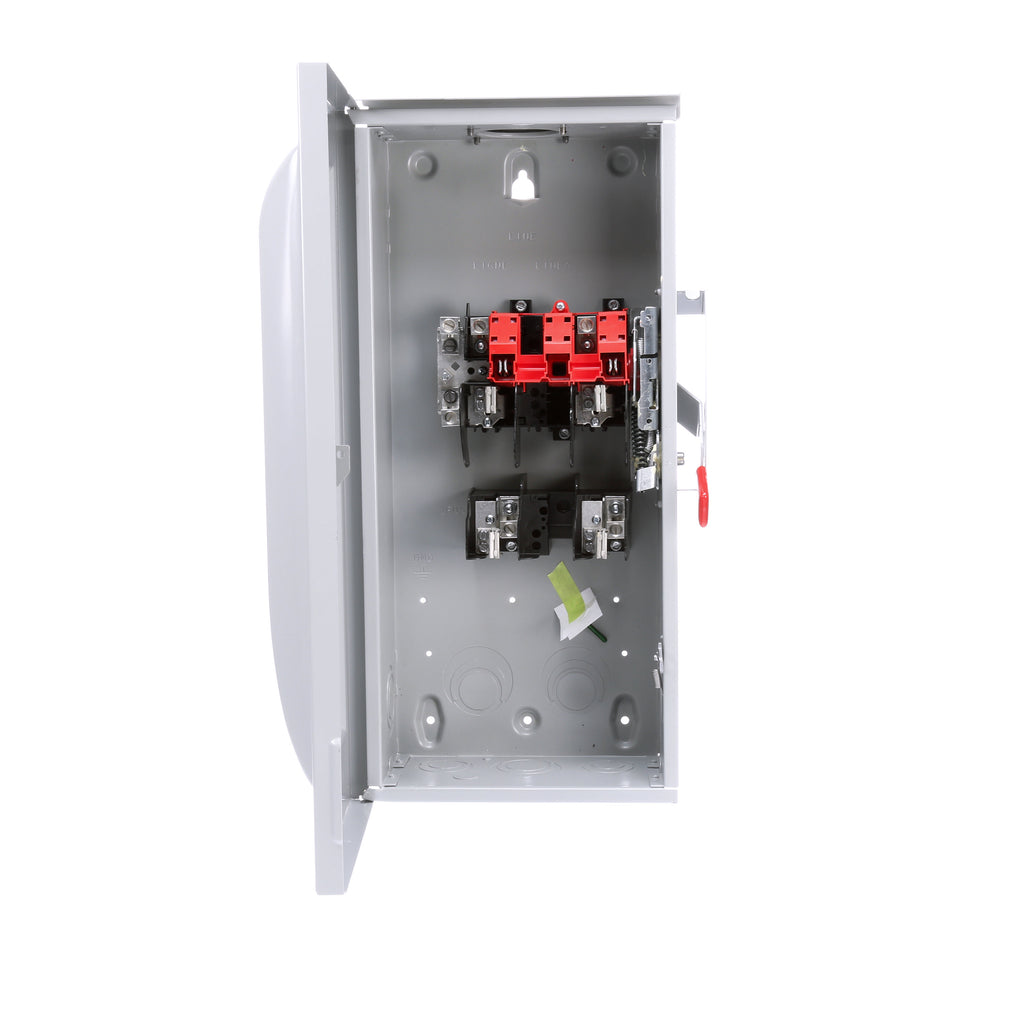

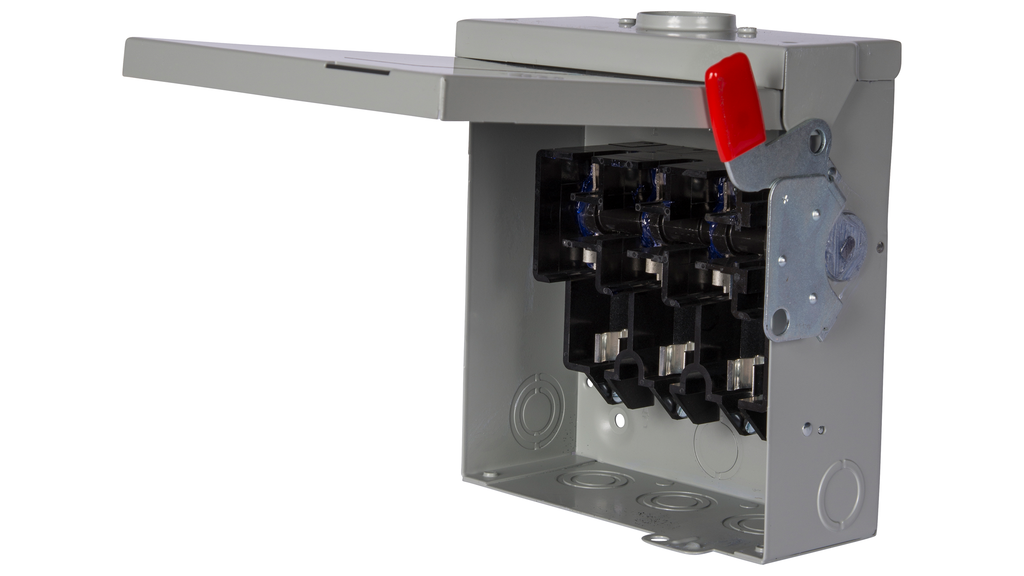

GF223NR - Siemens General Duty Fusible Safety Switch, 100A 2-pole rated for 240VAC/250VDC, NEMA 3R outdoor enclosure.GF223NR is a heavy-duty fusible disconnect switch from the Siemens GF series, designed for general duty applications as a service entrance or load disconnect, featuring surface mounting, mechanical lugs, and solid neutral construction in a steel Type 3R enclosure.
- Part Number: GF223NR
- Manufacturer: Siemens
- Series: GF
- Amperage: 100A
- Voltage: 240VAC / 250VDC
- Poles: 2
- Wires: 3
- Fusible: Class H/K/R/T Time Delay
- NEMA Rating: 3R
- Mounting: Surface
- Certifications: UL98
- Mechanical Service Life: 10000 cycles
Specifications
- Part Number: GF223NR
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible
- Family : VBII Series
- Type : GF
- Voltage : 240 AC
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 100kA@240V
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : Nema 3R
- Compatible Frames : MEP
Product Data
- UPC : 783643149229
- GTIN : 00783643149229
- Country of Origin : Mexico
- Dimensions : 25.591 x 13.78 x 7.48 inch
- Weight : 20.635
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Certification : UL listed
