Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD63M100

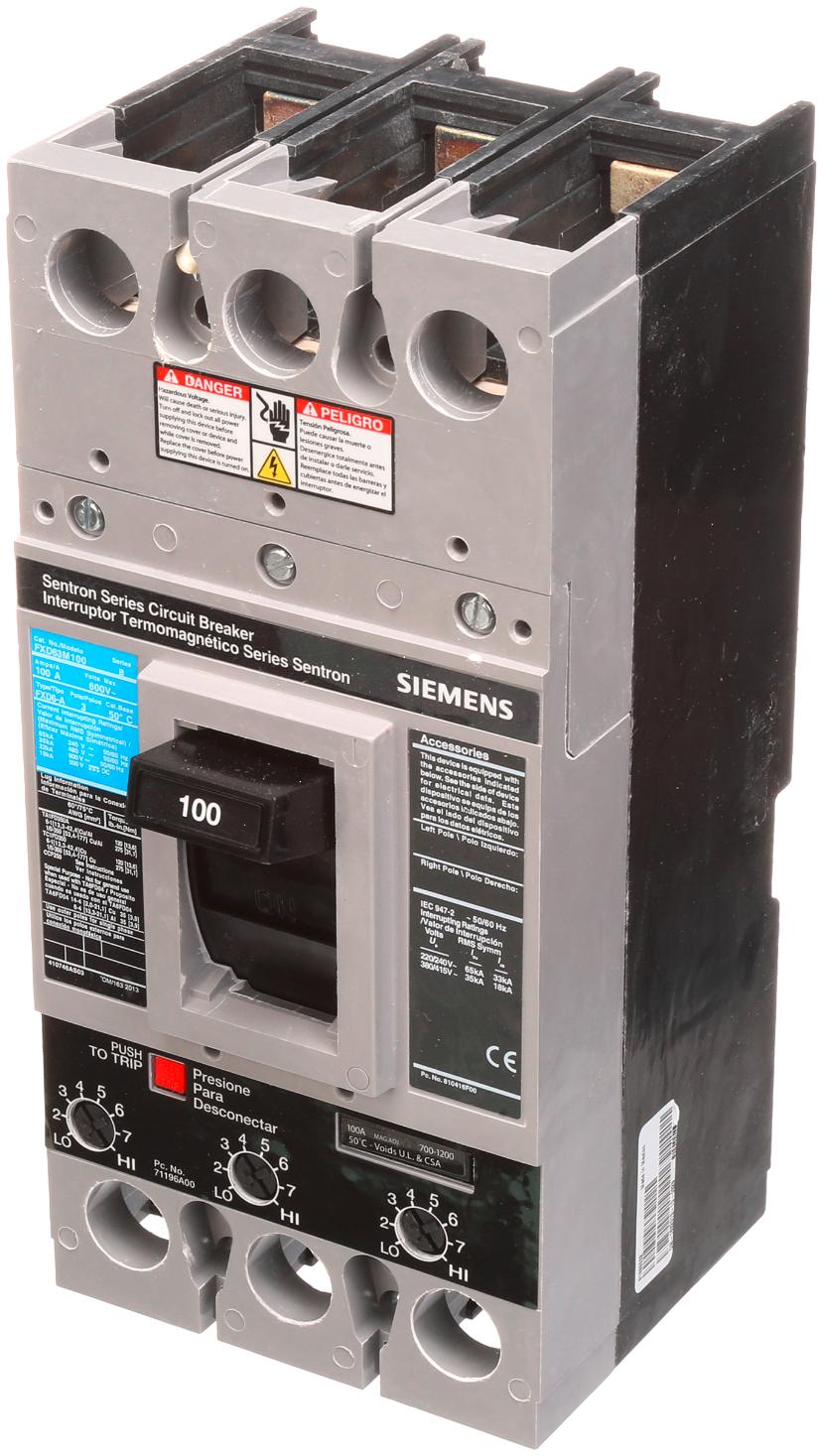

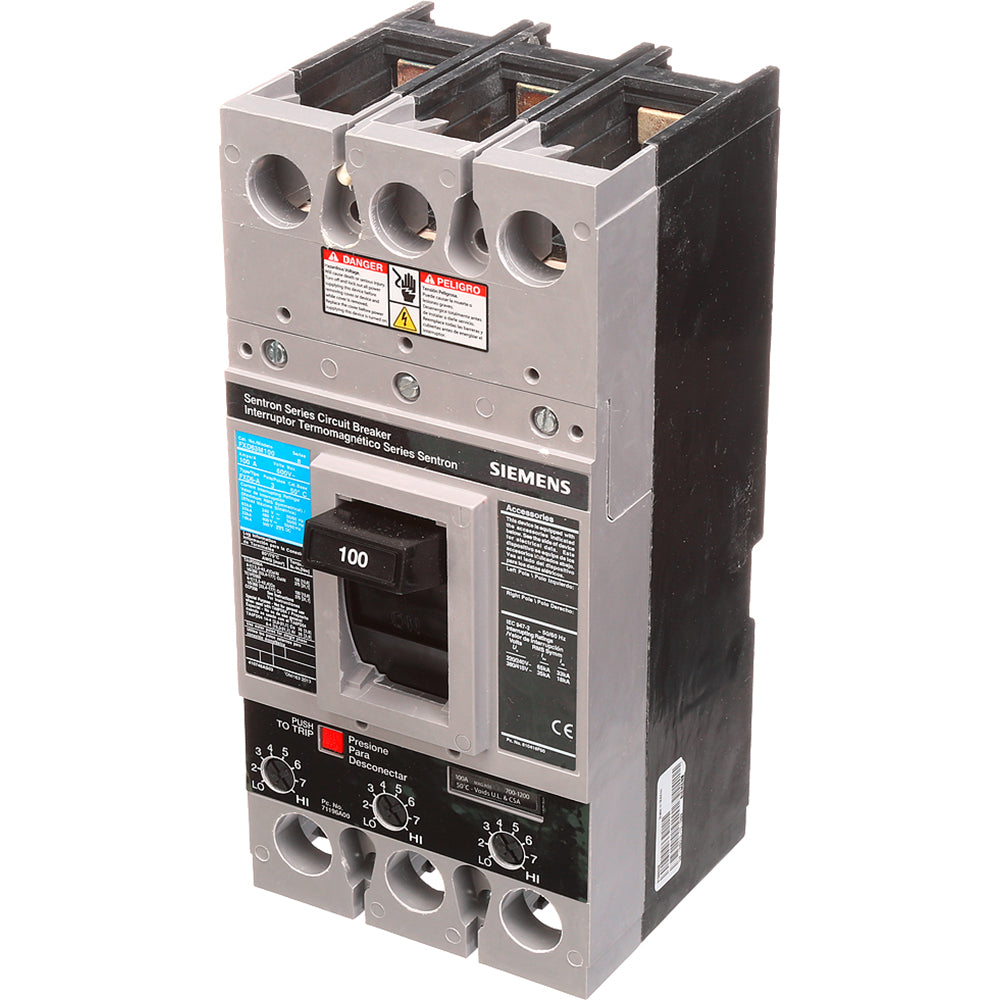

FXD63M100 is a 3 pole, 100 amp, 600 volt molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This Siemens FD frame breaker features a thermal magnetic trip unit, bolt-on mounting, and is rated for 35kA interrupting capacity at 480V and 22kA at 600V. It is suitable for use in a wide range of applications requiring robust circuit protection and easy installation.
- Part Number: FXD63M100
- Manufacturer: Siemens
- Amperage: 100A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA @ 480V, 22kA @ 600V
- Series/Frame: FD Frame
- Phase: 3-Phase
- Trip Unit: Thermal Magnetic
- Standards: UL Listed
- Application: Commercial & Industrial Power Distribution
Specifications
- Part Number: FXD63M100
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643006232
- GTIN : 00783643006232
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 8.501
- Certification : UL, CSA, IEC
