FXD63B200L - Siemens 3 Pole 200 Amp 600V Molded Case Circuit Breaker, Sentron FXD Frame, Bolt-On, 35kA Interrupt, Thermal Magnetic Trip, UL Listed

FXD63B200L

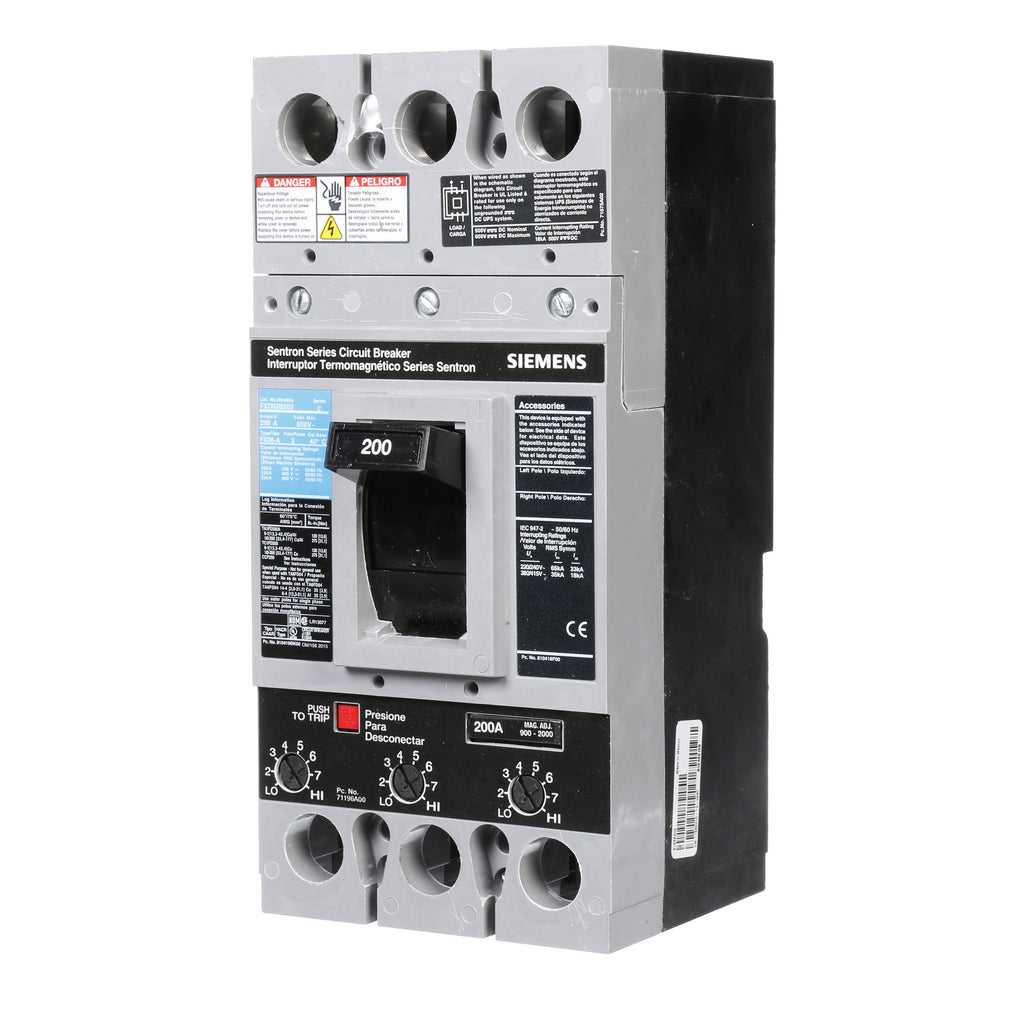

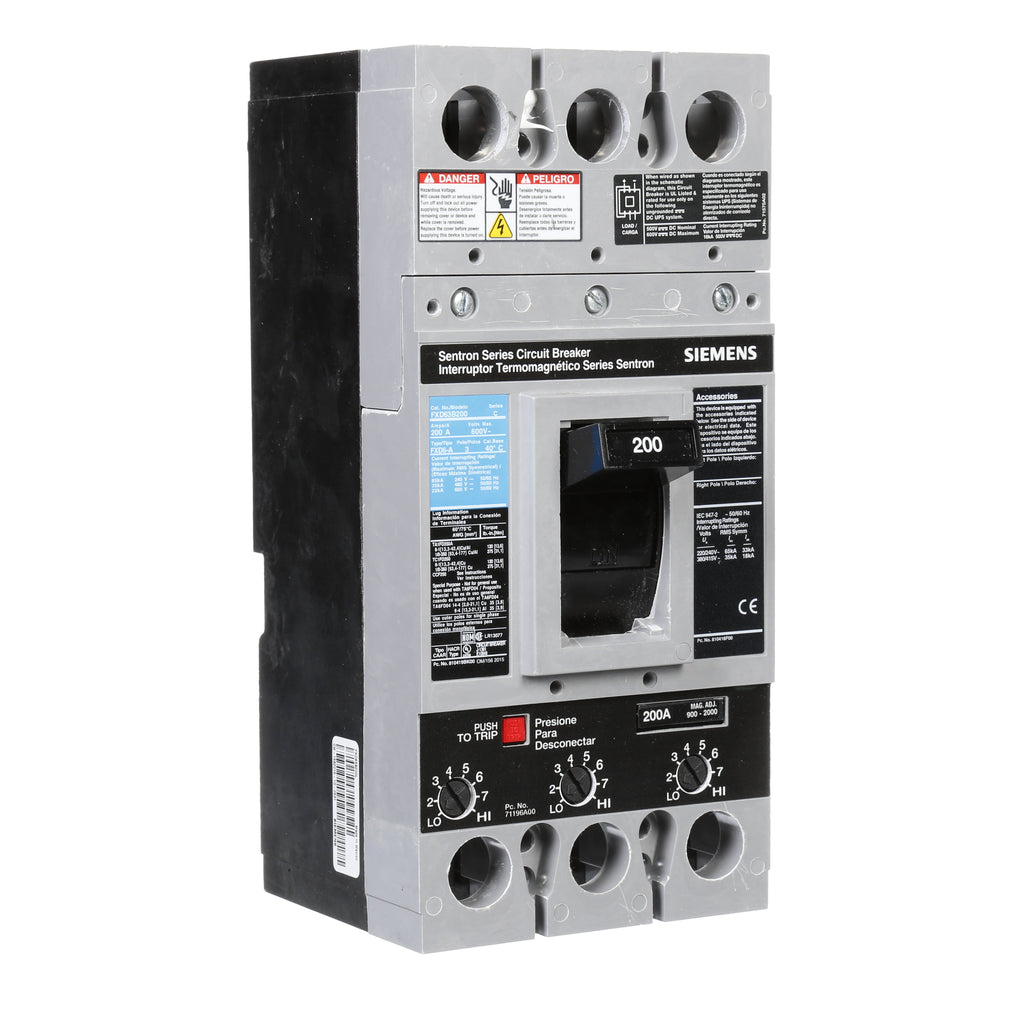

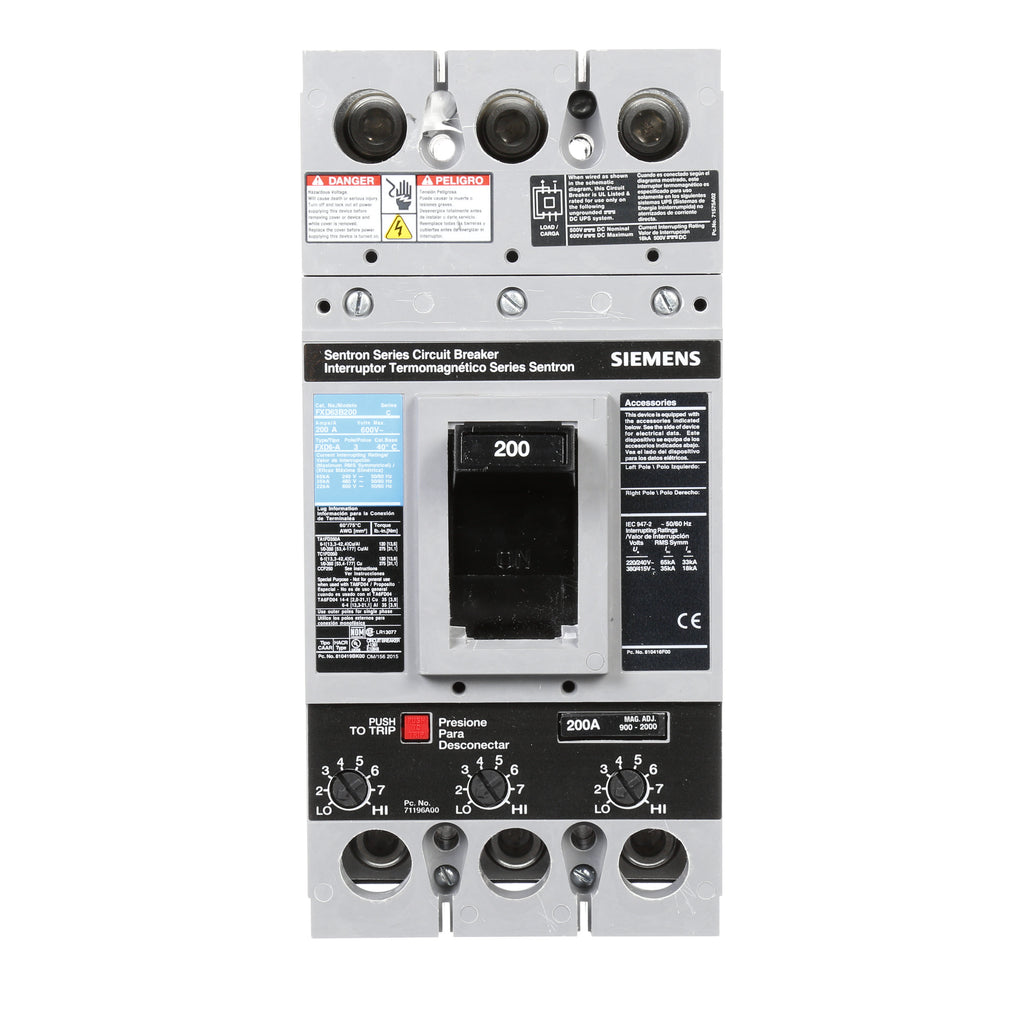

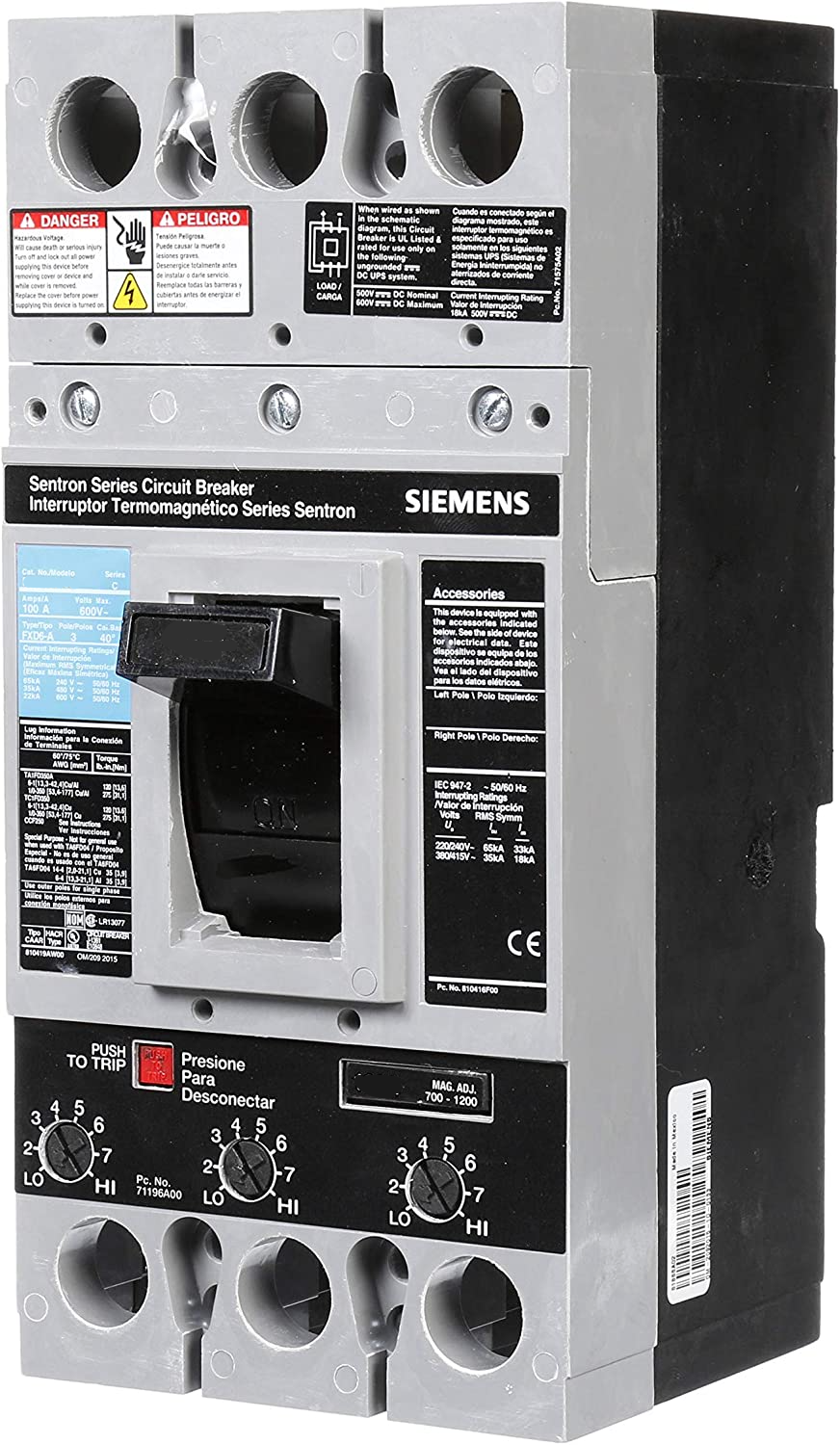

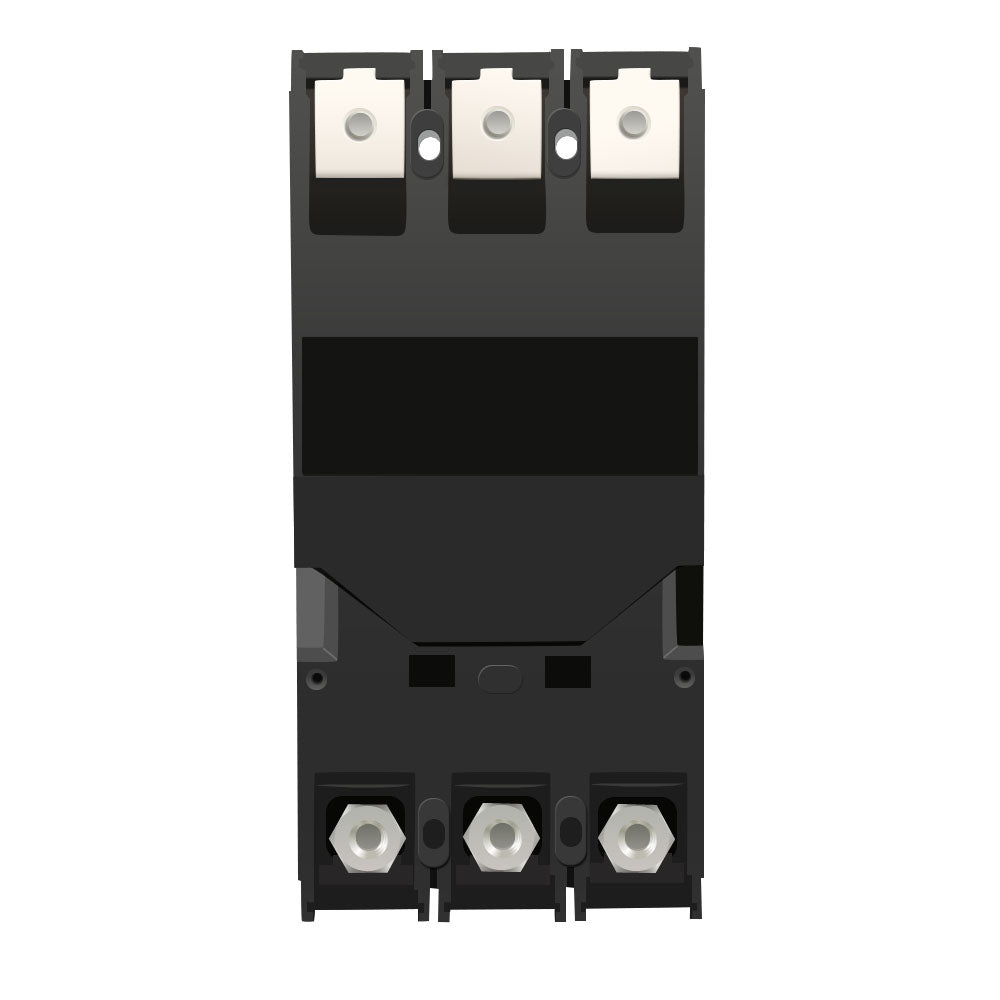

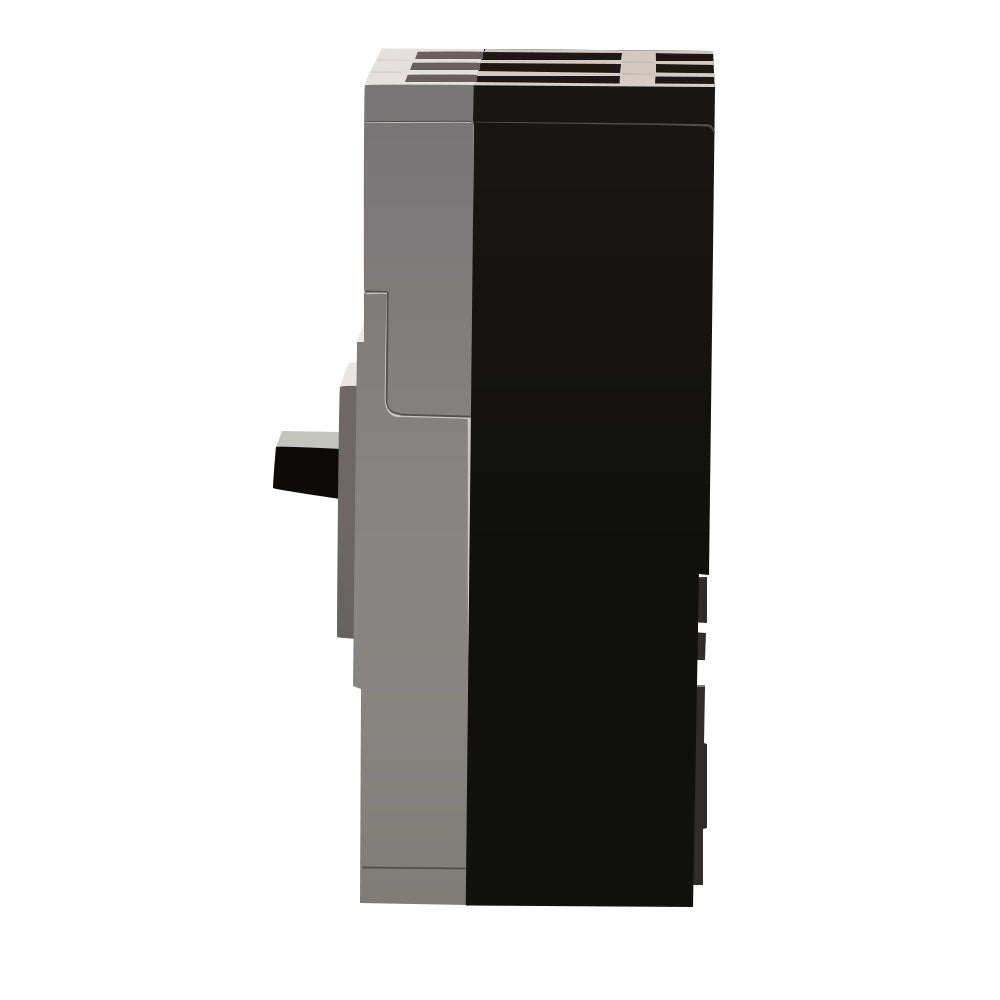

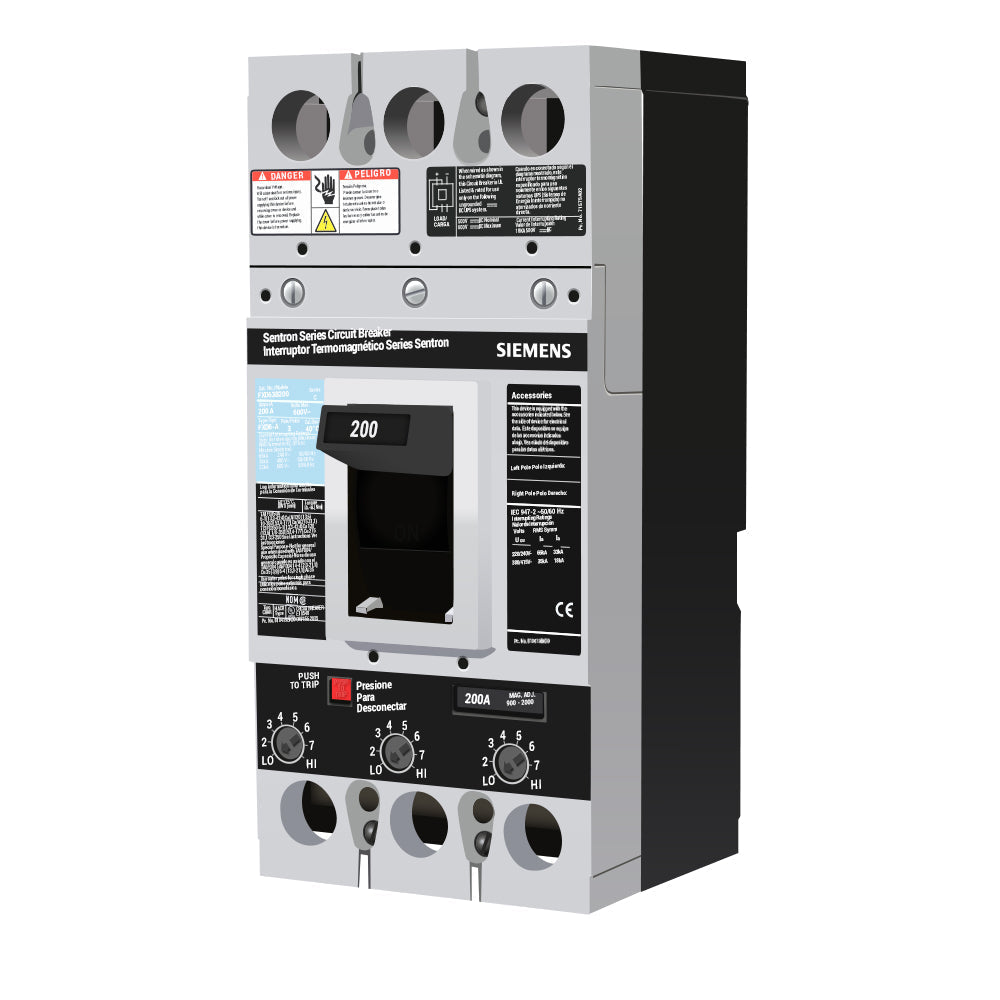

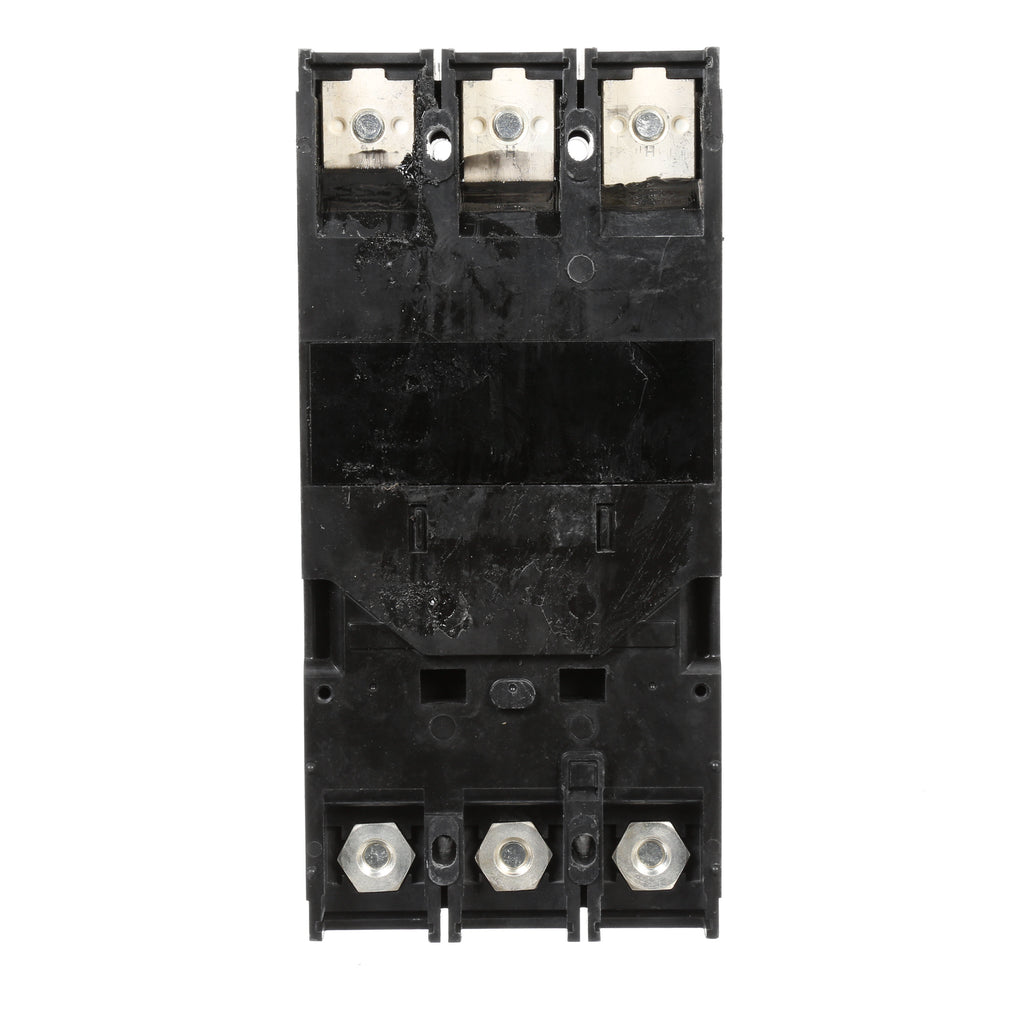

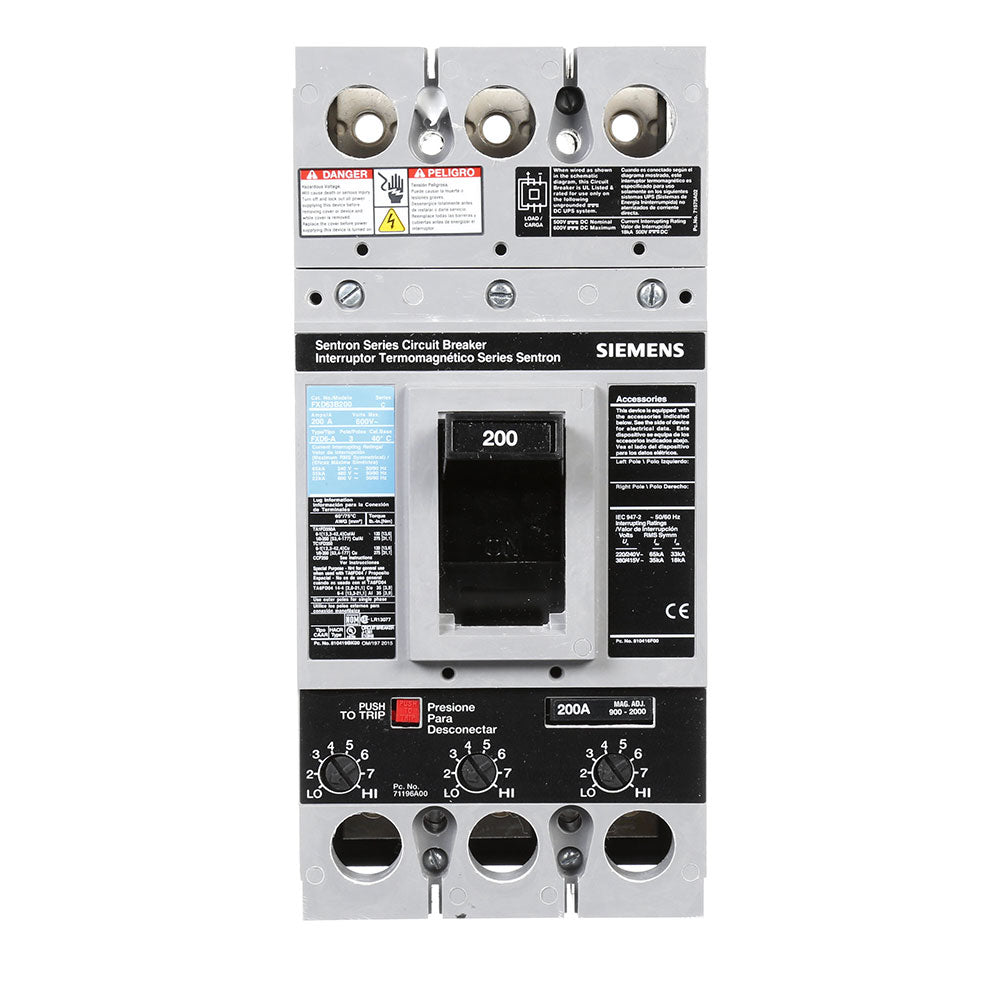

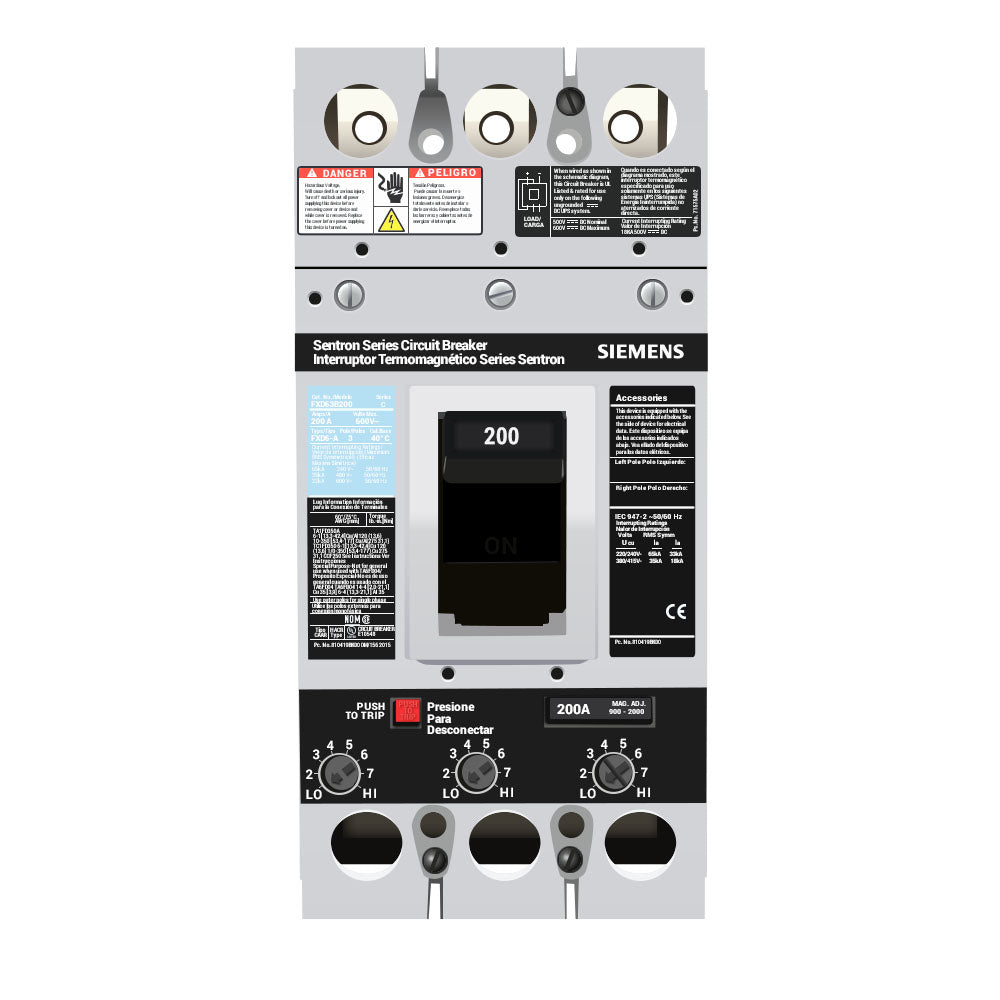

FXD63B200L is a Siemens Sentron Series molded case circuit breaker designed for industrial and commercial power distribution applications.

This 3-pole, 3-phase thermal magnetic breaker features a 200-ampere rating at 600V AC with an FD frame design. It incorporates a non-interchangeable trip unit with long-time and instantaneous trip functions, making it suitable for reverse-fed applications. The breaker is rated for 50/60 Hz operation and includes line and load side lug terminals for flexible installation configurations.

• Amperage Rating: 200A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Phase: 3-Phase
• Series/Frame: Sentron FXD6, FD Frame
• Trip Type: Thermal Magnetic
• Interrupt Rating: 22 kA at 600V, 35 kA at 480V
• Trip Range: 900 to 2000A
• Temperature Rating: 40 degrees C
• Connection Type: Line/Load Lug
• Mounting Type: Freestanding/Bolt-on
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: FXD63B200L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FXD
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643006003
• GTIN : 00783643006003
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 9.248
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
