Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

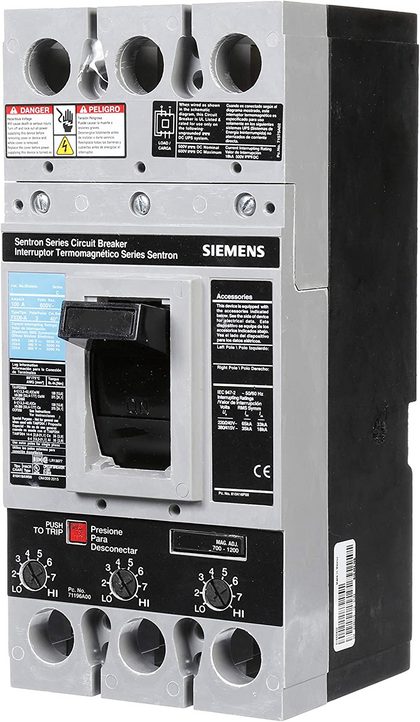

FXD63B150L
FXD63B150L is a Siemens Sentron Series molded case circuit breaker featuring thermal-magnetic protection.FXD63B150L is a 3-pole, 150A breaker rated at 600V with bolt-on mounting and standard interrupting capacity including 35kA at 480V and 22kA at 600V. It provides long-time and instantaneous trip functions at 40 degrees C, UL listed for reverse feed applications, with non-interchangeable trip unit and no lugs installed.
- Part Number: FXD63B150L
- Manufacturer: Siemens
- Series/Frame: Sentron FXD / FD
- Poles: 3
- Amperage: 150A at 40C
- Voltage: 600VAC
- Phase: 3
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic, LI (Long-Time/Instantaneous)
- Interrupt Rating: 35kA@480V, 22kA@600V
Additional Information
Line and load side lugs included (TA1FD350A)
Specifications
- Part Number: FXD63B150L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643005884
- GTIN : 00783643005884
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 9.445
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Certification : UL, CSA, IEC
- Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
