Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD63B150

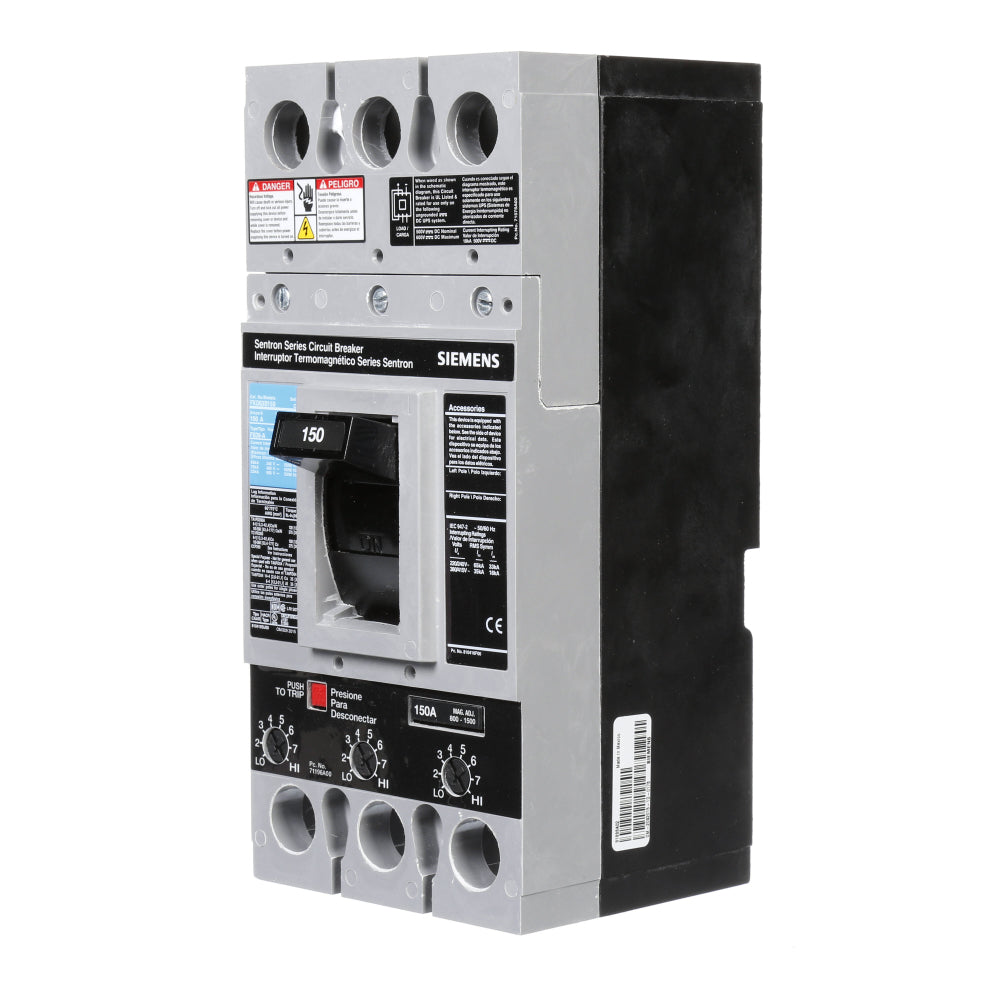

FXD63B150 - Siemens Sentron Series molded case circuit breaker, type FXD, 3-pole, 150A, 600V, thermal magnetic trip with LI functions.Siemens FXD63B150 features FD frame, bolt-on mounting, standard interrupting capacity rated 35kA at 480V and 22kA at 600V, non-interchangeable trip unit, 40 degree C temperature rating, and UL listed for reverse feed applications. No lugs installed.
- Part Number: FXD63B150
- Manufacturer: Siemens
- Series: Sentron
- Type: FXD
- Frame: FD
- Poles: 3
- Amperage: 150A
- Voltage: 600V
- Phase: 3
- Mounting: Bolt-On
- Trip Type: Thermal Magnetic
- Trip Functions: LI
- Interrupt Rating: 35kA@480V, 22kA@600V
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: FXD63B150
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 250A/FD
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 783643211254
- GTIN : 00783643211254
- Country of Origin : Mexico
- Dimensions : 10.827 x 5.433 x 6.85 inch
- Weight : 8.88 lb
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Standards : UL Listed
- Certification : UL, CSA, IEC
