2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
FHP360901021

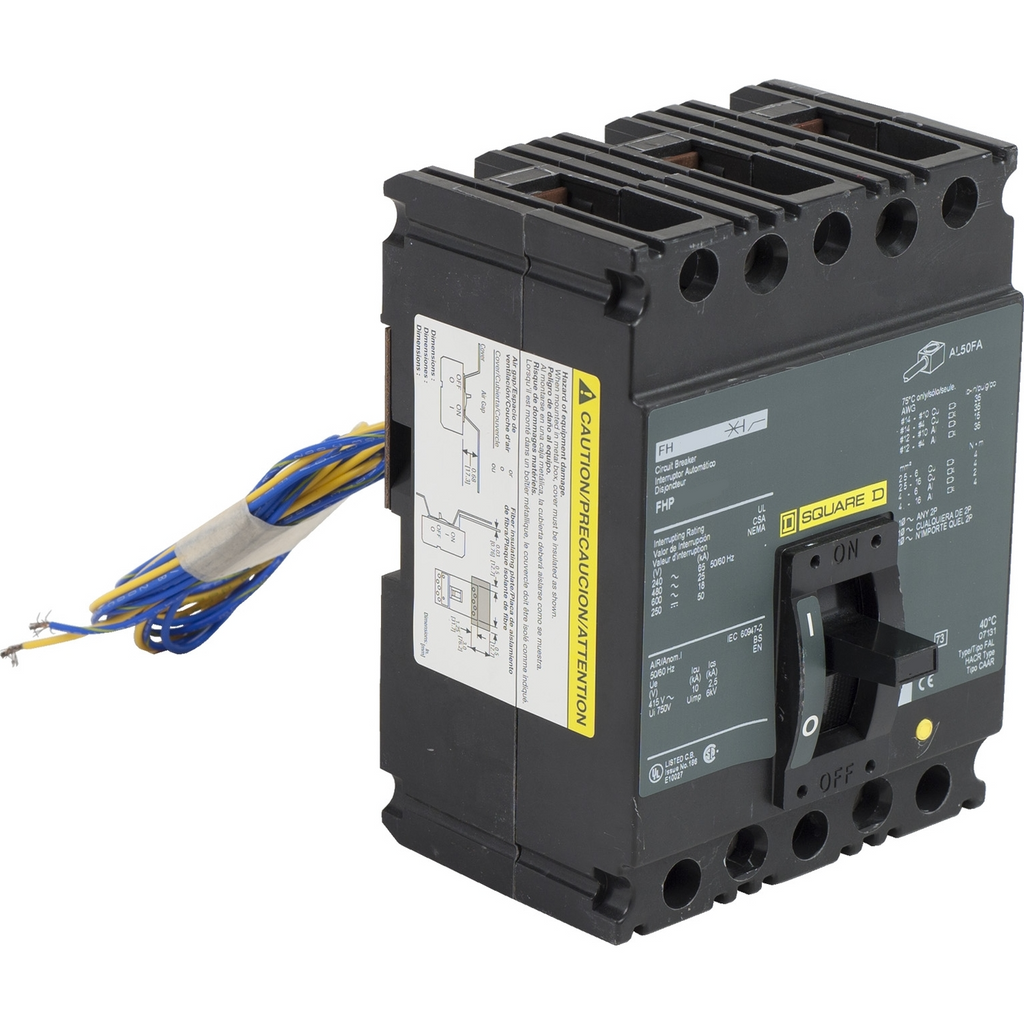

FHP360901021 is a Square D 90 Amp, 600 Volt, 3 Pole circuit breaker featuring an internally mounted 120V shunt trip for enhanced control and safety.
This molded case circuit breaker is designed for line and load type panel mounting and provides reliable thermal-magnetic protection. It has a high interrupting rating suitable for demanding electrical environments, with interrupt ratings up to 65kA at 240VAC, 25kA at 480VAC, and 18kA at 600VAC. The breaker includes a single handle with internal common trip and is UL listed and CSA certified for safety and performance.
- Amperage: 90 Amp
- Voltage Rating: 600 Volt
- Poles: 3
- Mounting Type: Line and Load Type Panel Mount
- Interrupt Rating: 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC
- Trip Unit: Thermal-Magnetic with 120V Shunt Trip
- Frame/Series: FAL Frame
- Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
complete with 120/240Vac shunt trip
Specifications
- Part Number: FHP360901021
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FHP Series
- Type : FHP
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 5
