Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FHP36090

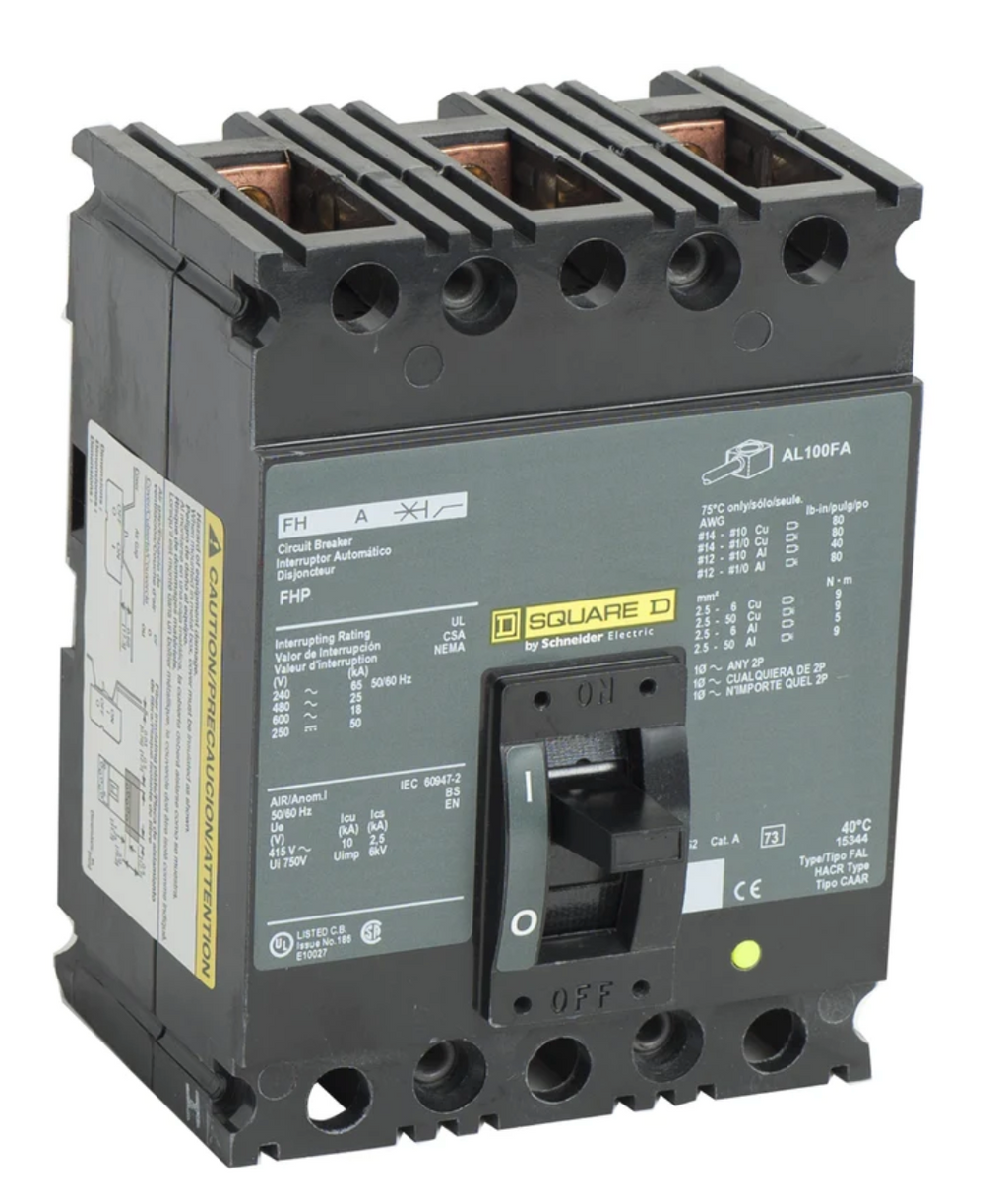

FHP36090 is a 3 pole, 90 amp, 600 volt molded case circuit breaker from Square D designed for reliable circuit protection.This thermal magnetic type breaker features a bolt-on mounting style with an F frame, suitable for industrial and commercial applications. It has a high interrupting rating of 25kA at 480VAC and is UL and CSA certified. The breaker supports up to 600V AC and 250V DC voltage ratings, with lug (off end) terminals for secure connections.
- Amperage: 90A
- Voltage Rating: 600V AC / 250V DC
- Poles: 3
- Interrupting Rating: 25kA at 480VAC
- Frame Type: F Frame
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic
- Terminal Type: Lug (Off End)
- Certifications: UL, CSA
- Model Series: FHP
- Dimensions: 4.5" W x 4.13" D x 6" H
Specifications
- Part Number: FHP36090
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FHP Series
- Type : FHP
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901910367
- Country of Origin : Mexico
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 5
