Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FHL26070

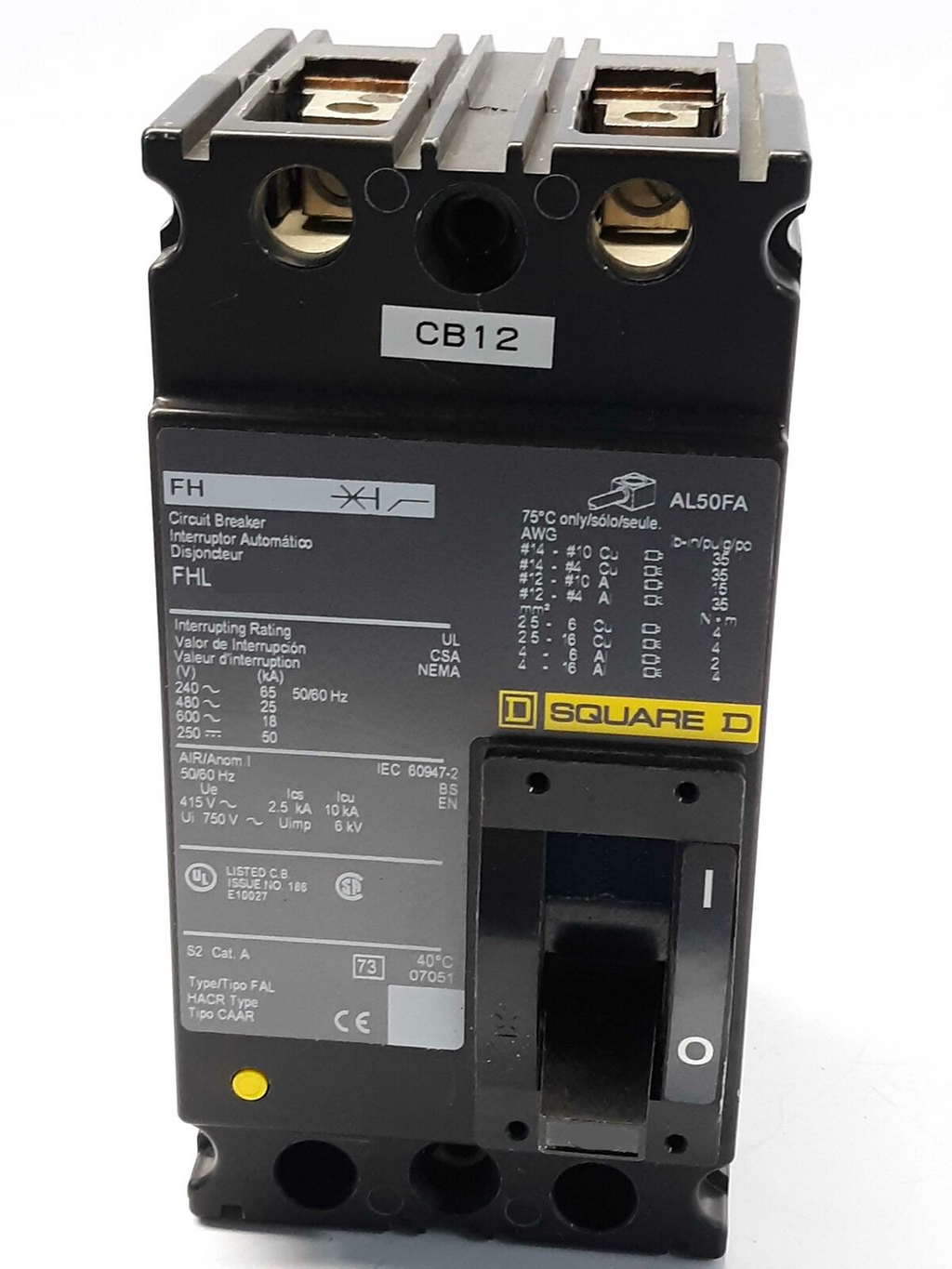

FHL26070 is a Square D 2-pole molded case circuit breaker rated for 70 amps and 600 volts, designed for reliable circuit protection.This thermal magnetic type circuit breaker features a 25kA interrupting rating at 480V and is part of the FHL series with an F frame. It supports line and load lug terminals and is UL and CSA certified for safety and performance. The breaker is suitable for AC voltages up to 600V and DC voltages up to 250V, making it versatile for various industrial and commercial applications.
- Amperage: 70A
- Voltage Rating: 600V AC / 250V DC
- Poles: 2
- Interrupting Rating: 25kA at 480V AC
- Type: Thermal Magnetic
- Frame: FHL (F Frame)
- Terminal Type: Line and Load Lugs
- Certifications: UL, CSA
- Mounting: Molded Case
- Dimensions: Approx. 3" W x 4.13" D x 6" H
Specifications
- Part Number: FHL26070
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FHL Series
- Type : FHL
- Voltage : 600
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901185369
- Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 3.35
