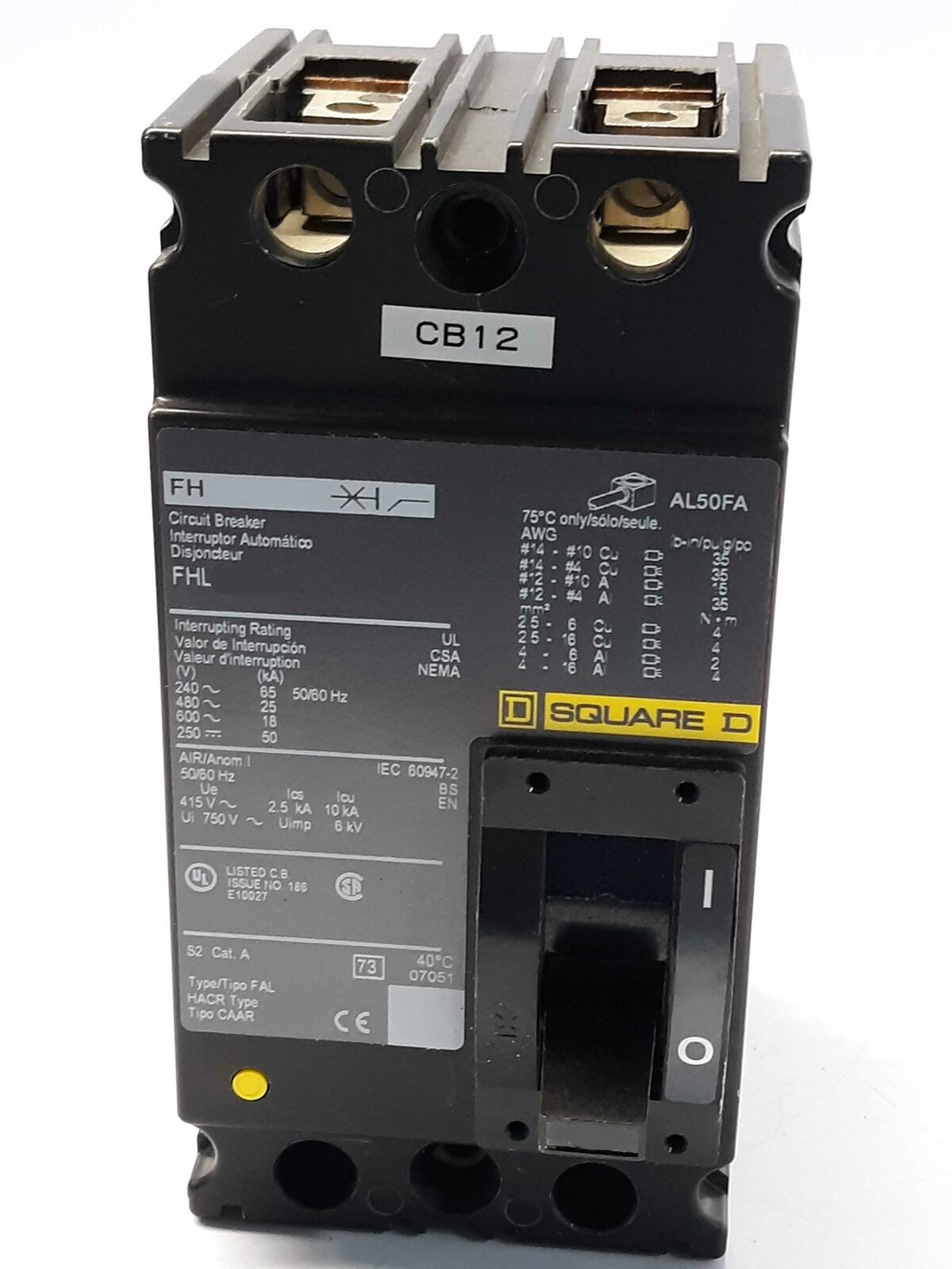

FHL26030 - Square D 30A 600V 2 Pole Circuit Breaker FHL Frame 25kAIC@480V Thermal Magnetic

FHL26030

FHL26030 is a 2 pole, 30 amp, 600 volt circuit breaker from Square D designed for reliable power distribution protection.This Square D FHL26030 circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions. It has a 25kA interrupting rating at 480V AC and is built on the FHL frame type. The breaker supports feed-thru mounting with line and load side lug terminals, suitable for 1 phase applications. It is HACR rated and UL listed for safety and compliance.

• Amperage: 30A
• Voltage: 600V AC
• Number of Poles: 2
• Frame Type: FHL
• Interrupt Rating: 25kA at 480V
• Trip Unit: Thermal Magnetic (Long Time & Instantaneous)
• Mounting Type: Feed-Thru
• Phase: Single Phase
• Certifications: UL Listed, HACR Rated
• Line & Load Side Lug Terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FHL26030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FHL Series
• Type : FHL
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901368557
• GTIN : 00785901368557
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3.55
• Certification : UL LISTED-CSA
