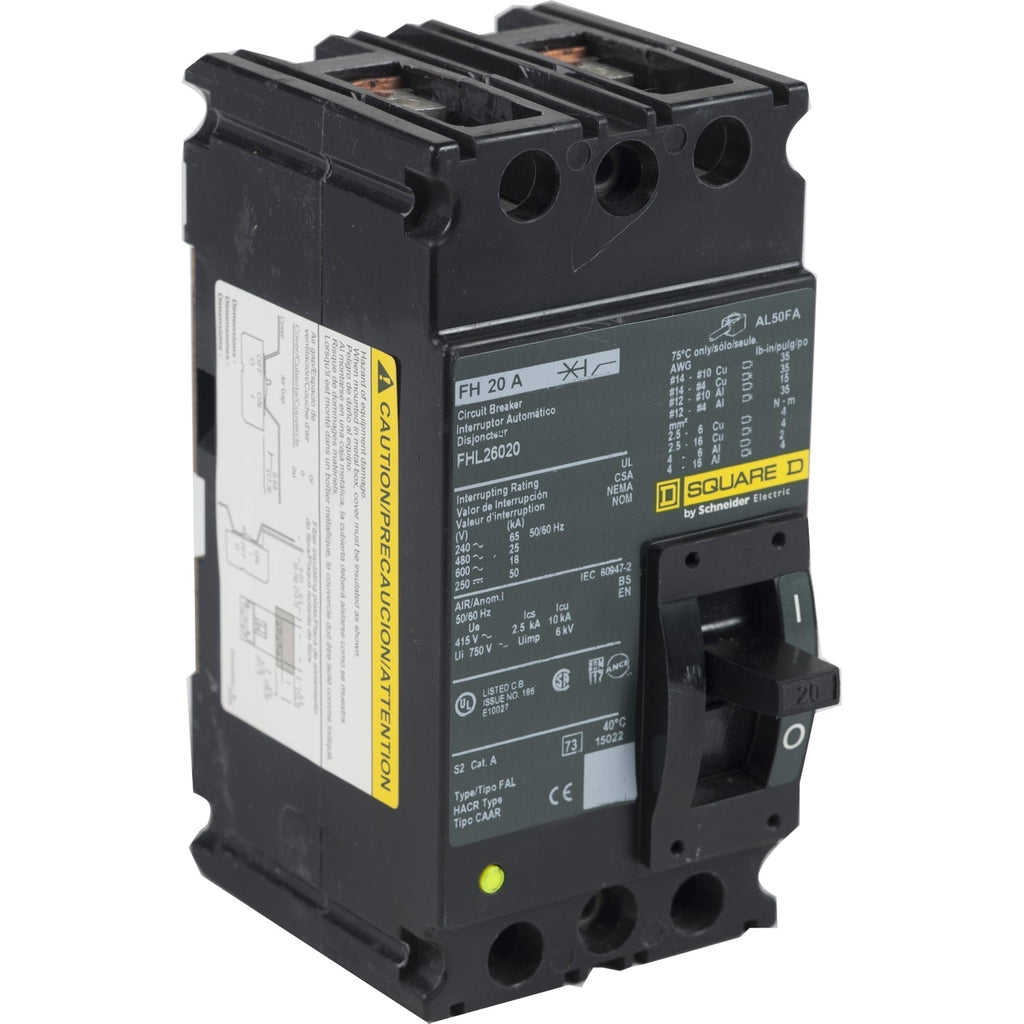

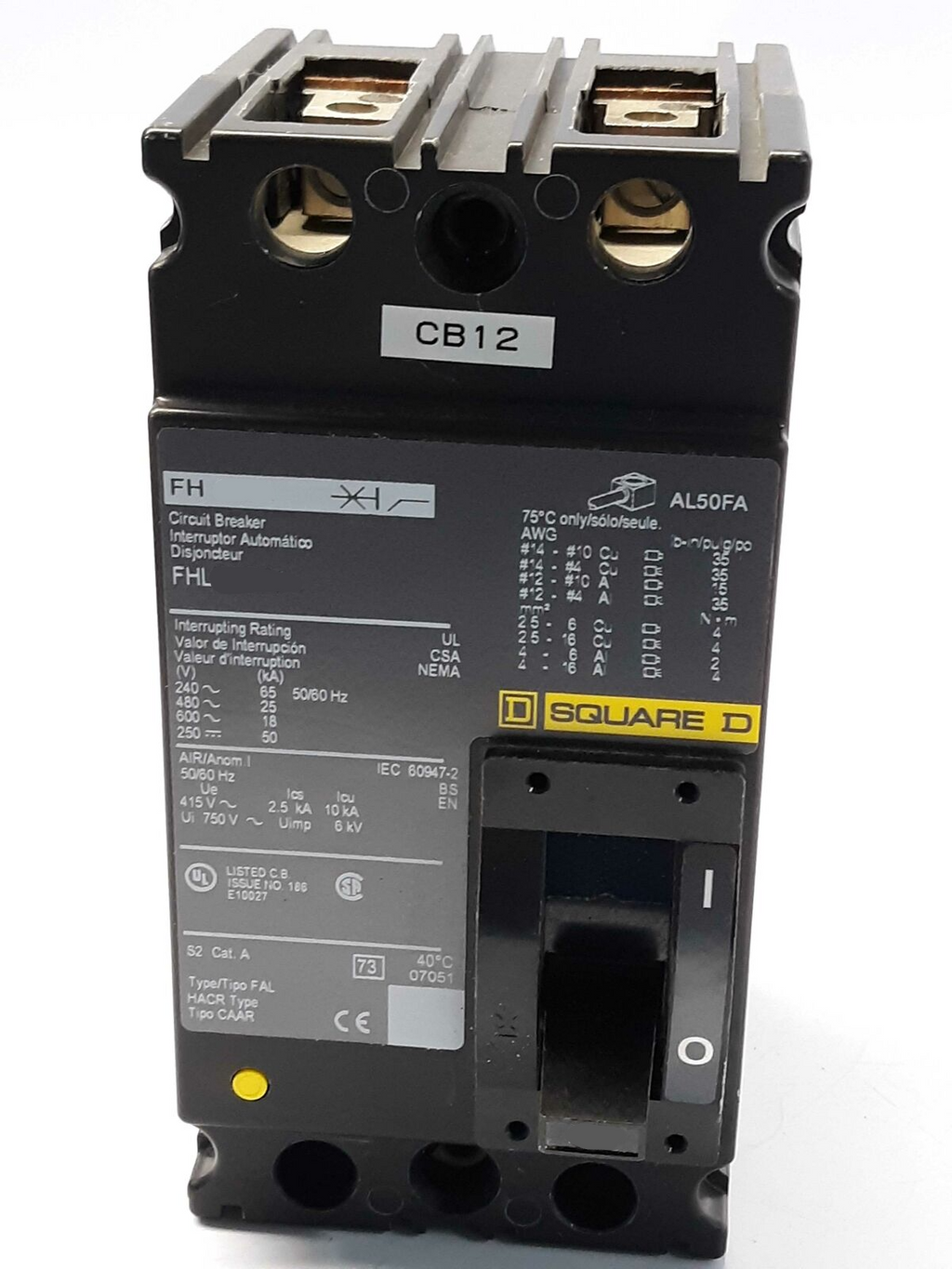

FHL26020 - Square D 20A 600V 2 Pole Molded Case Circuit Breaker F Frame Thermal Magnetic

FHL26020

FHL26020 is a 2 pole, 20 amp, 600 volt molded case circuit breaker designed for reliable protection in commercial and industrial applications. This Square D FHL26020 circuit breaker features a thermal magnetic trip unit, F frame, and high interrupting capacity for robust performance. It is suitable for use in panelboards and switchgear requiring feed-thru connections with line and load side lug terminals.

• 20 Ampere Current Rating
• 600 Volt AC Maximum Voltage Rating
• 2 Pole Configuration
• F Frame Type
• Thermal Magnetic Trip Unit
• 25 kA Interrupting Rating at 480V AC
• 65 kA Interrupting Rating at 240V AC
• Feed-Thru Mounting Type
• Line and Load Side Lug Terminals
• UL and CSA Approved
• High Interrupting Capacity
• Designed for Commercial and Industrial Use

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FHL26020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FHL Series
• Type : FHL
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901368540
• GTIN : 00785901368540
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3.051
• Certification : UL LISTED-CSA
• Wire Size : AWG 14, AWG 4 Copper)1, AWG 12, AWG 4 Aluminium)1
