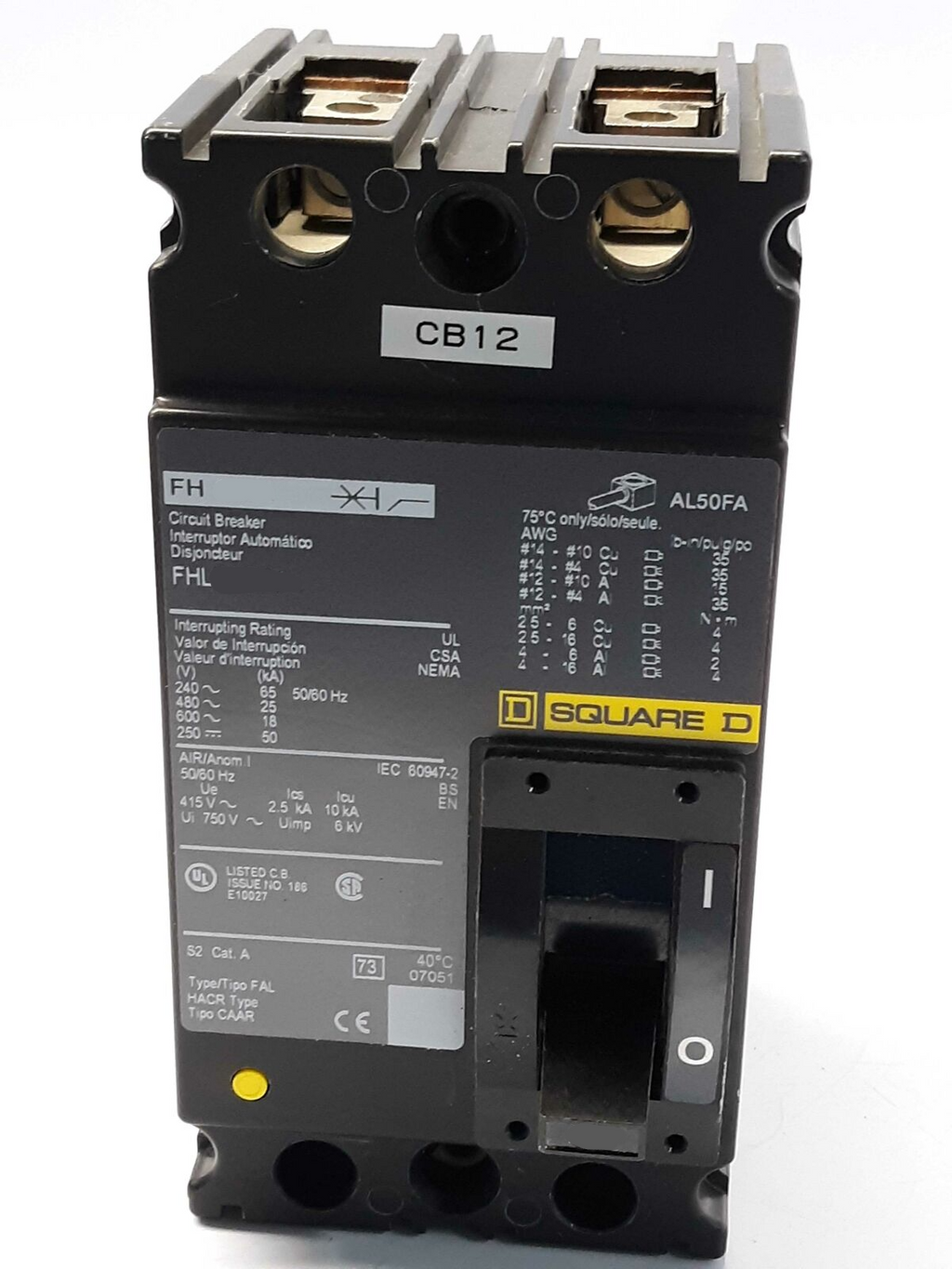

FHL26040 - Square D 40 Amp 600 Volt 2 Pole Thermal Magnetic Molded Case Circuit Breaker F Frame

FHL26040

FHL26040 is a 40 Amp, 600 Volt, 2 Pole thermal magnetic molded case circuit breaker from Square D, designed for reliable circuit protection.FHL26040 features a thermal magnetic trip unit, F frame type, and is rated for up to 65kA interrupting capacity at 240 VAC. It supports line and load lug terminals and is UL and CSA certified for industrial and commercial applications.

• Amperage: 40 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 2
• Interrupting Rating: 65kA @ 240 VAC, 25kA @ 480 VAC, 18kA @ 600 VAC, 50kA @ 250 VDC
• Trip Unit: Thermal Magnetic
• Frame Type: FHL (F Frame)
• Terminal Type: Line and Load Lugs
• Mounting Type: Feed-Thru
• Certifications: UL, CSA
• Dimensions: Approx. 3" W x 4.13" D x 6" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FHL26040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FHL Series
• Type : FHL
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901185338
• GTIN : 00785901185338
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3
