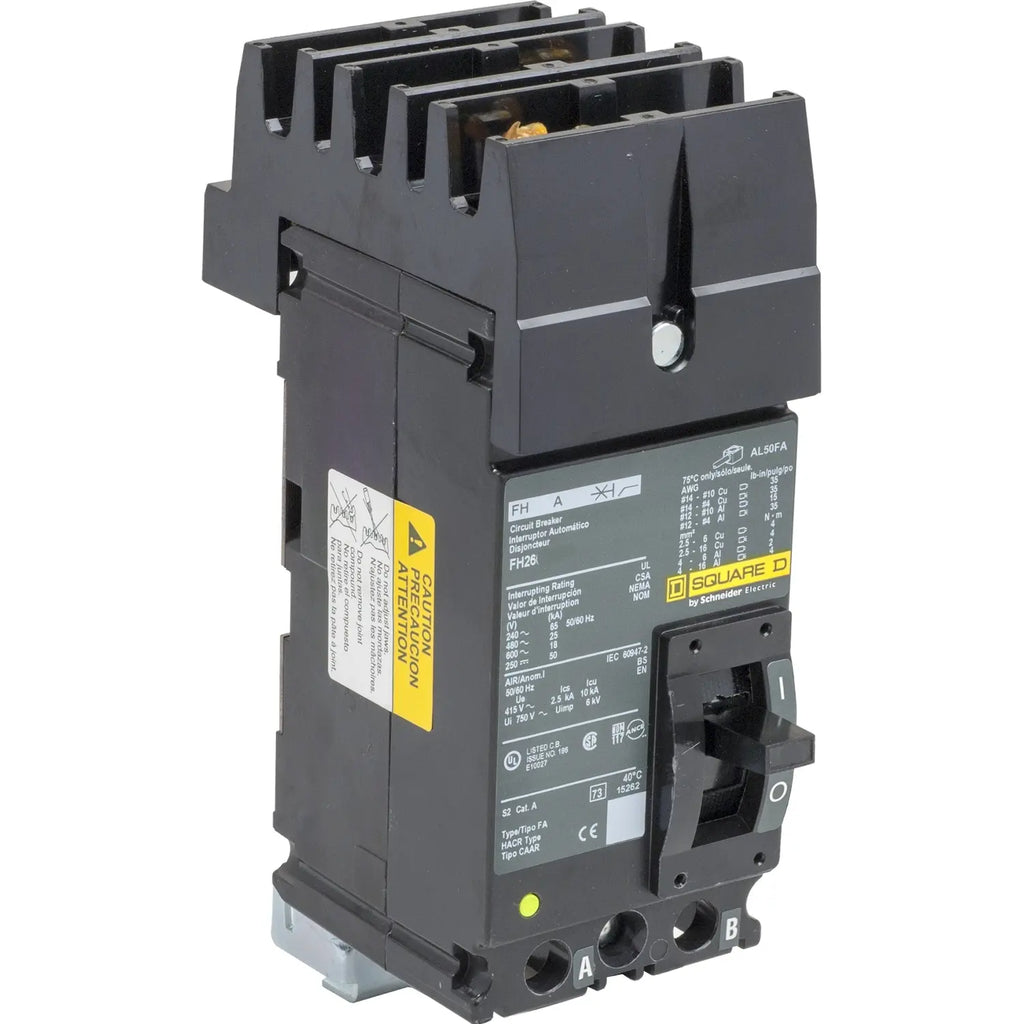

FH26090AC - Square D 90A 600V 2 Pole I-Line Molded Case Circuit Breaker 25kA Interrupt Rating

FH26090AC

FH26090AC is a Square D I-Line style molded case circuit breaker designed for reliable power distribution protection.This 2 pole, 90 amp circuit breaker is rated for 600 volts and features a high interrupting capacity of 25kA at 480 volts. It is part of the FH series, designed for plug-in mounting in I-Line panelboards. The breaker provides thermal magnetic trip protection for overload and short circuit conditions, ensuring safe and efficient operation.

• Manufacturer: Square D
• Part Number: FH26090AC
• Amperage: 90A
• Voltage Rating: 600V
• Poles: 2
• Mounting Type: I-Line plug-in
• Interrupting Rating: 25kA @ 480V
• Series/Frame: FH
• Trip Unit: Thermal Magnetic
• Phase: Single Phase (1PH)
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH26090AC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901343356
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
