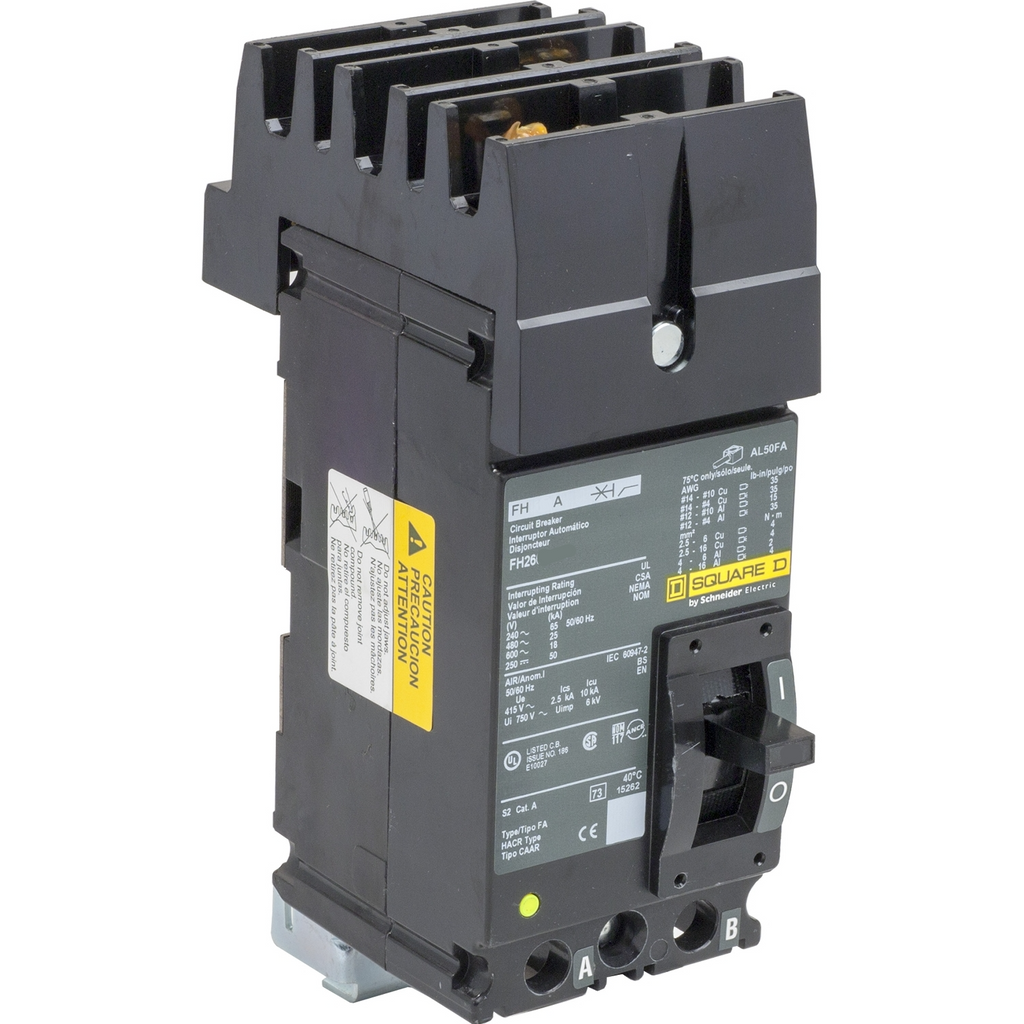

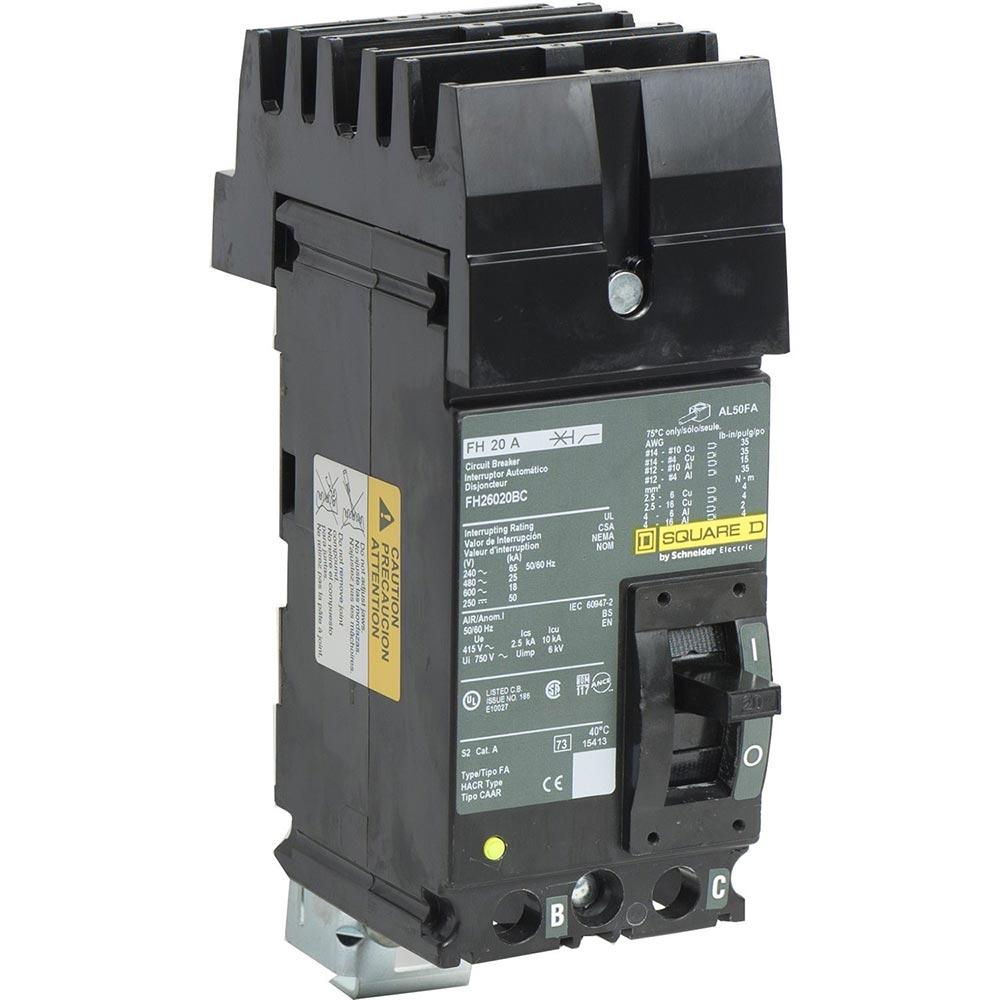

FH26020BC - Square D 2 Pole 20A 600V I-Line Plug-In Circuit Breaker, Thermal Magnetic, 25kAIC@480V

FH26020BC

FH26020BC is a 2 pole, 600V, 20A I-Line plug-in molded case circuit breaker designed for reliable power distribution in commercial and industrial applications. This Square D breaker features a thermal magnetic trip unit and a high interrupting rating for enhanced safety and performance. Engineered for use in I-Line panelboards and switchboards, the FH26020BC offers long time and instantaneous trip functions, a robust plug-in mounting style, and compatibility with both copper and aluminum conductors. It is certified to UL, CSA, NOM, IEC, CCC, and CE standards, ensuring compliance with major international safety requirements.

• Part Number: FH26020BC
• Manufacturer: Square D
• Series/Frame: FH
• Amperage: 20A
• Number of Poles: 2
• Voltage Rating: 600VAC, 250VDC
• Interrupting Rating: 25kAIC@480V
• Mounting Type: I-Line Plug-In
• Protection Type: Thermal Magnetic
• Functions: Long Time and Instantaneous Trip
• Terminal Connection: Line and Load Lug
• Wire Gauge: 14 to 4 AWG AL/CU
• Temperature Rating: 40°C
• Certifications: UL, CSA, NOM, IEC, CCC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH26020BC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901254720
• GTIN : 00785901254720
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
• Certification : UL, CSA, NOM, IEC, CCC, CE
• Wire Size : 14 to 4 AWG AL/CU
