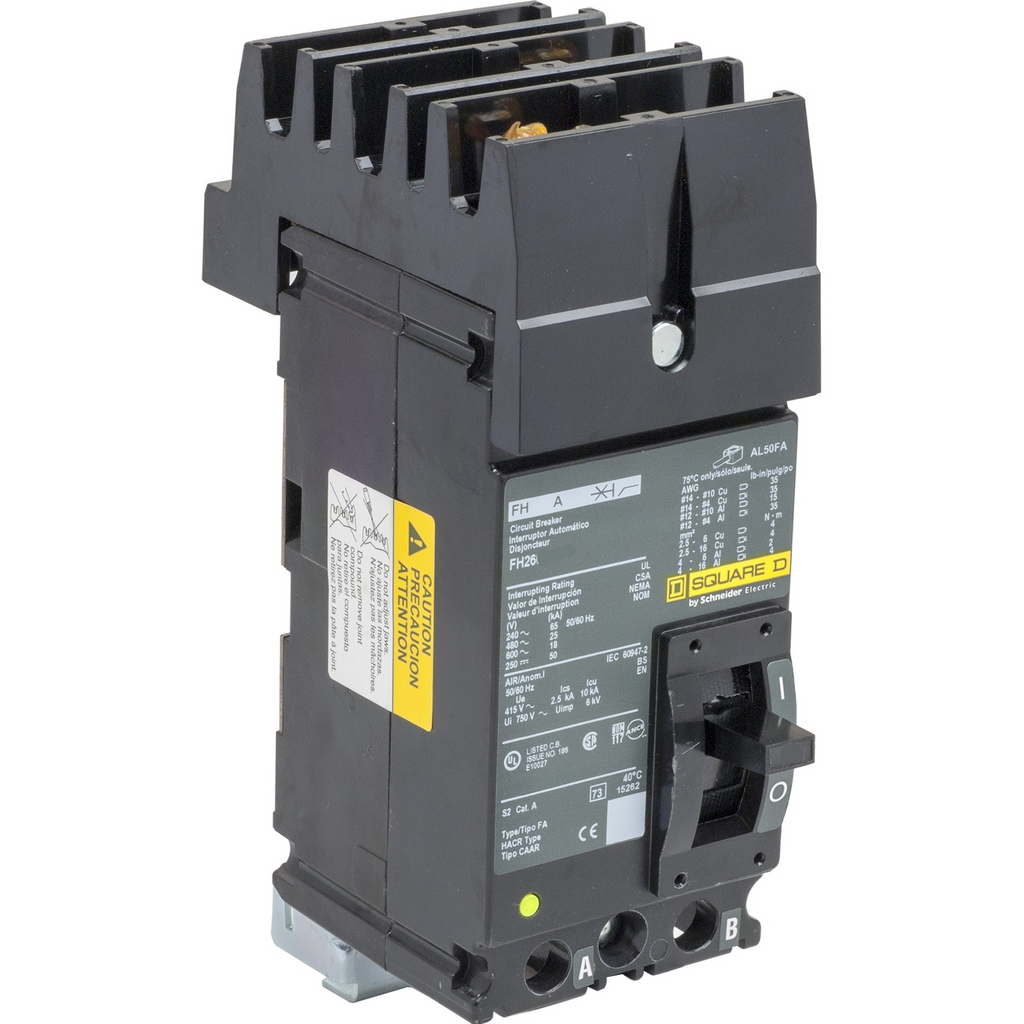

FH26090AB - Square D 90A 2-Pole 600V Molded Case Circuit Breaker

FH26090AB

FH26090AB is a 2-pole, 90-amp rated molded case circuit breaker designed for 600-volt applications with an I-Line style plug-in configuration. This thermal magnetic circuit breaker features long-time and instantaneous trip protection, making it suitable for power distribution in industrial and commercial panelboards. The breaker is rated for use in Class 650, 734, and 820 I-Line panelboards and switchboards and carries an interrupt rating of 25kA at 480V. Key Specifications

• Part Number: FH26090AB
• Manufacturer: Square D
• Amperage: 90A
• Voltage: 600V
• Poles: 2
• Configuration: I-Line Style Plug-In
• Trip Unit: Thermal Magnetic
• Trip Characteristics: Long-Time and Instantaneous (LI)
• Interrupt Rating: 25kA at 480V
• Certifications: UL, CSA Approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH26090AB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901343349
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
