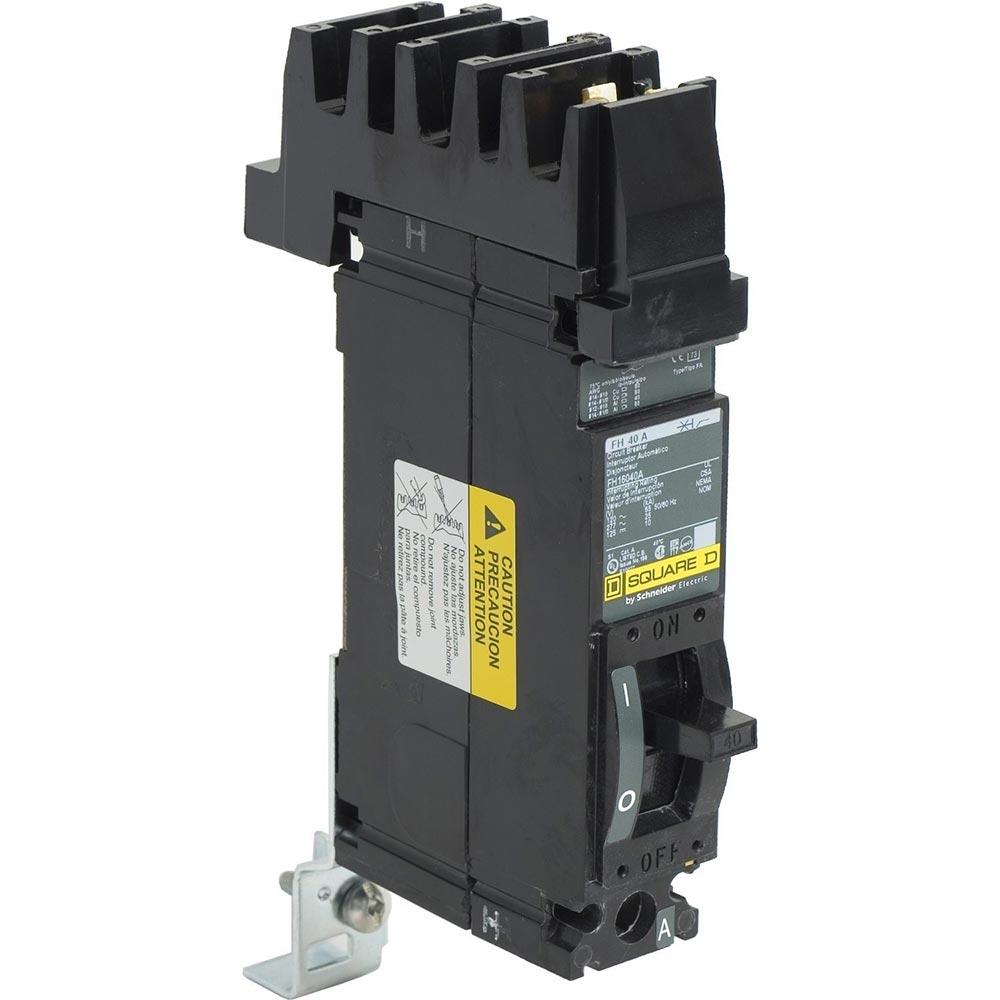

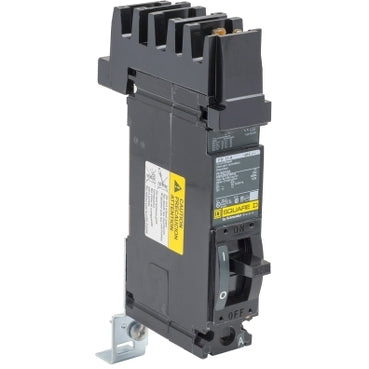

FH16060A - Square D 60A 277V 1 Pole I-Line Style Plug-In Circuit Breaker

FH16060A

FH16060A is a Square D 1 pole, 60 amp, 277 volt I-Line style plug-in circuit breaker designed for reliable thermal magnetic protection.This molded case circuit breaker features a 25kA interrupting rating at 240V, long time and instantaneous trip functions, and is suitable for single-phase applications. It mounts using the I-Line plug-in style and supports wire gauges from AWG 14 to AWG 1/0 for aluminum or copper conductors. Certified to UL and CSA standards, it complies with RoHS and REACh environmental directives and is rated for operation at 40°C.

Key Specifications
• Manufacturer: Square D
• Series/Frame: FH
• Amperage: 60A
• Voltage: 277VAC, 125VDC
• Poles: 1
• Mounting Type: I-Line plug-in
• Interrupting Rating: 25kAIC at 240V
• Trip Unit: Thermal Magnetic with long time and instantaneous trip
• Terminal Connection: Load side lug
• Wire Gauge: AWG 14 to AWG 1/0, Al/Cu
• Certifications: UL, CSA, RoHS, REACh
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH16060A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 277
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590133805
• GTIN : 00785901338055
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2.47
• Wire Size : AWG 14 to AWG 1/0, Al/Cu
