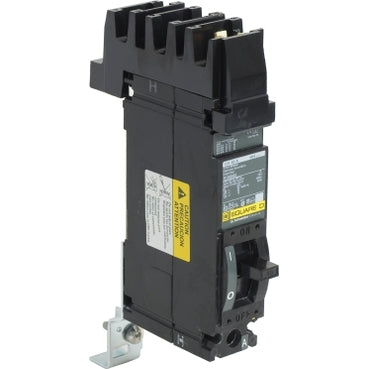

FH16040A - Square D 40 Amp 277 Volt 1 Pole FH Frame I-Line Plug-In Circuit Breaker

FH16040A

FH16040A is a Square D molded case circuit breaker designed for 40 amp, 277 volt applications with a single pole configuration.This FH frame breaker features a thermal magnetic trip unit, I-Line style plug-in mounting, and a high interrupting rating of 25kA at 240V AC. It is UL and CSA certified, suitable for power distribution with a frame type F, and supports wire sizes from 12 to 1/0 AWG aluminum or 14 to 1/0 AWG copper. The breaker is designed for use in panelboards and switchboards with a compact size of 1.5 inch width, 4.13 inch depth, and 6 inch height.

Key Specifications
• Amperage: 40 A
• Voltage: 277 V AC
• Poles: 1
• Frame Type: FH
• Mounting Type: I-Line Plug-In
• Interrupting Rating: 25kA at 240 V AC
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA
• Wire Size: 12 to 1/0 AWG Aluminum, 14 to 1/0 AWG Copper
• Dimensions: 1.5" W x 4.13" D x 6" H
• Phase: Single Phase
• Breaking Capacity Code: H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH16040A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 277
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 078590107597
• GTIN : 00785901075974
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
• Certification : CSA, UL
• Wire Size : AWG 14, AWG 1/0 Copper)1, AWG 12, AWG 1/0 Aluminium)1
