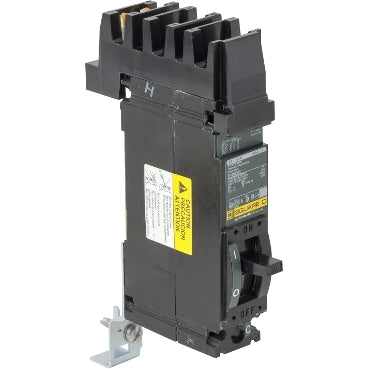

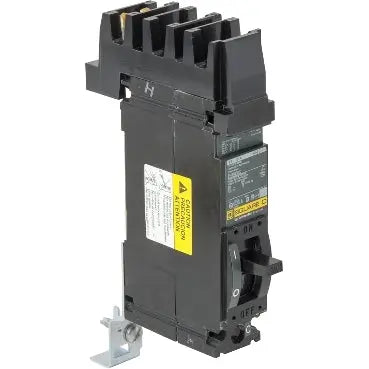

FH16030C - Square D I-Line 277V 30A 1 Pole Circuit Breaker Plug-In 25kAIC

FH16030C

FH16030C is a 1 pole, 30 amp, 277 volt I-Line plug-in circuit breaker designed for reliable power distribution in commercial and industrial applications. This Square D molded case circuit breaker features a 25kA interrupting rating at 240V, thermal magnetic trip unit, and is suitable for use in I-Line panelboards and switchboards. Engineered for durability and safety, the FH16030C breaker offers long-time and instantaneous trip functions, standard interrupting rating, and is rated for 40 degree C ambient temperature. It is UL and CSA listed for use in North American electrical systems.

• Part Number: FH16030C
• Manufacturer: Square D
• Amperage: 30A
• Voltage: 277V AC
• Poles: 1
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 25kA @ 240V
• Series/Frame: FH
• Trip Unit: Thermal Magnetic (LI)
• Certifications: UL, CSA
• Application: Commercial, Industrial Power Distribution
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH16030C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 277
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 078590156313
• GTIN : 00785901563136
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
• Certification : UL, CSA
• Wire Size : AWG 14, AWG 4 (Copper)1, AWG 12, AWG 4 (Aluminium)1
