FH16020A - Square D 20 Amp 1 Pole 277VAC 125VDC Plug-On Molded Case Circuit Breaker, FH Series, 65kAIC, LI Trip, UL Listed, CSA Certified

FH16020A

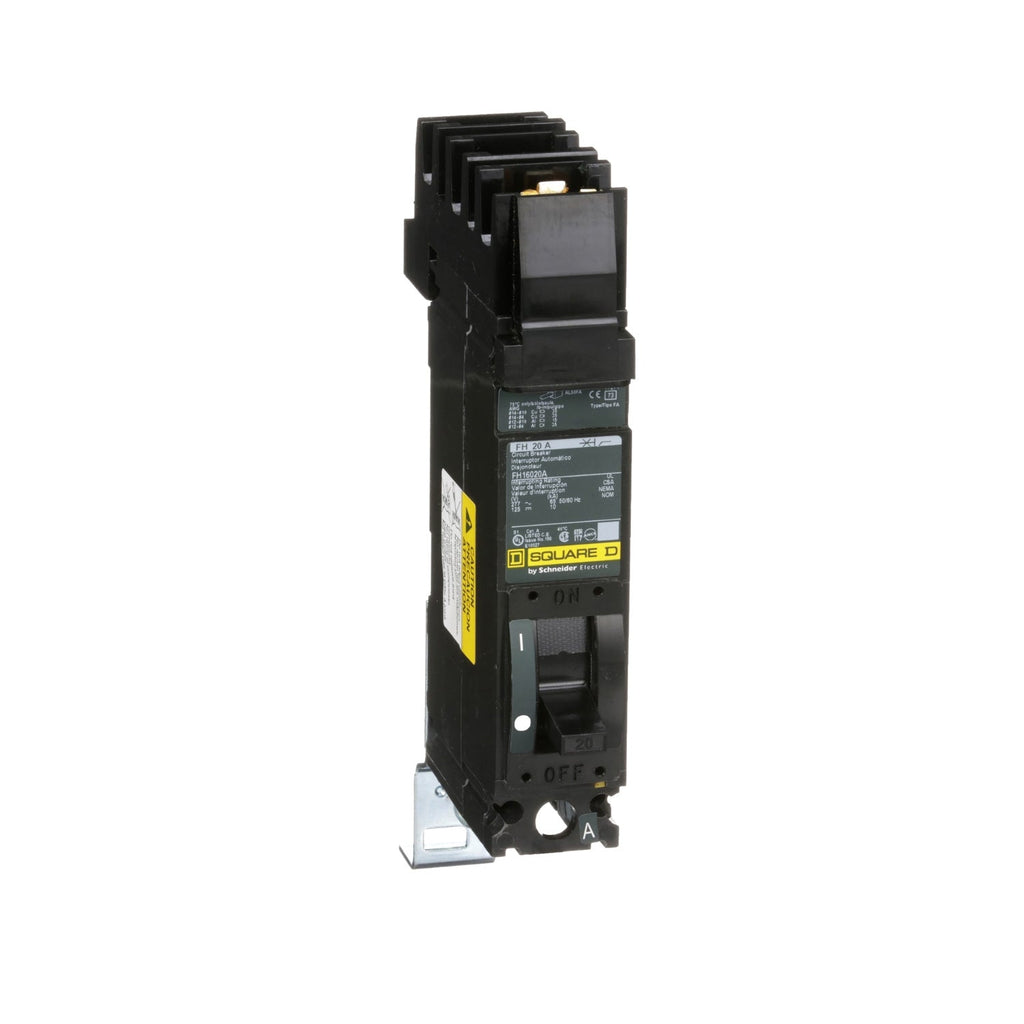

FH16020A is a Square D 1 pole, 20 amp, molded case circuit breaker designed for reliable protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a high interrupting capacity, plug-on mounting, and is part of the Square D FH series. It is suitable for use on 277VAC or 125VDC systems and is engineered for both long-time and instantaneous trip functions, ensuring robust circuit protection.

Key Specifications
• Amperage: 20A
• Voltage: 277VAC, 125VDC
• Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 65kAIC at 277VAC
• Series/Frame: FH
• Trip Unit: LI (Long-Time and Instantaneous)
• Certifications: UL Listed, CSA Certified
• Temperature Rating: 40°C
• Phase: 1
• Approvals: UL, CSA
• Configuration: I-Line

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH16020A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 277
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590133891
• GTIN : 00785901338918
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
