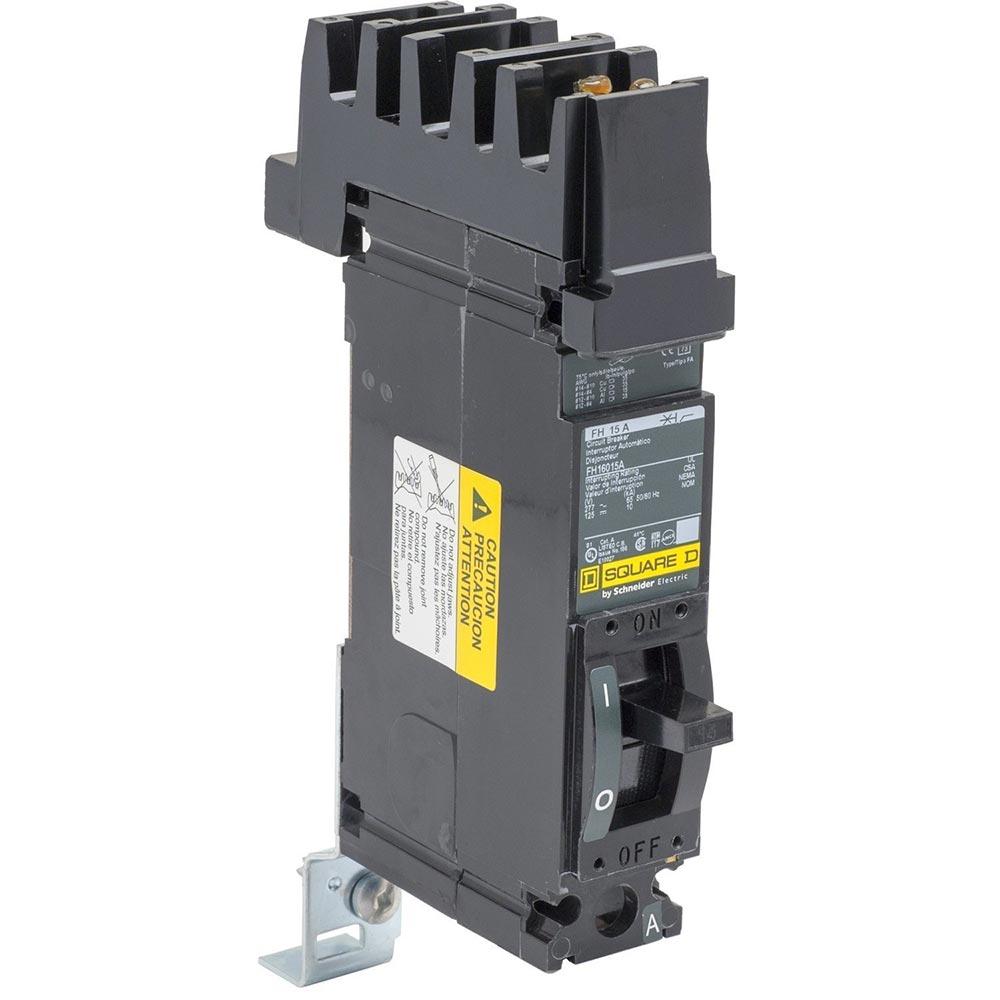

FH16015A - Square D 15A 1-Pole 277V I-Line FH Frame Molded Case Circuit Breaker Plug-On

FH16015A

FH16015A is a Square D molded case circuit breaker designed for reliable power distribution protection.This 1-pole circuit breaker features a 15 ampere current rating and a voltage rating of 277 VAC. It belongs to the I-Line FH frame series with a plug-on mounting type, providing easy installation in compatible panelboards and switchboards. The breaker uses a thermal magnetic trip unit for dependable overload and short circuit protection. It has an interrupting rating of 25kA at 240 VAC and is UL and CSA certified for safety and performance.

• Manufacturer: Square D
• Part Number: FH16015A
• Frame Type: FH (I-Line)
• Amperage: 15A
• Voltage Rating: 277 VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupting Rating: 25kA @ 240 VAC
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA
• Application: Panelboard/Switchboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH16015A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 277
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 078590156372
• GTIN : 00785901563723
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
• Certification : UL, CSA
• Wire Size : AWG 14, AWG 4 (Copper)1, AWG 12, AWG 4 (Aluminium)1
