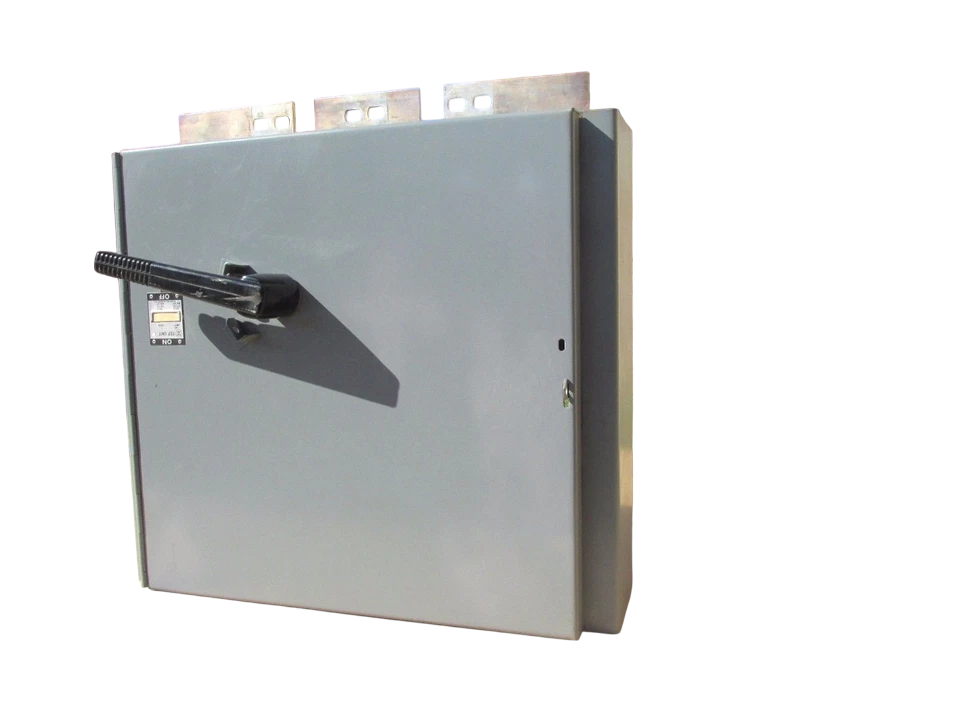

FDP366BR - Eaton Type FDP Fusible Panelboard Switch 600A 600V 3-Pole

FDP366BR

FDP366BR is an Eaton Type FDP fusible panelboard switch rated for 600 amperes at 600 volts AC with three poles and a 200 kAIC interrupt rating. This heavy-duty switch is designed for main panelboard applications and accepts Class R fuses for circuit protection. The unit features a vertical orientation with bottom feed main connection and supports wire sizes from #4 AWG to 600 kcmil or #3/0 AWG to 250 kcmil. Horsepower ratings reach 200 hp at 240 Vac, 400 hp at 480 Vac, and 500 hp at 600 Vac, making it suitable for demanding industrial and commercial power distribution systems. The switch is UL Listed and backed by Eaton's standard one-year installation or eighteen-month shipment warranty.

• Amperage Rating: 600A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Interrupt Rating: 200 kAIC
• Fuse Class: Class R
• Wire Size: #4 AWG to 600 kcmil or #3/0 AWG to 250 kcmil
• Connection Type: Bottom Feed Main
• Switch Orientation: Vertical
• Horsepower: 200 hp @ 240V, 400 hp @ 480V, 500 hp @ 600V
• Certifications: UL Listed
• Product Type: Fusible Panelboard Switch

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FDP366BR
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Panel Mount
• Family : Type FDP
• Type : FDP
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Fuse Class : R,H,K
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : SGPA

Product Data

• Weight : 85
• Certification : UL Listed
