Product Info
- Manufacturer:Eaton
- Sub-Category:Panel Mount
Description
FDP363R

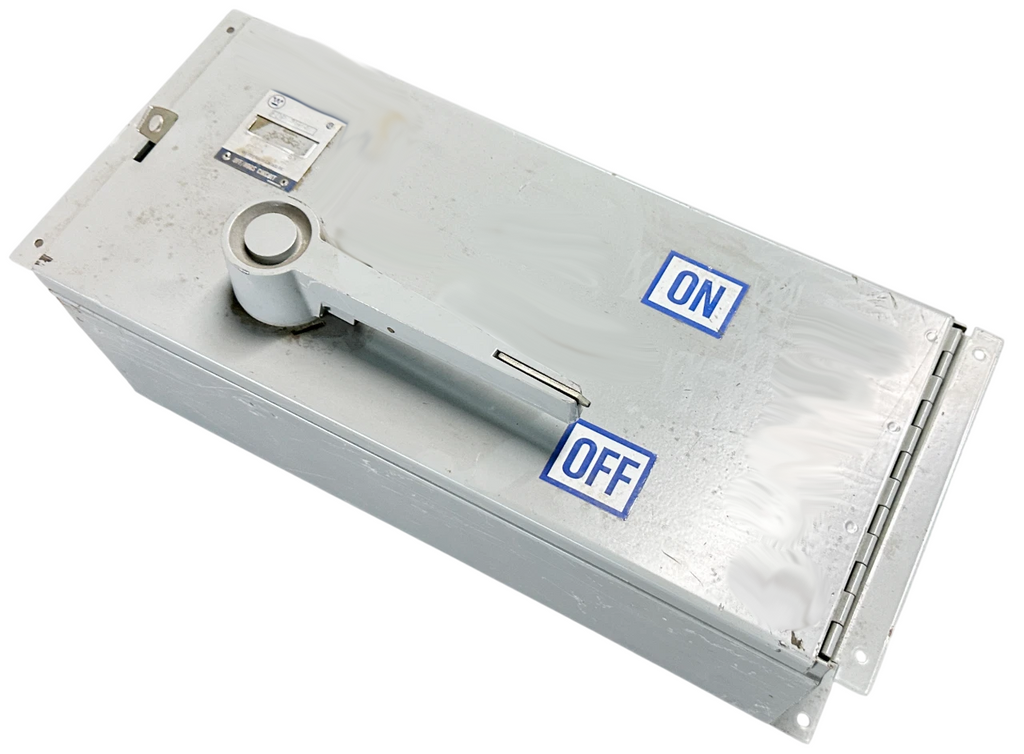

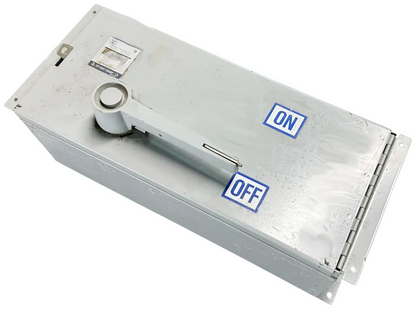

FDP363R is a Eaton 3-pole fusible panelboard switch rated for 100 Amps and 600 Volts AC. It is designed for reliable power distribution and protection in panelboard applications.FDP363R features a Class R fuse type and is horizontally mounted. It supports 3-phase power with a maximum interrupting rating of 200,000 A rms symmetrical at 600V AC. The switch is suitable for use with aluminum or copper conductors ranging from 14 to 1/0 AWG. It is engineered for secure installation in Eaton panelboard chassis and provides maximum allowable horsepower ratings through 600A.
- Key Specifications
- Amperage: 100 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Fuse Type: Class R
- Mounting Type: Horizontal
- Interrupt Rating: 200,000 A rms symmetrical at 600V AC
- Conductor Size: 14 to 1/0 AWG aluminum/copper
- Application: Fusible panelboard switch
Specifications
- Part Number: FDP363R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Type FDP
- Type : FDP
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : ED
Product Data
- Weight : 35
