Product Info
- Manufacturer:Eaton
- Sub-Category:Panel Mount
Description
FDP365BR

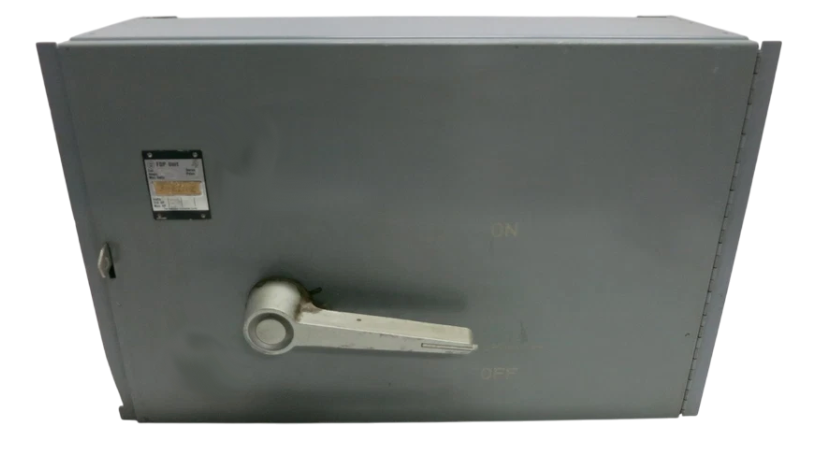

FDP365BR is a 400A, three-pole, 600V fusible panelboard switch designed for reliable power distribution and circuit protection in industrial and commercial applications. This Eaton Type FDPW switch features a robust construction and is suitable for use with Class R fuses. The FDP365BR offers a maximum interrupting capacity of 200 kAIC and supports wire sizes from 250 kcmil to 750 kcmil or (2) #3/0 AWG to 250 kcmil. It is engineered for top feed main connections and provides secure, efficient switching for demanding environments.
- Amperage Rating: 400A
- Voltage Rating: 600V
- Number of Poles: 3
- Interrupt Rating: 200 kAIC
- Mounting Type: Panelboard
- Series/Frame: FDPW
- Fuse Class: Class R
- Wire Size: 250-750 kcmil or (2) #3/0 AWG-250 kcmil
- Connection: Top feed main
- HP Rating: 125 hp at 240 Vac, 250 hp at 480 Vac, 350 hp at 600 Vac
- Certifications: UL Listed
Specifications
- Part Number: FDP365BR
- Manufacturer : Eaton
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Type FDP
- Type : FDP
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : SGLA
Product Data
- Weight : 60
