Product Info
- Manufacturer:Eaton
- Sub-Category:Panel Mount
Description
FDP365JDS

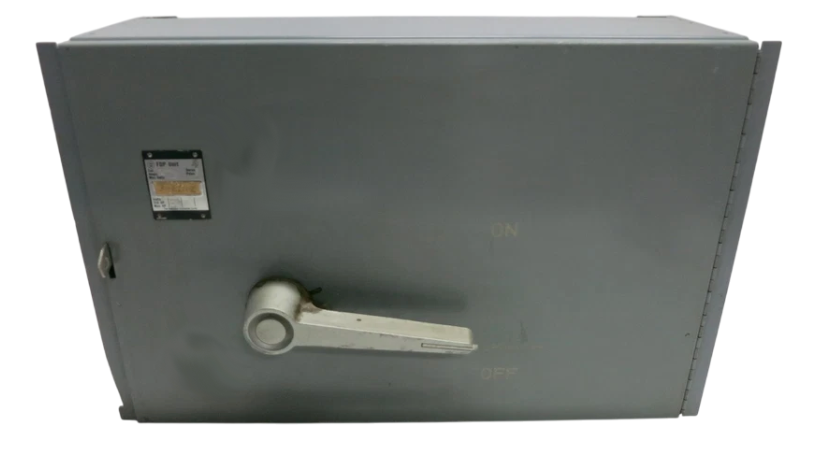

FDP365JDS is a Eaton fusible panelboard switch designed for 400 ampere, three-pole applications at 600 volts AC with Class J fuse provisions.FDP365JDS features a 200 kA interrupting rating and supports wire sizes from 250-750 kcmil or two conductors of 3/0-250 kcmil. It is a horizontal branch switch suitable for panelboard installations, offering horsepower ratings of 125 hp at 240 Vac, 250 hp at 480 Vac, and 350 hp at 600 Vac. This switch is UL listed and designed for reliable load break and load make operation.
- Amperage Rating: 400A
- Voltage Rating: 600 V AC
- Number of Poles: Three-pole
- Interrupt Rating: 200 kAIC
- Fuse Class Provision: Class J fuses
- Connection Type: Branch
- Mounting Type: Horizontal
- Wire Size Capacity: (1) 250-750 kcmil or (2) 3/0-250 kcmil
- Horsepower Ratings: 125 hp @ 240 Vac, 250 hp @ 480 Vac, 350 hp @ 600 Vac
- Certifications: UL Listed
Specifications
- Part Number: FDP365JDS
- Manufacturer : Eaton
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Type FDP
- Type : FDP
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : J
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : HED
Product Data
- Weight : 60
