Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
FDB3125

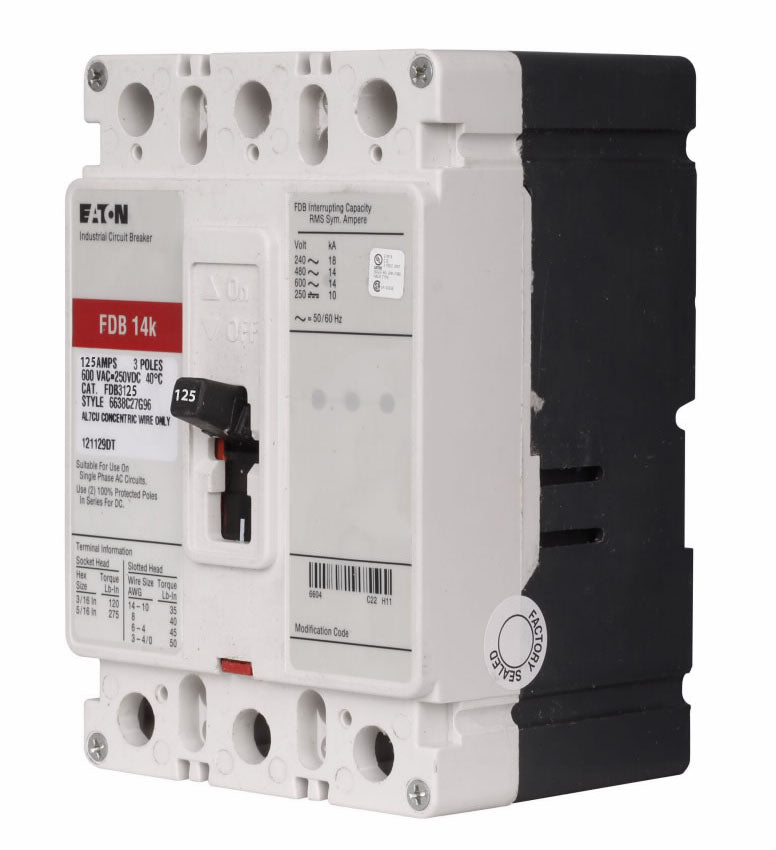

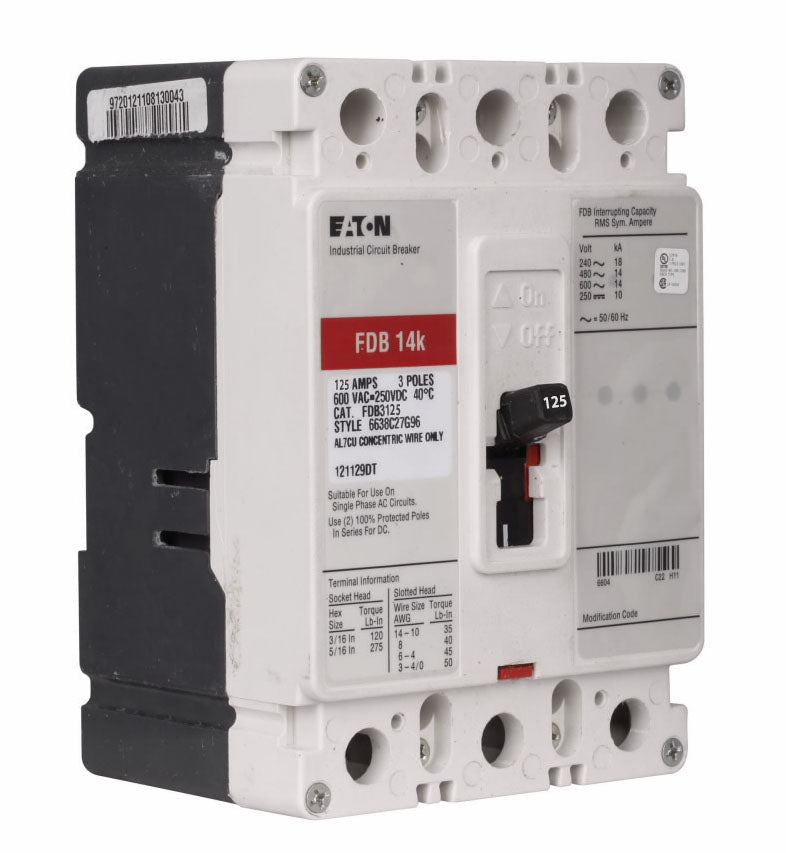

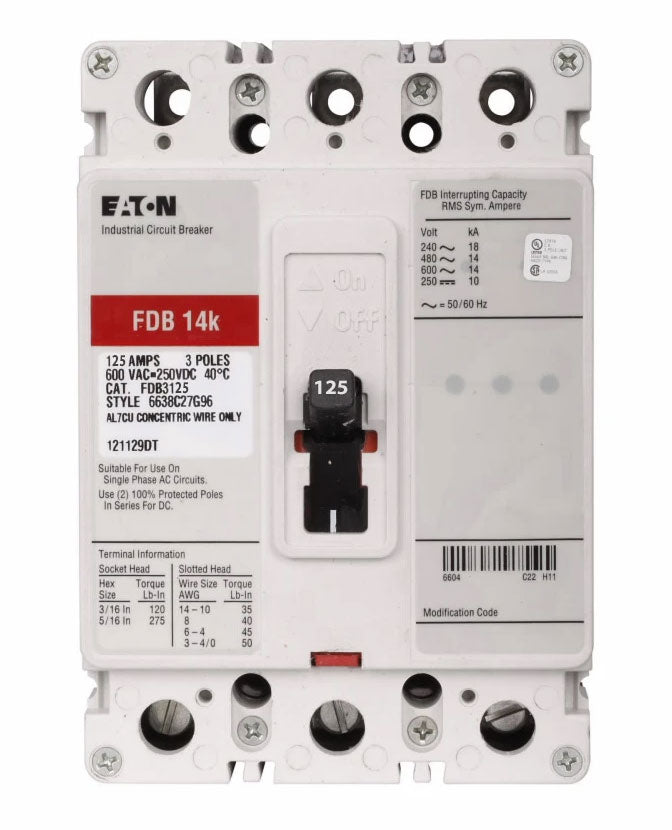

FDB3125 is a Westinghouse Series C molded case circuit breaker designed for industrial and commercial electrical protection.This 3-pole breaker features a 125 ampere rating, 600 VAC voltage rating, and a 14kA interrupting capacity at 480 VAC. It uses a thermal magnetic trip unit and an F frame design with bolt-on mounting. The breaker is UL and CSA certified, suitable for panel mounting, and meets IEC standards.
- Amperage: 125A
- Voltage: 600 VAC, 250 VDC
- Poles: 3
- Interrupt Rating: 14kA at 480 VAC
- Series/Frame: Series C, F Frame (FDB)
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Certifications: UL, CSA, IEC
- Panel Mount
- Dimensions: Approx. 4.125" W x 3.375" D x 6" H
Specifications
- Part Number: FDB3125
- Manufacturer : Westinghouse
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FDB
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679306048
- GTIN : 00786679306048
- Country of Origin : Dominican Republic
- Dimensions : 7.4 in x 4.9 in x 5 in (Length/Depth x Height x Width)
- Weight : 4.3
- Certification : UL Listed
