FD63B200L - Siemens 200A 600V 3-Pole Molded Case Circuit Breaker FD Frame Thermal Magnetic

FD63B200L

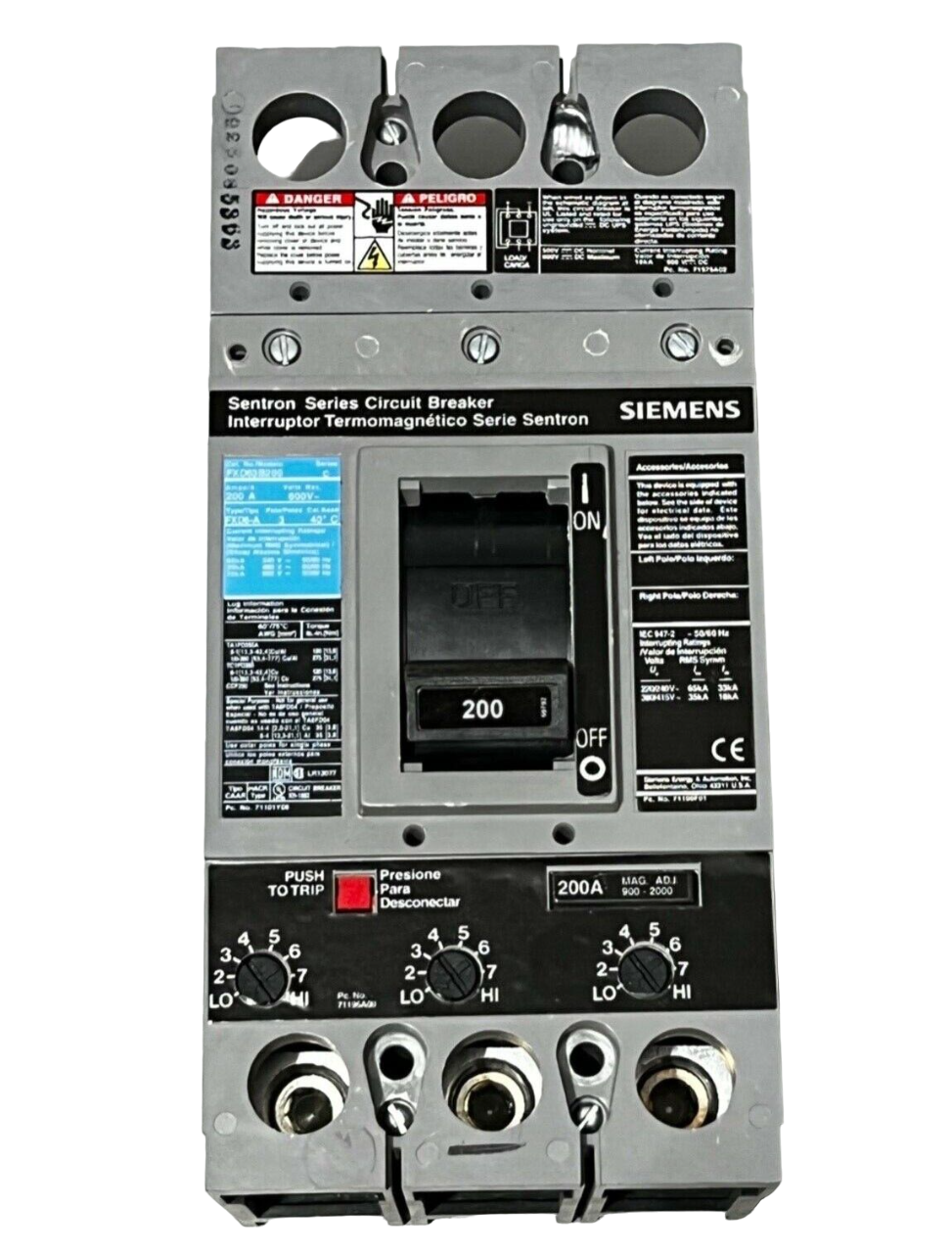

FD63B200L - Siemens Sentron molded case circuit breaker, 200A 3-pole with thermal-magnetic trip unit.Siemens FD63B200L is a type FD6 low voltage molded case circuit breaker rated for 600 VAC/500 VDC, 200 A amperage, featuring interchangeable thermal-magnetic trip unit with 900-2000 A trip range, line and load lugs (TA1FD350A) accepting #6-350 kcmil CU / #4-350 kcmil AL wire, 50/60 Hz frequency, and 40 deg C temperature rating.

• Part Number: FD63B200L
• Manufacturer: Siemens
• Amperage Rating: 200 A
• Voltage Rating: 600 VAC / 500 VDC
• Number of Poles: 3
• Frame Size: FD
• Trip Unit: Thermal-Magnetic, Interchangeable
• Trip Range: 900 to 2000 A
• Interrupt Rating: 22 kA at 600V
• Frequency: 50/60 Hz
• Mounting: Surface
• Wire Range: #6-350 kcmil CU / #4-350 kcmil AL

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: FD63B200L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643005334
• GTIN : 00783643005334
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
