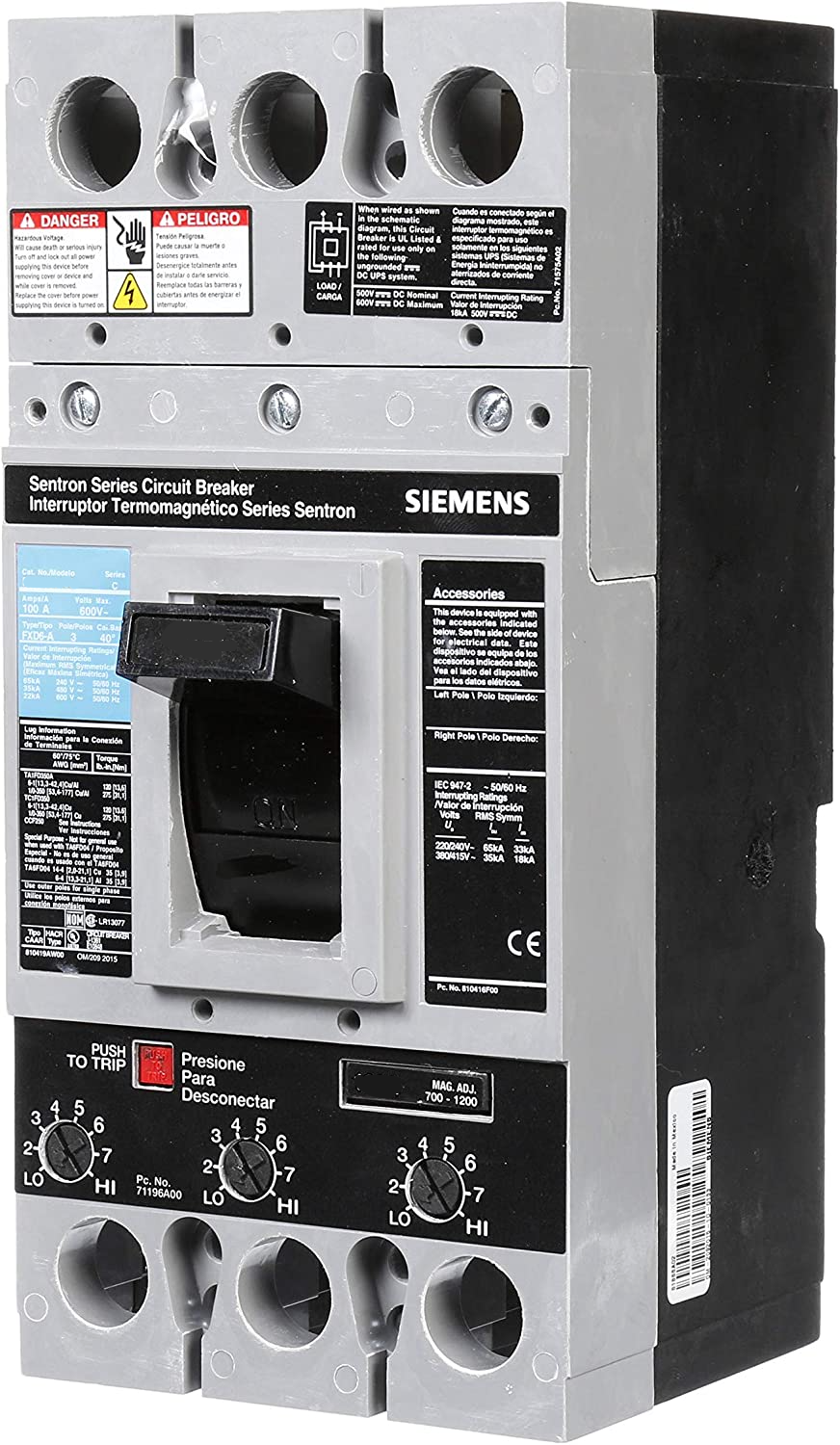

FD63B100L - Siemens 100A 600V 3-Pole Molded Case Circuit Breaker FD Frame Thermal Magnetic

FD63B100L

FD63B100L is a Siemens molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3-pole breaker features a 100A current rating and is rated for 600V AC, making it suitable for a wide range of applications requiring robust overcurrent protection. The FD63B100L utilizes a thermal magnetic trip unit for precise overload and short-circuit protection. It is built on the FD frame and features line/load side lug terminals for flexible installation. The breaker is engineered for extra high breaking capacity and is suitable for use in systems requiring high interrupt ratings.

• 100A Amperage
• 600V AC Voltage
• 3-Pole Configuration
• FD Frame Series
• Thermal Magnetic Trip Unit
• Line/Load Side Lug Terminal
• 25kAIC Interrupt Rating at 600V
• UL 489 and IEC 60947-2 Certified
• Feed-Thru Connection Type
• 3-Phase Application
• Extra High Breaking Capacity
• Standard 40°C Operation

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: FD63B100L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643005280
• GTIN : 00783643005280
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
