Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FD62B150L

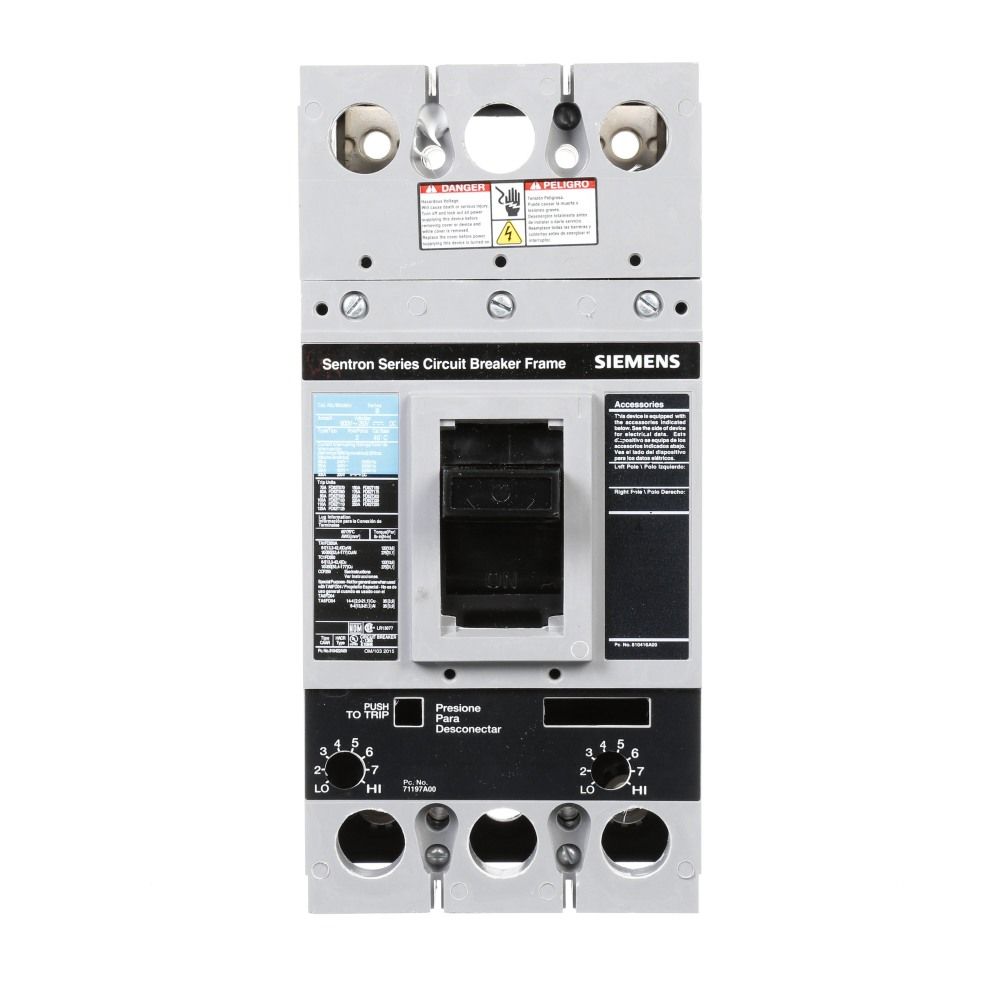

FD62B150L is a Siemens molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This breaker features a feed thru design and is built for demanding electrical environments.Engineered with a standard 40°C frame and high breaking capacity, the FD62B150L offers robust performance in a compact design. It is suitable for use in applications requiring 150 Amp, 2 Pole, 600 Volt protection with interchangeable trip units for flexible configuration. The breaker meets UL 489 and IEC 60947-2 standards for safety and reliability.
- 150 Amp rated current
- 2 Pole configuration
- 600 Volt maximum voltage
- Feed Thru mounting type
- 25 kAIC interrupt rating at 600V
- 65 kAIC interrupt rating at 480V
- FD frame series
- Interchangeable trip unit
- UL 489 certified
- IEC 60947-2 certified
Specifications
- Part Number: FD62B150L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FD
- Voltage : 600
- Amperage : 150
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643005198
- GTIN : 00783643005198
- Country of Origin : Mexico
- Dimensions : 10.63 x 5.906 x 6.693 inch
- Weight : 8.62
