Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

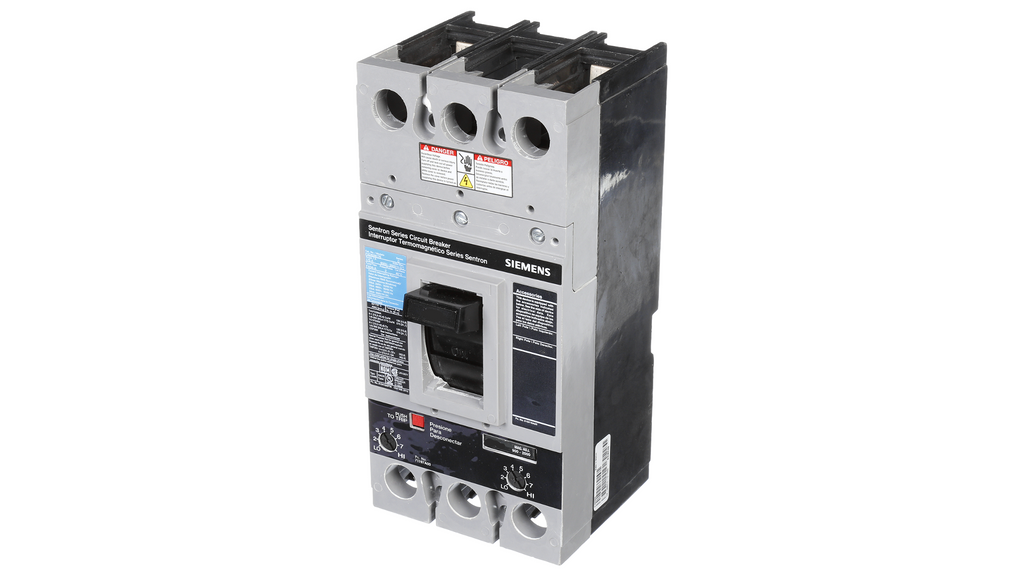

FD62B080
FD62B080 is a Siemens 2 pole molded case circuit breaker rated for 80 amperes at 600 volts AC with thermal magnetic trip protection and standard breaking capacity. This FD frame breaker is designed for industrial power distribution applications and meets UL 489 and IEC 60947-2 standards for reliable circuit protection. The interchangeable trip unit design allows for flexible configuration to match specific application requirements.
- Amperage Rating: 80 Amps
- Voltage Rating: 600 VAC / 250 VDC
- Number of Poles: 2 Pole
- Frame Size: FD Frame
- Trip Type: Thermal Magnetic
- Interrupt Rating: 22 kAIC at 600V
- Frequency: 50/60 Hz
- Certifications: UL 489, IEC 60947-2
- Trip Unit: Interchangeable
Specifications
- Part Number: FD62B080
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FD
- Voltage : 600
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643211315
- GTIN : 00783643211315
- Country of Origin : Mexico
- Weight : 8.135
