Product Info
- Manufacturer:Siemens
- Sub-Category:Trip Units & Programmers
Description
FD62T150

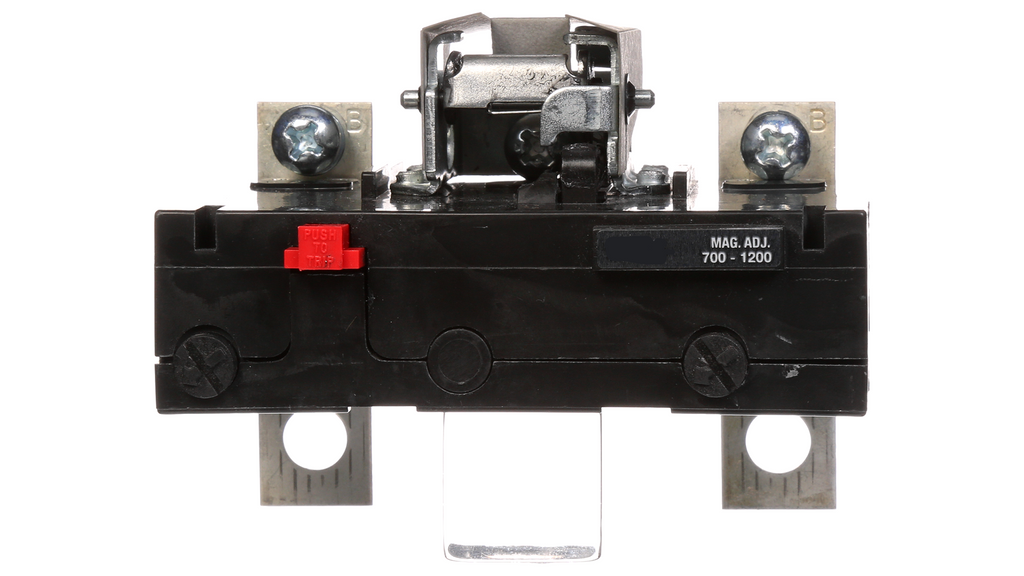

FD62T150 is a Siemens Sentron Series thermal magnetic trip unit designed for FD frame molded case circuit breakers. It provides reliable protection with a 150 amp rating and 600 volt capacity.FD62T150 features a 2-pole configuration and a 22 kA interrupt rating at 600 VAC, suitable for commercial and industrial applications. This interchangeable trip unit offers thermal magnetic trip protection with a 40°C trip setting and is compatible with FD frame breakers.
- Manufacturer: Siemens
- Part Number: FD62T150
- Amperage: 150 A
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 2
- Interrupt Rating: 22 kAIC at 600 VAC
- Frame/Series: FD Frame
- Trip Unit Type: Thermal Magnetic
- Mounting: Bolt-on, interchangeable trip unit
- Operating Temperature: 40°C
- Certifications: Sentron Series standard
Specifications
- Part Number: FD62T150
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Sentron Series
- Type : FD
- Voltage : 600
- Amperage : 50
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous Trip
- Frame Size : 150
- Amperage Maximum : 150
- Protection : Thermal Magnetic
- Compatible Frames : FD,HFD,HHFD
Product Data
- UPC : 783643211605
- GTIN : 00783643211605
- Country of Origin : Mexico
- Weight : 1.08
