FAZ-D3/1-SP - Eaton 3A 277V Single-Pole Industrial Miniature Circuit Breaker, 10 kAIC, D Curve, UL 489 Certified

FAZ-D3/1-SP

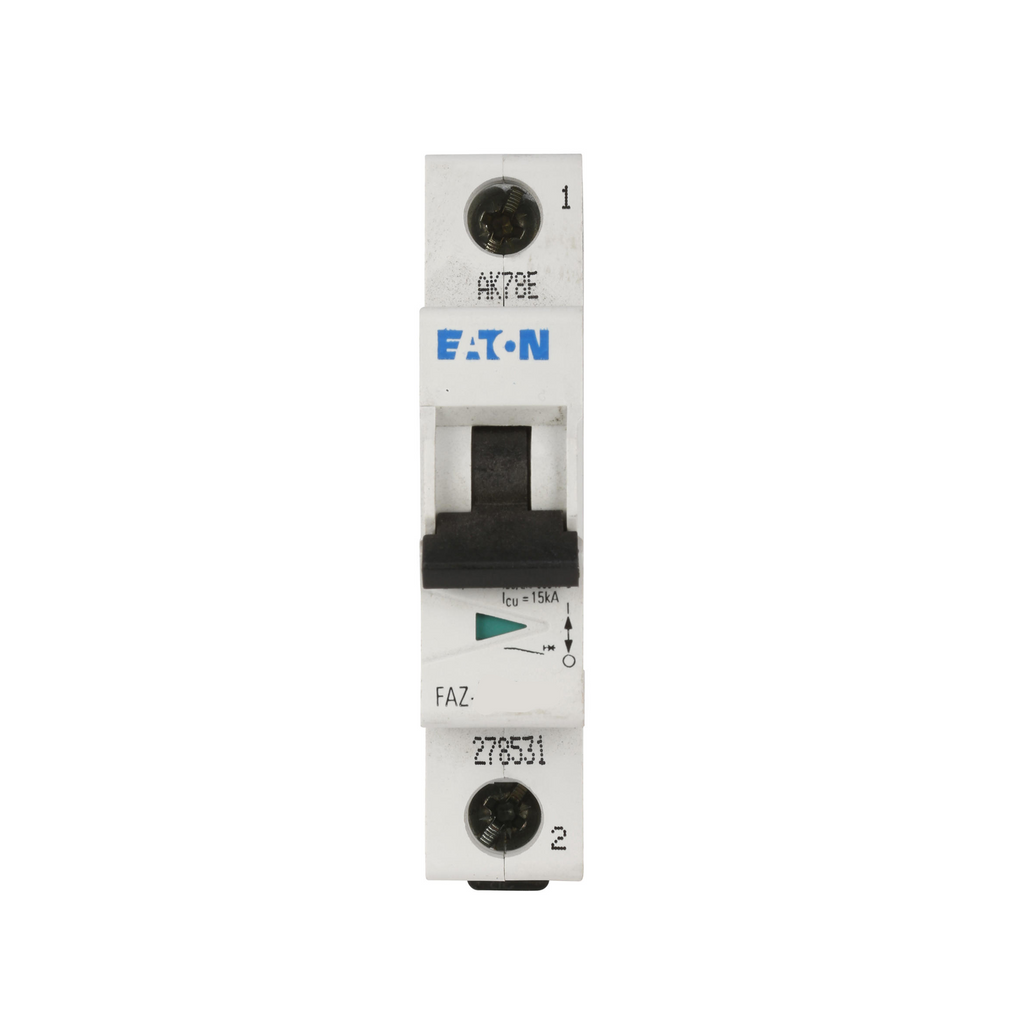

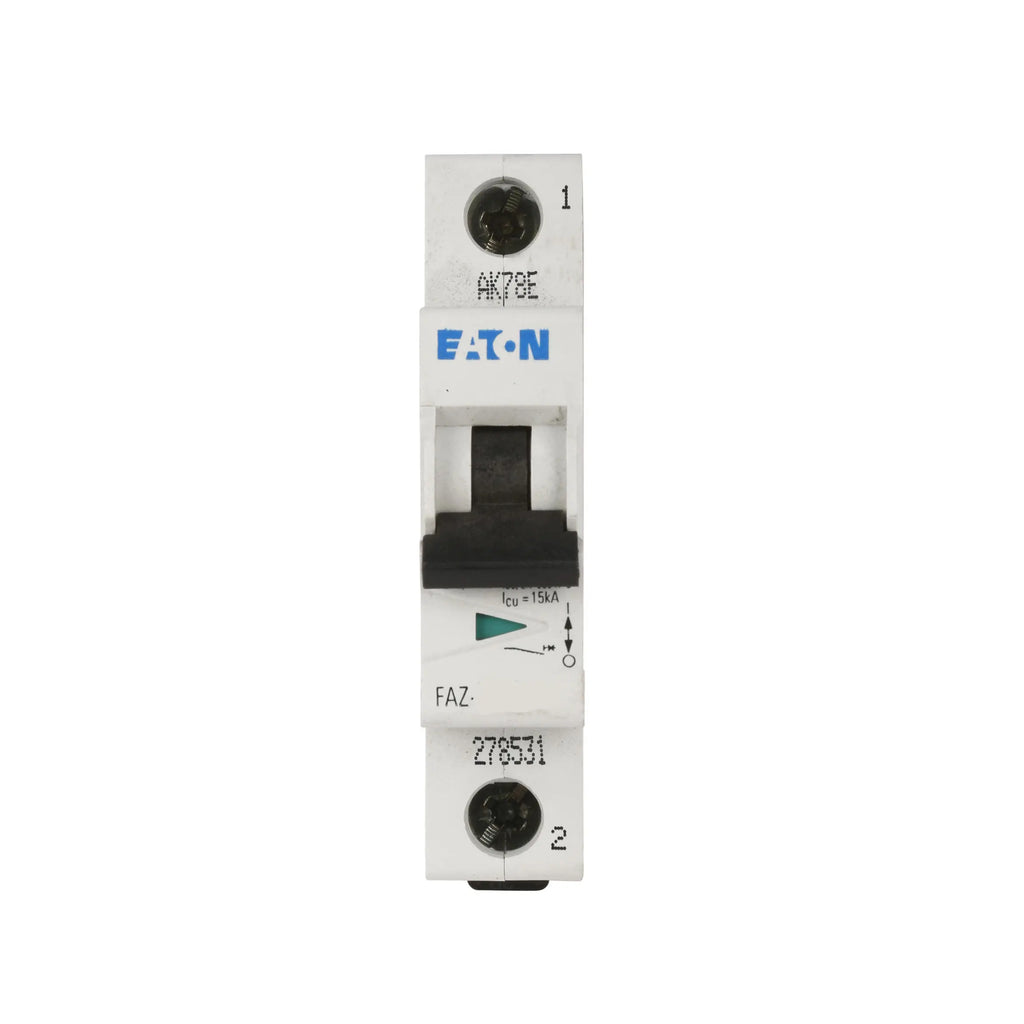

FAZ-D3/1-SP is an Eaton industrial miniature circuit breaker designed as a supplementary protector with a 3 ampere rating and single-pole configuration.This Eaton FAZ branch protector features a 277 V AC voltage rating, 10 kA interrupting capacity (kAIC), and a D curve trip characteristic (10-20X magnetic trip range) suitable for high inrush current applications such as motors and transformers. It mounts on standard 35 mm DIN rail with screw terminals and is UL 489 and CSA certified.

• Amperage: 3 A
• Voltage: 277 V AC
• Poles: Single-pole
• Interrupt Rating: 10 kAIC
• Trip Type: D Curve (10-20X magnetic trip)
• Mounting: 35 mm DIN rail
• Terminal Type: Screw terminals
• Certifications: UL 489, CSA Std. C22.2 No. 235
• Frame/Series: FAZ
• Application: Supplementary branch circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D3/1-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 277
• Amperage : 3
• Phase : 1
• Poles : 1
• AIC rating : 10kA@277V
• Connection : Din Rail
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508163684
• GTIN : 04015081636846
• Country of Origin : Romania
• Dimensions : 1 in x 1 in x
• Weight : 0.5
• Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
• Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
