FAZ-D30/1-NA-SP - Eaton 30A 277VAC 1-Pole Thermal Magnetic Circuit Breaker D Curve 10kAIC DIN Rail Mount

FAZ-D30/1-NA-SP

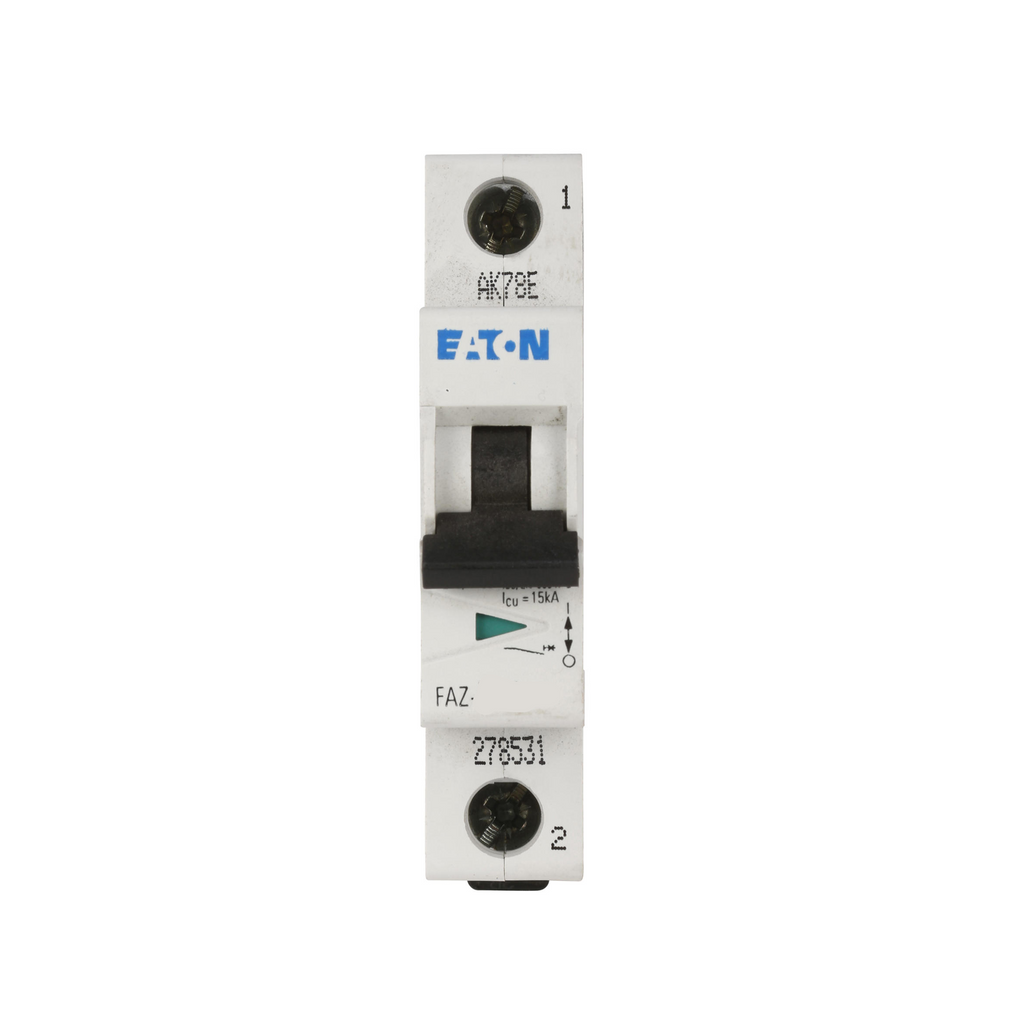

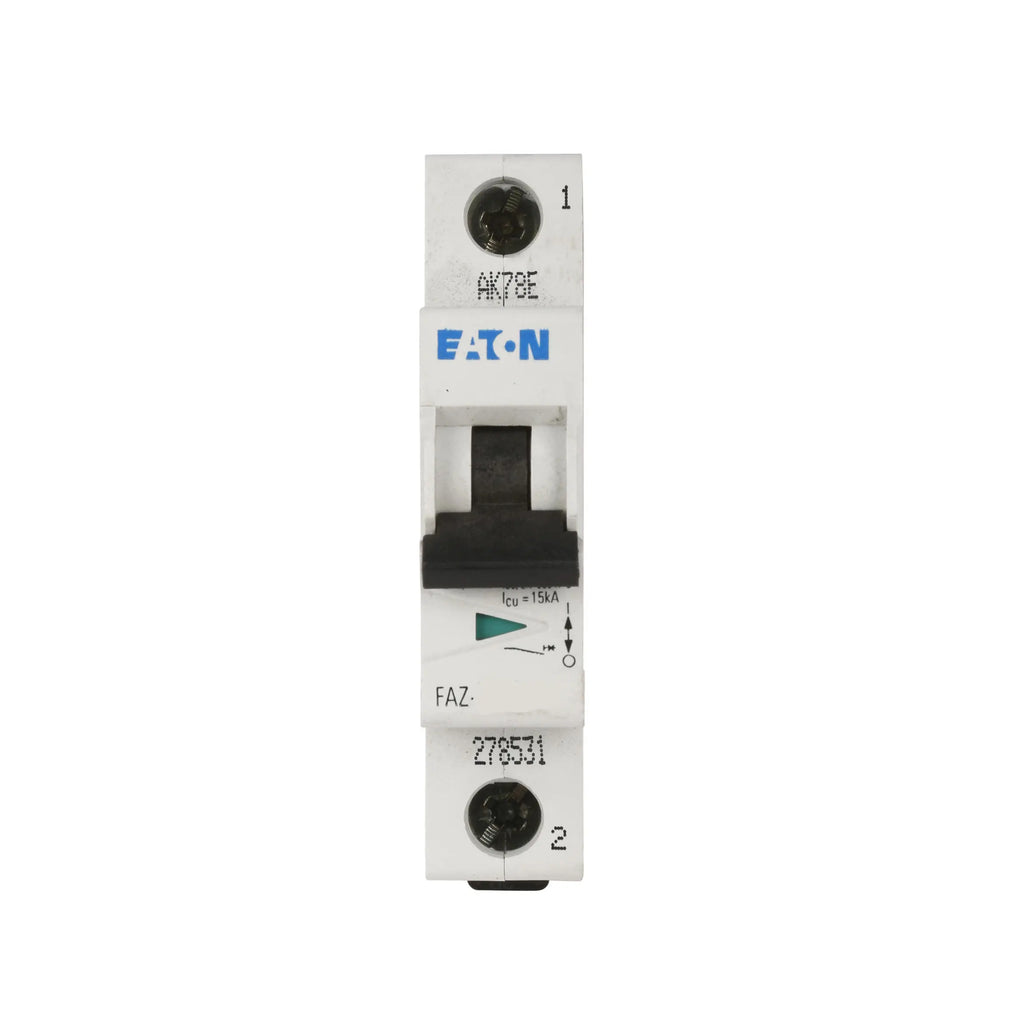

FAZ-D30/1-NA-SP is a 1-pole, 30 amp thermal magnetic circuit breaker from Eaton designed for industrial branch protection.

This Eaton FAZ series circuit breaker features a D curve trip unit suitable for high inrush currents typical of motors and transformers. It supports 277 VAC and 48 VDC operation with a 10kA interrupting rating at 277 VAC. The breaker mounts on a 35mm DIN rail and includes standard screw terminals. It is UL 489 and CSA C22.2 No. 235 certified for industrial applications.

Key Specifications
• Amperage Rating: 30 A
• Voltage Rating: 277 VAC / 48 VDC
• Number of Poles: 1
• Trip Curve: D Curve (thermal magnetic)
• Interrupt Rating: 10 kA at 277 VAC
• Mounting Type: 35mm DIN rail
• Terminal Type: Standard screw terminals
• Certifications: UL 489, CSA Std. C22.2 No. 235
• Series/Frame: FAZ
• Product Dimensions: 4.25 in H x 3 in W x 1 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D30/1-NA-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@480/277V
• Connection : Din Rail
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508163675
• GTIN : 04015081636754
• Country of Origin : Spain
• Dimensions : 1 in x 4.25 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.5
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
