Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
FAL32100-1021

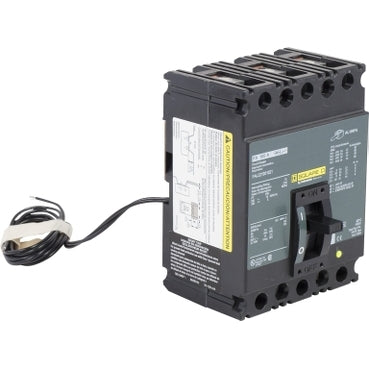

FAL32100-1021 is a 3 pole, 100 amp, 240 volt molded case circuit breaker from the Square D FAL Series. This thermal magnetic breaker is designed for reliable protection in commercial and industrial power distribution systems. The FAL32100-1021 features a unit mount design and is built to provide consistent performance in demanding electrical environments. It is suitable for use in panelboards and switchgear applications requiring a 3 pole, 100 amp, 240 volt circuit protection device.
- Part Number: FAL32100-1021
- Manufacturer: Square D
- Series: FAL
- Number of Poles: 3
- Rated Current: 100 Amps
- Rated Voltage: 240 Volts
- Interrupt Rating: 10 kAIC
- Mounting Type: Unit Mount
- Trip Unit: Thermal Magnetic
- Frame Size: 4.5 in W x 4.13 in D x 6 in H
- Connection Range: AWG 14 to AWG 1/0
Specifications
- Part Number: FAL32100-1021
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901789208
- GTIN : 00785901789208
- Dimensions : Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
- Weight : 5.23 lb
- Certification : CSA-UL LISTED
- Wire Size : AWG 14 AWG 1/0 copper)1, AWG 12 AWG 1/0 aluminium)1
